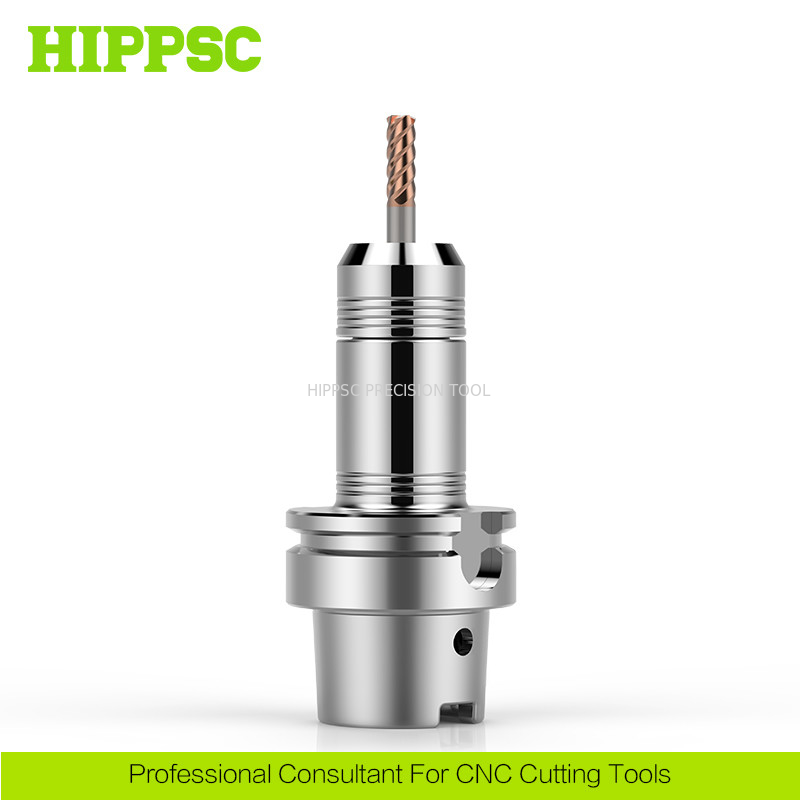

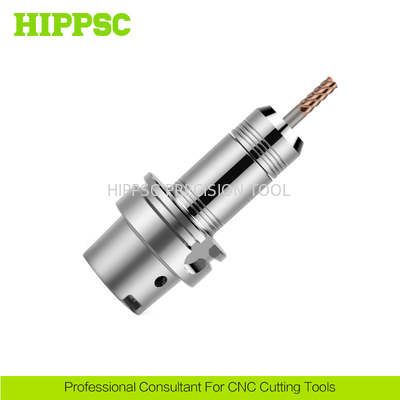

Coating Treatment Machine ER Tool Holder Wih High Speed Cutting
Ⅰ. Features And Advantages
1. Non-eccentric nuts
2. Good for finish machining.
3. Beating accuracy ≤ 0.003mm.
4. Rapid operation and tooling changing.
5. Endmilling, Drilling and Reaming Working.
6. High gripping force, prevents tools from loosing.
Ⅱ. Technical Parametes
|
Product Name |
High Speed ER Tool Holder |
|
Spindle Type |
HSK-A |
|
Clamping Range |
1mm~20mm |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
20Crnimo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Standard Items
Cat.No |
Chucking Dia |
D1 | D2 | L1 | L2 | M | Nut |
Collet |
Spanner |
| HSK63A-HGER16-70 | 2.0-10.0 | 30 | 30.5 | 44 | 70 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| HSK63A-HGER16-100 | 2.0-10.0 | 30 | 30.5 | 74 | 100 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| HSK63A-HGER16-150 | 2.0-10.0 | 30 | 30.5 | 124 | 150 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| HSK63A-HGER20-70 | 2.0-13.0 | 32 | 32.5 | 44 | 70 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| HSK63A-HGER20-100 | 2.0-13.0 | 32 | 32.5 | 74 | 100 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| HSK63A-HGER20-150 | 2.0-13.0 | 32 | 32.5 | 124 | 150 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| HSK63A-HGER25-70 | 3.0-16.0 | 40 | 40.5 | 44 | 70 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| HSK63A-HGER25-100 | 3.0-16.0 | 40 | 40.5 | 74 | 100 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| HSK63A-HGER25-150 | 3.0-16.0 | 40 | 40.5 | 124 | 150 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| HSK63A-HGER32-70 | 3.0-20.0 | 50 | 50.5 | 54 | 80 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| HSK63A-HGER32-100 | 3.0-20.0 | 50 | 50.5 | 74 | 100 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| HSK63A-HGER32-150 | 3.0-20.0 | 50 | 50.5 | 124 | 150 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| HSK100A-HGER16-100 | 2.0-10.0 | 30 | 30.5 | 71 | 100 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| HSK100A-HGER16-150 | 2.0-10.0 | 30 | 30.5 | 121 | 150 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| HSK100A-HGER20-100 | 2.0-13.0 | 32 | 32.5 | 71 | 100 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| HSK100A-HGER20-150 | 2.0-13.0 | 32 | 32.5 | 121 | 150 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| HSK100A-HGER25-100 | 3.0-16.0 | 40 | 40.5 | 71 | 100 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| HSK100A-HGER25-150 | 3.0-16.0 | 40 | 40.5 | 121 | 150 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| HSK100A-HGER32-100 | 3.0-20.0 | 50 | 50.5 | 71 | 100 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| HSK100A-HGER32-150 | 3.0-20.0 | 50 | 50.5 | 121 | 150 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
Ⅳ. Overview for HIPPSC Products
1. Torque Tap/Tapping Chuck.
2. Mirror Finishing Tool Holders.
3. Back Lock/Side Lock Tool Holders.
4. Morse Taper/Tapering Tool Holders.
5. Face Milling Adapters/Cutter And Inserts/Blades.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
8. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.
