| Shank Type: | Straight | OEM Service: | Available |
|---|---|---|---|
| Product Type: | Threaded Extension Tungsten Steel Rod | Application: | For Holding Cutter Head |
| Material: | Tungsten Steel | Name: | Tungsten Carbide Rod |
| Highlight: | cemented carbide rods,tungsten carbide round bar |
||

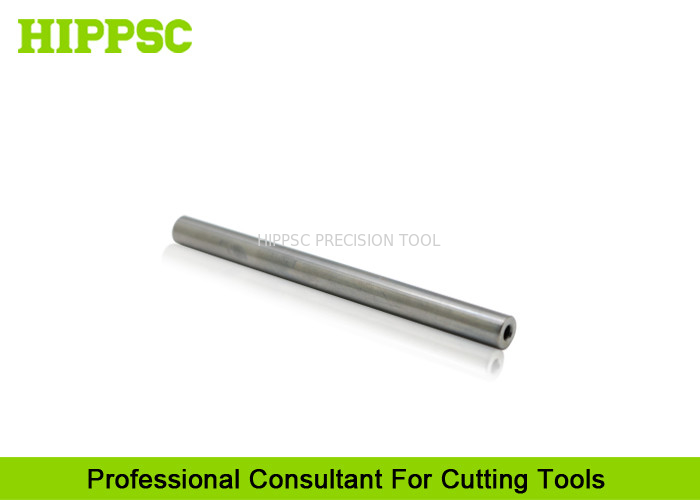

Anti Shock Tungsten Carbide Rod With Straight Shank For Extention
Ⅰ. Features
Made from 100% tungsten steel.
High rigidity and good shock resistance.
Extending cutting dept, improve surface quality.
Super precision in deep hole machining.
Suits abundant indexable boring bar/head.
Easy operation and change tool quickly, saving time and improving efficiency.
Ⅱ. Technical Parametes
|
Product Name |
Straight Shank Tungsten Steel Rod |
|
Shank type |
Straight |
|
Clamping size |
12 |
|
Extension length |
250 |
|
Contact type |
Screw bolt |
|
Product Material |
Tungsten steel |
|
Application |
Boring head, Milling and drilling cutter |
Ⅲ. Product Show
Available Standard Items
| Model Number | L | D3 | D2 | D1 | M |
| C08-M04-75 | 75 | 2 | 4.5 | 8 | M04 |
| C08-M04-105 | 105 | 2 | 4.5 | 8 | M04 |
| C10-M05-75 | 75 | 3 | 5.5 | 10 | M05 |
| C10-M05-105 | 105 | 3 | 5.5 | 10 | M05 |
| C10-M05-135 | 135 | 3 | 5.5 | 10 | M05 |
| C10-M05-165 | 165 | 3 | 5.5 | 10 | M05 |
| C10-M06-75 | 75 | 3 | 6.5 | 10 | M06 |
| C10-M06-105 | 105 | 3 | 6.5 | 10 | M06 |
| C10-M06-135 | 135 | 3 | 6.5 | 10 | M06 |
| C10-M06-165 | 165 | 3 | 6.5 | 10 | M06 |
| C12-M06-75 | 75 | 3 | 6.5 | 12 | M06 |
| C12-M06-105 | 105 | 3 | 6.5 | 12 | M06 |
| C12-M06-135 | 135 | 3 | 6.5 | 12 | M06 |
| C12-M06-165 | 165 | 3 | 6.5 | 12 | M06 |
| C12-M07-75 | 75 | 3 | 7.5 | 12 | M07 |
| C12-M07-105 | 105 | 3 | 7.5 | 12 | M07 |
| C12-M07-135 | 135 | 3 | 7.5 | 12 | M07 |
| C12-M07-165 | 165 | 3 | 7.5 | 12 | M07 |
| C16-M08-100 | 100 | 4 | 8.5 | 16 | M08 |
| C16-M08-150 | 150 | 4 | 8.5 | 16 | M08 |
| C16-M08-200 | 200 | 4 | 8.5 | 16 | M08 |
| C16-M10-100 | 100 | 4 | 10.5 | 16 | M10 |
| C16-M10-150 | 150 | 4 | 10.5 | 16 | M10 |
| C16-M10-200 | 200 | 4 | 10.5 | 16 | M10 |
| C20-M10-100 | 100 | 4 | 10.5 | 20 | M10 |
| C20-M10-150 | 150 | 4 | 10.5 | 20 | M10 |
| C20-M10-200 | 200 | 4 | 10.5 | 20 | M10 |
| C20-M10-250 | 250 | 4 | 10.5 | 20 | M10 |
| C25-M12-150 | 150 | 6 | 12.5 | 25 | M12 |
| C25-M12-200 | 200 | 6 | 12.5 | 25 | M12 |
| C25-M12-250 | 250 | 6 | 12.5 | 25 | M12 |
| C25-M12-300 | 300 | 6 | 12.5 | 25 | M12 |
| C32-M16-200 | 200 | 8 | 17 | 32 | M16 |
| C32-M16-250 | 250 | 8 | 17 | 32 | M16 |
| C32-M16-300 | 300 | 8 | 17 | 32 | M16 |
| C32-M16-350 | 350 | 8 | 17 | 32 | M16 |
| C32-M16-400 | 400 | 8 | 17 | 32 | M16 |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
