| Shank Type: | Straight | Color: | Silver White |
|---|---|---|---|
| Material: | Tungsten Steel | Application: | For Holding Cutter Head, End Milling |
| Product Type: | Tungsten Steel Replaceable Head | Advantage: | High Cost Performance Ratio Instead Of Elongated Tungsten Steel Milling Cutter |
| Highlight: | tungsten carbide round bar,solid carbide rod |
||
End Milling Replaceable Head Tungsten Steel Replaceable Head for CNC Machines
Ⅰ. Features
1. Thread connection clamping
2. High quality, sufficient stock
3. High precision, many specifications
4. Widely used in die, auto parts, aerospace and other industries
5. High cost performance ratio instead of elongated tungsten steel milling cutter
6. Suitable for processing various materials and solving processing problems
Ⅱ. Technical Parametes
|
Product Name |
Tungsten Steel Replaceable Head |
|
Shank type |
Straight |
|
Extension length |
250 |
|
Contact type |
Screw bolt |
|
Product Material |
Tungsten steel |
|
Application |
Boring head, Milling and drilling cutter |

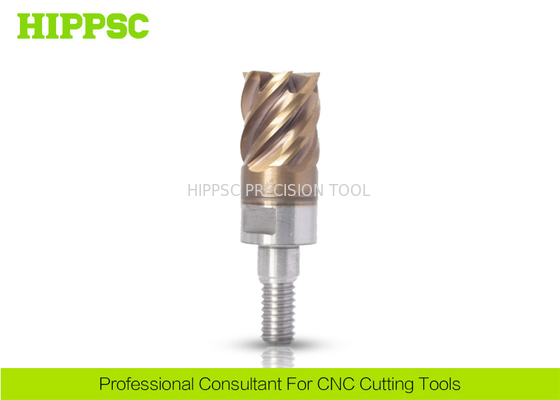

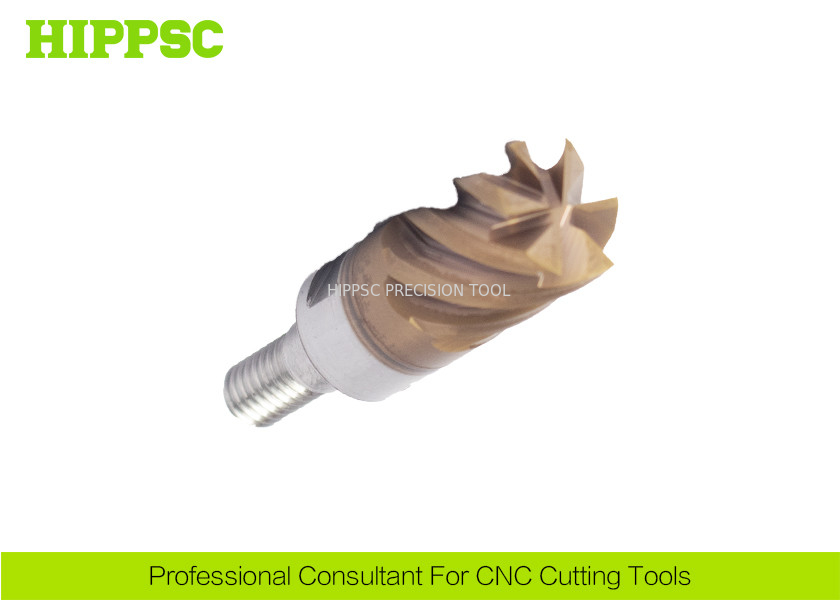

Ⅲ. Product Show
Available Standard Items
| NO. | D | Z | L1 | L2 | Db | W | M |
| SCTH-610-M06 | 10 | 6 | 10 | 24.5 | 9.5 | 8 | M06 |
| SCTH-611-M06 | 11 | 6 | 11 | 24.5 | 9.5 | 8 | M06 |
| SCTH-612-M06 | 12 | 6 | 12 | 26.5 | 11.5 | 10 | M06 |
| SCTH-613-M06 | 13 | 6 | 13 | 26.5 | 11.5 | 10 | M06 |
| SCTH-816-M08 | 16 | 8 | 16 | 31.8 | 15.4 | 13 | M08 |
| SCTH-817-M08 | 17 | 8 | 17 | 31.8 | 15.4 | 13 | M08 |
| SCTH-820-M10 | 20 | 8 | 20 | 38.8 | 19.4 | 17 | M10 |
| SCTH-821-M10 | 21 | 8 | 21 | 38.8 | 19.4 | 17 | M10 |
| SCTH-825-M12 | 25 | 8 | 25 | 44.8 | 24.4 | 22 | M12 |
| SCTH-826-M12 | 26 | 8 | 26 | 44.8 | 24.4 | 22 | M12 |
| SCTH-830-M16 | 30 | 8 | 30 | 58 | 29.4 | 27 | M16 |
| SCTH-832-M16 | 32 | 8 | 32 | 58 | 29.4 | 27 | M16 |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
