| Shank Type: | Tapered | OEM Service: | Available |
|---|---|---|---|
| Product Type: | Threaded Tungsten Extension Rod | Application: | Extension Tools Length |
| Material: | 100% Tungsten Steel | ||
| Highlight: | tungsten carbide round bar,solid carbide rod |
||

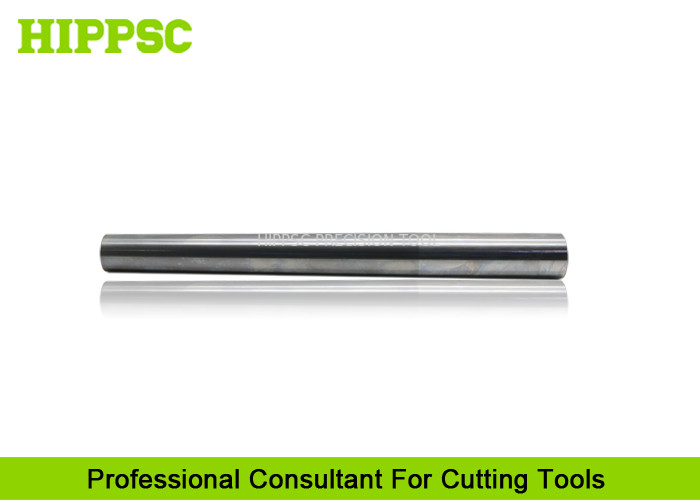

Taper Shank Tungsten Carbide Round Bar / Cemented Carbide Rods
Ⅰ. Features
Material is fully tungsten carbide steel.
Strong rigidity, good shock resistance.
Extending processing dept, improve the processing surface quality.
Super precision for deep hole machining.
Suits abundant indexable boring bar/head.
Easy operation and quick tool change, save time and improve efficiency.
Reduce interference in maching.
Ⅱ. Technical Parametes
|
Product Name |
Tungsten Steel Rod With Taper Shank |
|
Shank type |
Taper shank |
|
Clamping size |
20.8mm |
|
Extension length |
200mm |
|
Contact type |
Screw bolt |
|
Product Material |
Tungsten steel |
|
Application |
Boring head, Milling and drilling cutter |
Ⅲ. Product Show
Available Standard Items
| Model Number | L | L1 | D1 | D2 | D3 | M | a |
| C12-TD9.8-M06-75 | 75 | 50 | 9.8 | 6.5 | 12 | M06 | 2.52° |
| C12-TD9.8-M06-105 | 105 | 50 | 9.8 | 6.5 | 12 | M06 | 1.15° |
| C16-TD9.8-M06-135 | 135 | 55 | 9.8 | 6.5 | 16 | M06 | 2.22° |
| C16-TD9.8-M06-165 | 165 | 55 | 9.8 | 6.5 | 16 | M06 | 1.61° |
| C16-TD11.6-M07-100 | 100 | 55 | 11.6 | 7.5 | 16 | M07 | 2.8° |
| C16-TD11.6-M07-150 | 150 | 55 | 11.6 | 7.5 | 16 | M07 | 1.33° |
| C16-TD11.6-M07-200 | 200 | 55 | 11.6 | 7.5 | 16 | M07 | 0.87° |
| C16-TD12.8-M08-100 | 100 | 55 | 12.8 | 8.5 | 16 | M08 | 2.04° |
| C16-TD12.8-M08-150 | 150 | 55 | 12.8 | 8.5 | 16 | M08 | 0.96° |
| C20-TD15.4-M10-100 | 100 | 60 | 15.4 | 10.5 | 20 | M10 | 3.29° |
| C20-TD15.4-M10-150 | 150 | 60 | 15.4 | 10.5 | 20 | M10 | 1.46° |
| C20-TD12.8-M08-200 | 200 | 60 | 12.8 | 8.5 | 20 | M08 | 1.47° |
| C20-TD15.4-M08-100 | 100 | 60 | 15.4 | 8.5 | 20 | M08 | 3.29° |
| C20-TD15.4-M08-150 | 150 | 60 | 15.4 | 8.5 | 20 | M08 | 1.46° |
| C25-TD15.4-M10-200 | 200 | 60 | 15.4 | 10.5 | 25 | M10 | 1.96° |
| C25-TD17.8-M10-100 | 100 | 60 | 17.8 | 10.5 | 25 | M10 | 5.14° |
| C25-TD17.8-M10-150 | 150 | 60 | 17.8 | 10.5 | 25 | M10 | 2.29° |
| C25-TD17.8-M10-200 | 200 | 60 | 17.8 | 10.5 | 25 | M10 | 1.47° |
| C25-TD23-M12-150 | 150 | 60 | 23 | 12.5 | 25 | M12 | 0.64° |
| C25-TD20.8-M12-150 | 150 | 60 | 20.8 | 12.5 | 25 | M12 | 1.34° |
| C25-TD20.8-M12-200 | 200 | 60 | 20.8 | 12.5 | 25 | M12 | 0.86° |
| C25-TD20.8-M12-250 | 250 | 60 | 20.8 | 12.5 | 25 | M12 | 0.63° |
| C25-TD15.4-M08-250 | 250 | 60 | 15.4 | 8.5 | 25 | M08 | 1.45° |
| C25-TD15.4-M08-200 | 200 | 60 | 15.4 | 8.5 | 25 | M08 | 1.96° |
| C25-TD15.4-M08-300 | 300 | 60 | 15.4 | 8.5 | 25 | M08 | 1.15° |
| C32-TD15.4-M10-300 | 300 | 65 | 15.4 | 10.5 | 32 | M10 | 2.02° |
| C32-TD17.8-M10-300 | 300 | 65 | 17.8 | 10.5 | 32 | M10 | 1.73° |
| C32-TD23-M12-200 | 200 | 65 | 23 | 12.5 | 32 | M12 | 1.91° |
| C32-TD23-M12-250 | 250 | 65 | 23 | 12.5 | 32 | M12 | 1.39° |
| C32-TD23-M12-300 | 300 | 65 | 23 | 12.5 | 32 | M12 | 1.1° |
| C32-TD23-M12-350 | 350 | 65 | 23 | 12.5 | 32 | M12 | 0.9° |
| C32-TD23-M12-400 | 400 | 65 | 23 | 12.5 | 32 | M12 | 0.77° |
| C32-TD20.8-M12-250 | 250 | 65 | 20.8 | 12.5 | 32 | M12 | 1.73° |
| C32-TD28.8-M16-250 | 250 | 65 | 28.8 | 17 | 32 | M16 | 0.5° |
| C32-TD28.8-M16-300 | 300 | 65 | 28.8 | 17 | 32 | M16 | 0.39° |
| C32-TD28.8-M16-350 | 350 | 65 | 28.8 | 17 | 32 | M16 | 0.32° |
| C32-TD28.8-M16-400 | 400 | 65 | 28.8 | 17 | 32 | M16 | 0.27° |
