Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods

China Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods supplier
Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods supplier Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods supplier Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods supplier

Large Image :  Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: C25 - D20.8 - 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 50000 pcs Per Month
Contact Now
Detailed Product Description
Material: Tungsten Steel Shank Type: Stepped
OEM Service: Available Product Type: Threaded Tungsten Steel Extension Rod
Application: Holding Boring Bar And Milling Cutter
Highlight:

cemented carbide rods

,

tungsten carbide round bar

Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods



Ⅰ​. Features



  • Made from fully tungsten steel.
  • High rigidity, good shock resistance.
  • Extending processing dept, improving the surface quality.
  • Super precision in deep hole machining.
  • Suits abundant indexable boring bar/head.
  • Easy operation and quick tool change, save time and improve efficiency.
  • Reduce interference in maching.


Ⅱ. Technical Parametes ​



Product Name

Stepped Shank Tungsten Steel Rod

Shank type

Stepped

Clamp diameter

20.8mm

Extension length

200

Contact type

Screw bolt

Product Material

Tungsten steel

Application

Boring head, Milling and drilling cutter

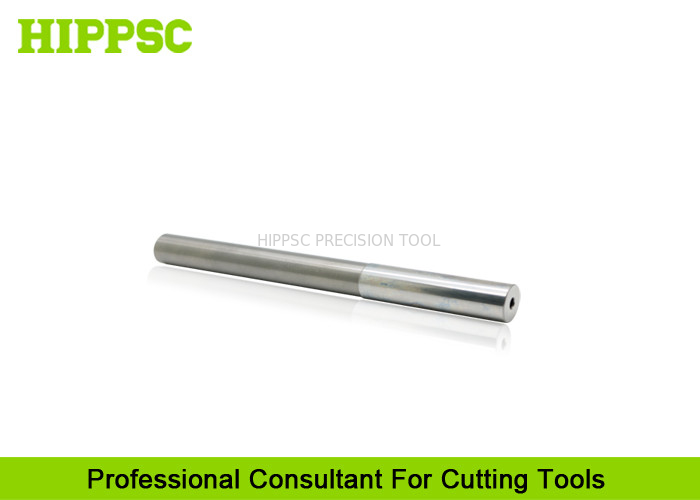

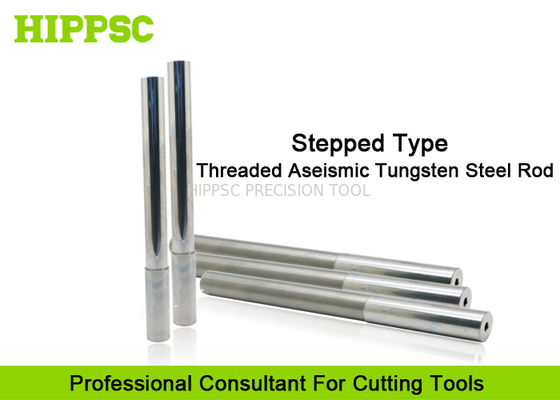

Ⅲ. Product Show





Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods

Steped Shank Tungsten Carbide Welding Rods , Solid Carbide Rods



Available Standard Items

Model Number L1 L2 D1 D2 D3 D4 M
C12-D9.8-M06-75 75 50 9.8 6.5 3 12 M06
C12-D9.8-M06-105 105 50 9.8 6.5 3 12 M06
C12-D9.8-M06-135 135 50 9.8 6.5 3 12 M06
C12-D9.8-M06-165 165 50 9.8 6.5 3 12 M06
C12-D11.6-M07-75 75 50 11.6 7.5 3 12 M07
C12-D11.6-M07-105 105 50 11.6 7.5 3 12 M07
C12-D11.6-M07-135 135 50 11.6 7.5 3 12 M07
C12-D11.6-M07-165 165 50 11.6 7.5 3 12 M07
C16-D12.8-M08-100 100 55 12.8 8.5 4 16 M08
C16-D12.8-M08-150 150 55 12.8 8.5 4 16 M08
C16-D12.8-M08-200 200 55 12.8 8.5 4 16 M08
C16-D15.4-M08-100 100 55 15.4 8.5 4 16 M08
C16-D15.4-M08-150 150 55 15.4 8.5 4 16 M08
C16-D15.4-M08-200 200 55 15.4 8.5 4 16 M08
C16-D15.4-M10-100 100 55 15.4 10.5 4 16 M10
C16-D15.4-M10-150 150 55 15.4 10.5 4 16 M10
C16-D15.4-M10-200 200 55 15.4 10.5 4 16 M10
C20-D17.8-M10-100 100 60 17.8 10.5 4 20 M10
C20-D17.8-M10-150 150 60 17.8 10.5 4 20 M10
C20-D17.8-M10-200 200 60 17.8 10.5 4 20 M10
C20-D17.8-M10-250 250 60 17.8 10.5 4 20 M10
C25-D23-M12-150 150 60 23 12.5 6 25 M12
C25-D23-M12-200 200 60 23 12.5 6 25 M12
C25-D23-M12-250 250 60 23 12.5 6 25 M12
C25-D23-M12-300 300 60 23 12.5 6 25 M12
C25-D20.8-M12-100 100 60 20.8 12.5 6 25 M12
C25-D20.8-M12-150 150 60 20.8 12.5 6 25 M12
C25-D20.8-M12-200 200 60 20.8 12.5 6 25 M12
C25-D20.8-M12-250 250 60 20.8 12.5 6 25 M12
C25-D20.8-M12-300 300 60 20.8 12.5 6 25 M12
C32-D28.8-M16-200 200 65 28.8 17 8 32 M16
C32-D28.8-M16-250 250 65 28.8 17 8 32 M16
C32-D28.8-M16-300 300 65 28.8 17 8 32 M16
C32-D28.8-M16-350 350 65 28.8 17 8 32 M16
C32-D28.8-M16-400 400 65 28.8 17 8 32 M16




Ⅳ. Products Overview


  1. Stepped Shank Tungsten Steel Rod witih screw hole.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.


Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
