Special Steel ER Tool Holder For High Speed Working And Cutting

Large Image : Special Steel ER Tool Holder For High Speed Working And Cutting

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-GER20150

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT30	OEM/ODM:	Yes
Product Type:	BT30 GER Tool Holder	Runout:	0.003mm
Machining:	Turing, Milling, Boring, Drilling, Finishing	Material:	Special Steel
Highlight:	collet tool holder , cnc lathe tool holder

Special Steel ER Tool Holder For High Speed Working And Cutting

Ⅰ. Features And Advantages

150mm Super long clamping, good for deep hole machining.
50% More torque forcer by T bolts, lock cutting tools tightly.
Excellent ring nut, reduce wind-resistance and level noise.
For high speed machining with above 30000rpm.
Suitable for lathe and machining center with 7:24 Spindle.
Work with HIPPSC GER collet with patent, high speed and accuracy.
ER collect fully touch Tool Holder internal conical surface, satisfied concentricity.
High repeat clamping accuracy.
Two sides contacting for location and locking, higher accracy than universal BT30 ER chuck.

Ⅱ. Technical Parametes

Product Name	ER Tool Hoder for high speed work
Spindle Type	BT30
Clamping Range	3~13 mm
Runout	0.003
Processing Type	High speed machining and finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

Special Steel ER Tool Holder For High Speed Working And Cutting

Standard Items

Model number	Clamp Dia.	D1	D2	L1	L2	M	Nut	Collet	Spanner
BT30-GER16-60	3.0-10.0	30	30.5	60	38	TR22*1.5	HN-GER16	ER16	GH30
BT30-GER16-75	3.0-10.0	30	30.5	75	53	TR22*1.5	HN-GER16	ER16	GH30
BT30-GER16-90	3.0-10.0	30	30.5	90	68	TR22*1.5	HN-GER16	ER16	GH30
BT30-GER16-120	3.0-10.0	30	30.5	120	98	TR22*1.5	HN-GER16	ER16	GH30
BT30-GER20-60	3.0-13.0	35	35.5	60	38	TR26*1.5	HN-GER20	ER20	GH35
BT30-GER20-75	3.0-13.0	35	35.5	75	53	TR26*1.5	HN-GER20	ER20	GH35
BT30-GER20-90	3.0-13.0	35	35.5	90	68	TR26*1.5	HN-GER20	ER20	GH35
BT30-GER20-120	3.0-13.0	35	35.5	120	98	TR26*1.5	HN-GER20	ER20	GH35
BT30-GER25-60	3.0-16.0	40	40.5	60	38	TR32*1.5	HN-GER25	ER25	GH40
BT30-GER25-75	3.0-16.0	40	40.5	75	53	TR32*1.5	HN-GER25	ER25	GH40
BT30-GER25-90	3.0-16.0	40	40.5	90	68	TR32*1.5	HN-GER25	ER25	GH40
BT30-GER25-120	3.0-16.0	40	40.5	120	98	TR32*1.5	HN-GER25	ER25	GH40
BT30-GER32-60	3.0-20.0	48	48.5	60	38	TR40*1.5	HN-GER32	ER32	GH48
BT30-GER32-75	3.0-20.0	48	48.5	75	53	TR40*1.5	HN-GER32	ER32	GH48
BT30-GER32-90	3.0-20.0	48	48.5	90	68	TR40*1.5	HN-GER32	ER32	GH48
BT30-GER32-120	3.0-20.0	48	48.5	120	98	TR40*1.5	HN-GER32	ER32	GH48

BT40-GER16-75	3.0-10.0	30	30.5	75	48	TR22*1.5	HN-GER16	ER16	GH30
BT40-GER16-90	3.0-10.0	30	30.5	90	63	TR22*1.5	HN-GER16	ER16	GH30
BT40-GER16-120	3.0-10.0	30	30.5	120	93	TR22*1.5	HN-GER16	ER16	GH30
BT40-GER16-150	3.0-10.0	30	30.5	150	123	TR22*1.5	HN-GER16	ER16	GH30
BT40-GER20-75	3.0-13.0	35	35.5	75	48	TR26*1.5	HN-GER20	ER20	GH35
BT40-GER20-90	3.0-13.0	35	35.5	90	63	TR26*1.5	HN-GER20	ER20	GH35
BT40-GER20-120	3.0-13.0	35	35.5	120	93	TR26*1.5	HN-GER20	ER20	GH35
BT40-GER20-135	3.0-13.0	35	35.5	135	108	TR26*1.5	HN-GER20	ER20	GH35

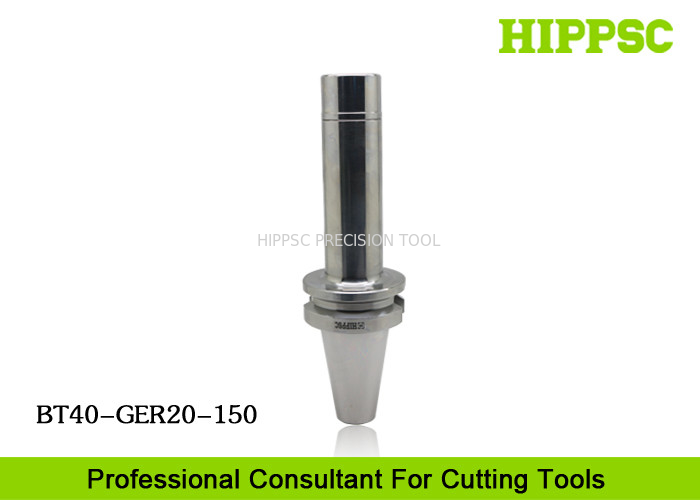

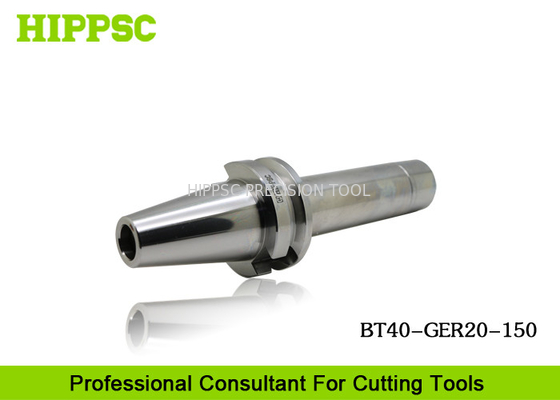

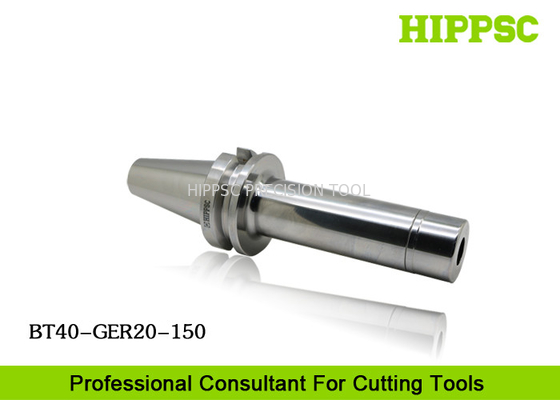

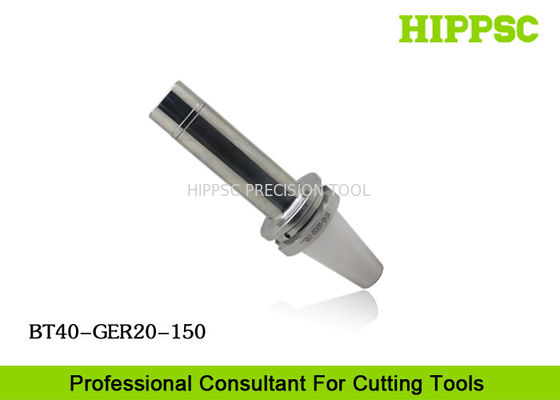

BT40-GER20-150	3.0-13.0	35	35.5	150	123	TR26*1.5	HN-GER20	ER20	GH35
BT40-GER25-75	3.0-16.0	40	40.5	75	48	TR32*1.5	HN-GER25	ER25	GH40
BT40-GER25-90	3.0-16.0	40	40.5	90	63	TR32*1.5	HN-GER25	ER25	GH40
BT40-GER25-120	3.0-16.0	40	40.5	120	93	TR32*1.5	HN-GER25	ER25	GH40
BT40-GER25-150	3.0-16.0	40	40.5	150	123	TR32*1.5	HN-GER25	ER25	GH40
BT40-GER32-75	3.0-20.0	48	48.5	75	48	TR40*1.5	HN-GER32	ER32	GH48
BT40-GER32-90	3.0-20.0	48	48.5	90	63	TR40*1.5	HN-GER32	ER32	GH48
BT40-GER32-120	3.0-20.0	48	48.5	120	93	TR40*1.5	HN-GER32	ER32	GH48
BT40-GER32-150	3.0-20.0	48	48.5	150	123	TR40*1.5	HN-GER32	ER32	GH48

BT50-GER16-105	3.0-10.0	30	30.5	105	65	TR22*1.5	HN-GER16	ER16	GH30
BT50-GER16-135	3.0-10.0	30	30.5	135	97	TR22*1.5	HN-GER16	ER16	GH30
BT50-GER16-165	3.0-10.0	30	30.5	165	127	TR22*1.5	HN-GER16	ER16	GH30
BT50-GER20-105	3.0-13.0	35	35.5	105	65	TR26*1.5	HN-GER20	ER20	GH35
BT50-GER20-135	3.0-13.0	35	35.5	135	97	TR26*1.5	HN-GER20	ER20	GH35
BT50-GER20-165	3.0-13.0	35	35.5	165	127	TR26*1.5	HN-GER20	ER20	GH35
BT50-GER25-105	3.0-16.0	40	40.5	105	65	TR32*1.5	HN-GER25	ER25	GH40
BT50-GER25-135	3.0-16.0	40	40.5	135	97	TR32*1.5	HN-GER25	ER25	GH40
BT50-GER25-165	3.0-16.0	40	40.5	165	127	TR32*1.5	HN-GER25	ER25	GH40
BT50-GER25-200	3.0-16.0	40	40.5	200	162	TR32*1.5	HN-GER25	ER25	GH40
BT50-GER32-105	3.0-20.0	48	48.5	105	65	TR40*1.5	HN-GER32	ER32	GH48
BT50-GER32-135	3.0-20.0	48	48.5	135	97	TR40*1.5	HN-GER32	ER32	GH48
BT50-GER32-165	3.0-20.0	48	48.5	165	127	TR40*1.5	HN-GER32	ER32	GH48
BT50-GER32-200	3.0-20.0	48	48.5	200	162	TR40*1.5	HN-GER32	ER32	GH48

GH Spanner

Type of spanner	Model Number	A	L	Weight(KG)
G-SPANNER	GH19	19.5	120	0.24
	GH25	25	135	0.3
	GH27	27.1	135	0.35
	GH30	30	150	0.7
	GH33	33	160	0.75
	GH35	35	170	0.11
	GH40	40	180	0.29
	GH48	48	210	0.39
	GH55	55	300	0.38

Ⅳ. Overview for HIPPSC Products

1. BT30 d 120mm High Speed GER Tool Holder with G2.5 25000RPM.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Specific Equipment and Set Gauges To Control Products Quality.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
