Durable Precision Shrink Fit Holder For Deep Hole Machining With Special Steel

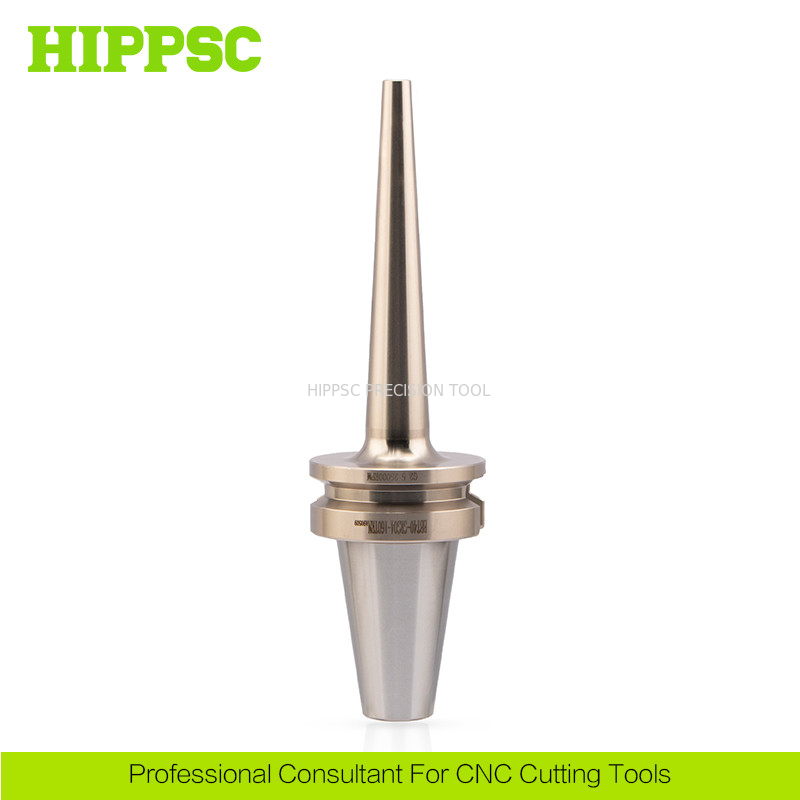

Large Image : Durable Precision Shrink Fit Holder For Deep Hole Machining With Special Steel

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-SRS03-60TRN

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~20 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT-SRS	Material:	Special Steel
Taper:	7:24	Product Type:	Heat Shinking
Heat Time:	4~7 Seconds	Clamp Range:	4~32
Application:	Hole Processing And Milling	Hardness:	HRC48~52
Highlight:	shrink fit tool holders , adjustable tool holder

Durable Precision Silver Shrink Fit Holder For Deep Hole Machining With Special Steel

Ⅰ. Features And Advantages

1. High regidity and stability.

2. Runout <0.003mm at 4X D.

3. Durable, increase tools life and save cost.

4. The toolholder clamp tools directly without collets or nuts.
5. High repeat accuracy, 2000 times more clamping tools.

6. High surface quality, finishing machinng.

7. Sintering of thermal expansion equipment, simple and fast clamping, anti-interference, strong rigidity

Ⅱ. Technical Parametes

Product Name	Heat Shrinking Tool Holder
Spindle Type	BT
Clamping Range	4~32mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	Special steel
Hardness	HRC48~52°

Ⅲ. Product Introduction

Durable Precision Shrink Fit Holder For Deep Hole Machining With Special Steel

Standard Items

Type	D1	D2	D3	L1	L2	N	A
BT30-SRS03-60TRN	3	8	11	60	－	－	3°
BT30-SRS04-60TRN	4	10	13	60	－	－	3°
BT30-SRS06-80TRN	6	12	17	80	－	－	3°
BT30-SRS08-80TRN	8	14	19	80	40	10	3°
BT30-SRS10-80TRN	10	16	21	80	46	10	3°
BT30-SRS12-80TRN	12	18	23	80	50	10	3°
BT40-SRS04-90TRN	4	10	16	90	－	－	3°
BT40-SRS04-120TRN	4	10	19	120	－	－	3°
BT40-SRS04-160TRN	4	10	23	160	－	－	3°
BT40-SRS06-90TRN	6	12	18	90	－	－	3°
BT40-SRS06-120TRN	6	12	21	120	－	－	3°
BT40-SRS06-160TRN	6	12	25	160	－	－	3°
BT40-SRS08-90TRN	8	14	20	90	40	10	3°
BT40-SRS08-120TRN	8	14	23	120	40	10	3°
BT40-SRS08-160TRN	8	14	27	160	40	10	3°
BT40-SRS10-90TRN	10	16	22	90	46	10	3°
BT40-SRS10-120TRN	10	16	25	120	46	10	3°
BT40-SRS10-160TRN	10	16	29	160	46	10	3°
BT40-SRS12-90TRN	12	18	24	90	50	10	3°
BT40-SRS12-120TRN	12	18	27	120	50	10	3°
BT40-SRS12-160TRN	12	18	31	160	50	10	3°

Durable Precision Shrink Fit Holder For Deep Hole Machining With Special Steel

Heat Shrinking Machine

Ⅳ. Overview for HIPPSC Products

BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters.
Torque Floating Tap/Tapping Chuck and Collet.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Durable Precision Shrink Fit Holder For Deep Hole Machining With Special Steel

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
