Metal Spindle Heat Shrink Tool Holder High Precision 4~32mm Clamping Range

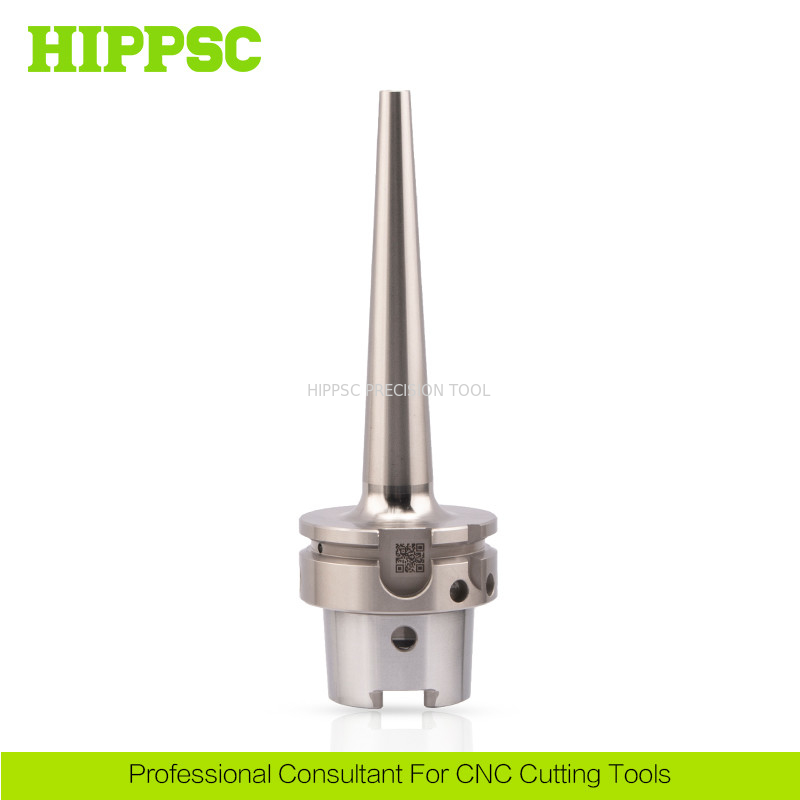

Large Image : Metal Spindle Heat Shrink Tool Holder High Precision 4~32mm Clamping Range

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HSK32A-SRS04-60TN

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	HSK	Taper:	7:24
Color:	Silver White	Product Name:	Shrink Fit Holder
Precision:	High Precision 0.03mm	Transport:	By Sea; By Air; By Train/Truck.
Highlight:	shrink fit tool holders , adjustable tool holder

High Precision CNC Machine Spindle Shrink Fit Holder BT Tool Holder

Ⅰ. Features And Advantages

1. High regidity and stability.

2. Runout <0.003mm at 4X D.

3. High surface quality, finishing machinng.

4. Durable, increase tools life and save cost.

5. The toolholder clamp tools directly without collets or nuts.
6. High repeat accuracy, 2000 times more clamping tools.

Ⅱ. Technical Parametes

Product Name	Heat Shrinking Tool Holder
Spindle Type	HSK
Clamping Range	4~32mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	Special steel
Hardness	HRC48~52°

Ⅲ. Product Introduction

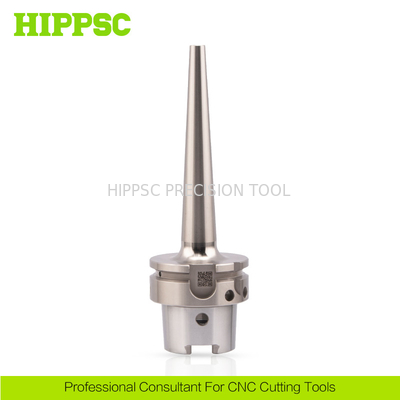

Metal Spindle Heat Shrink Tool Holder High Precision 4~32mm Clamping Range

Standard Items

Type	D1	D2	D3	L1	L2	N	A
HSK32A-SRS04-60TN	4	10	14	60	－	－	3°
HSK32A-SRS06-70TN	6	12	17	70	－	－	3°
HSK32A-SRS08-70TN	8	14	19	70	40	10	3°
HSK32A-SRS10-80TN	10	16	22	80	46	10	3°
HSK40A-SRS04-60TRN	4	10	14	60	－	－	3°
HSK40A-SRS06-80TRN	6	12	18	80	－	－	3°
HSK40A-SRS08-80TRN	8	14	20	80	40	10	3°
HSK40A-SRS10-80TRN	10	16	22	80	46	10	3°
HSK40A-SRS12-60TRN	12	18	22	60	50	10	3°
HSK40A-SRS12-90TRN	12	18	25	90	50	10	3°
HSK50A-SRS04-60TRN	4	10	13	60	－	－	3°
HSK50A-SRS06-80TRN	6	12	17	80	－	－	3°
HSK50A-SRS08-80TRN	8	14	29	80	40	10	3°
HSK50A-SRS10-85TRN	10	16	22	85	46	10	3°
HSK50A-SRS12-90TRN	12	18	24	90	50	10	3°
HSK63A-SRS04-80TRN	4	10	15	80	－	－	3°
HSK63A-SRS04-120TRN	4	10	19	120	－	－	3°
HSK63A-SRS04-160TRN	4	10	24	160	－	－	3°
HSK63A-SRS06-80TRN	6	12	17	80	－	－	3°
HSK63A-SRS06-120TRN	6	12	21	120	－	－	3°
HSK63A-SRS06-160TRN	6	12	26	160	－	－	3°
HSK63A-SRS08-80TRN	8	14	19	80	40	10	3°
HSK63A-SRS08-120TRN	8	14	23	120	40	10	3°
HSK63A-SRS08-160TRN	8	14	28	160	40	10	3°
HSK63A-SRS10-85TRN	10	16	22	85	46	10	3°
HSK63A-SRS10-120TRN	10	16	25	120	46	10	3°
HSK63A-SRS10-160TRN	10	16	30	160	46	10	3°
HSK63A-SRS12-90TRN	12	18	24	90	50	10	3°
HSK63A-SRS12-120TRN	12	18	27	120	50	10	3°
HSK63A-SRS12-160TRN	12	18	32	160	50	10	3°

Ⅳ. Overview for HIPPSC Products

Face Milling Adapters.
Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holders.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

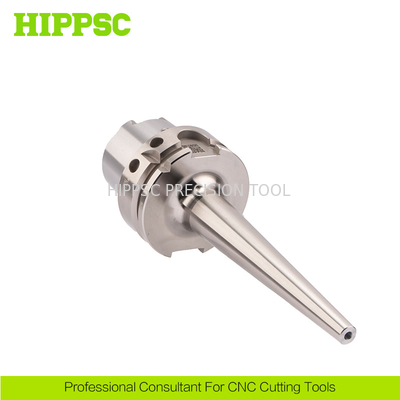

Metal Spindle Heat Shrink Tool Holder High Precision 4~32mm Clamping Range

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
