Millling Machining Cutting Shrink Tool Holder 0.003mm Runout For Deep Hole Process

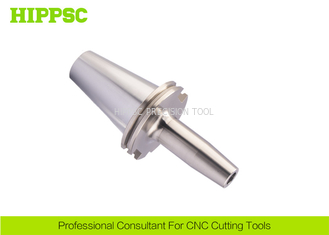

Large Image : Millling Machining Cutting Shrink Tool Holder 0.003mm Runout For Deep Hole Process

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SK50-SR06-80TRN

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Hardness:	HRC48~52	Runout:	0.003mm
Product Type:	Heat Shinking	Product Name:	Shrink Fit Holder
Clamping:	4~32mm	Application:	Finishing Maching And Deep Hole Processing
Highlight:	adjustable tool holder , heat shrink tool holder

Millling Machining Cutting Holder Shrink Tool Holder For Deep Hole Process

Ⅰ. Features And Advantages

1.Repeated clamping more than 2000 times
2.Sintering of thermal expansion equipment, simple and fast clampin
3.Anti-interference design is rigid, suitable for deep cavity processing,

4.Surface special treatment can effectively prevent carbon deposition.
5.High precision, abundant specifications, high quality and sufficient stock

6.Sintering of thermal expansion equipment, simple and fast clamping

Ⅱ. Technical Parametes

Product Name	Heat Shrinking Tool Holder
Spindle Type	SK
Clamping Range	4~32mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

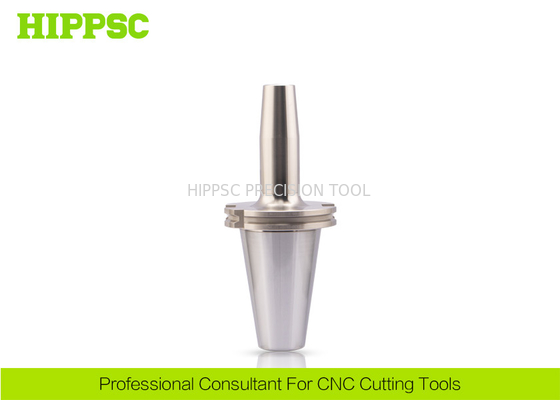

Millling Machining Cutting Shrink Tool Holder 0.003mm Runout For Deep Hole Process

Standard Items

Type	D1	D2	D3	L1	L2	N	A
SK40-SR04-80TRN	4	15	20	80	-	-	4.5°
SK40-SR06-80TRN	6	21	27	80	-	-	4.5°
SK40-SR06-120TRN	6	21	27	120	-	-	4.5°
SK40-SR06-160TRN	6	21	32	160	-	-	4.5°
SK40-SR08-80TRN	8	21	27	80	40	10	4.5°
SK40-SR08-120TRN	8	21	27	120	40	10	4.5°
SK40-SR08-160TRN	8	21	32	160	40	10	4.5°
SK40-SR10-80TRN	10	24	32	80	46	10	4.5°
SK40-SR10-120TRN	10	24	32	120	46	10	4.5°
SK40-SR10-160TRN	10	24	34	160	46	10	4.5°
SK40-SR12-80TRN	12	24	32	80	50	10	4.5°
SK40-SR12-120TRN	12	24	32	120	50	10	4.5°
SK40-SR12-160TRN	12	24	34	160	50	10	4.5°
SK40-SR16-80TRN	16	27	34	80	52	10	4.5°
SK40-SR16-120TRN	16	27	34	120	52	10	4.5°
SK40-SR16-160TRN	16	27	34	160	52	10	4.5°
SK40-SR20-80TRN	20	33	42	80	54	10	4.5°
SK40-SR20-120TRN	20	33	42	120	54	10	4.5°
SK40-SR20-160TRN	20	33	42	160	54	10	4.5°
SK40-SR25-100TRN	25	44	52.5	100	62	10	4.5°
SK40-SR25-160TRN	25	44	52.5	160	62	10	4.5°
SK40-SR32-100TRN	32	44	52.5	100	67	10	4.5°
SK40-SR32-160TRN	32	44	52.5	160	67	10	4.5°
SK50-SR06-80TRN	6	21	27	80	－	－	4.5°
SK50-SR06-120TRN	6	21	27	120	－	－	4.5°
SK50-SR06-160TRN	6	21	32	160	－	－	4.5°
SK50-SR08-80TRN	8	21	27	80	40	10	4.5°
SK50-SR08-120TRN	8	21	27	120	40	10	4.5°
SK50-SR08-160TRN	8	21	32	160	40	10	4.5°
SK50-SR10-80TRN	10	24	32	80	46	10	4.5°
SK50-SR10-120TRN	10	24	32	120	46	10	4.5°
SK50-SR10-160TRN	10	24	34	160	46	10	4.5°
SK50-SR12-80TRN	12	24	32	80	50	10	4.5°
SK50-SR12-120TRN	12	24	32	120	50	10	4.5°
SK50-SR12-160TRN	12	24	34	160	50	10	4.5°
SK50-SR16-80TRN	16	27	34	80	52	10	4.5°
SK50-SR16-120TRN	16	27	34	120	52	10	4.5°
SK50-SR16-160TRN	16	27	34	160	52	10	4.5°
SK50-SR20-80TRN	20	33	42	80	54	10	4.5°
SK50-SR20-120TRN	20	33	42	120	54	10	4.5°
SK50-SR20-160TRN	20	33	42	160	54	10	4.5°
SK50-SR25-100TRN	25	44	52.5	100	62	10	4.5°
SK50-SR25-160TRN	25	44	52.5	160	62	10	4.5°
SK50-SR32-100TRN	32	44	52.5	100	67	10	4.5°
SK50-SR32-160TRN	32	44	52.5	160	67	10	4.5°

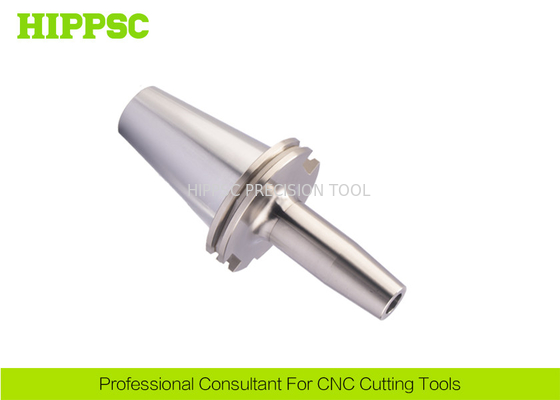

Millling Machining Cutting Shrink Tool Holder 0.003mm Runout For Deep Hole Process

Heat Shrinking Machine

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Torque Floating Tap/Tapping Chuck and Collet.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Millling Machining Cutting Shrink Tool Holder 0.003mm Runout For Deep Hole Process

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
