20CrNiMo Precision ER Tool Holder HSK For Electronics and Automotive

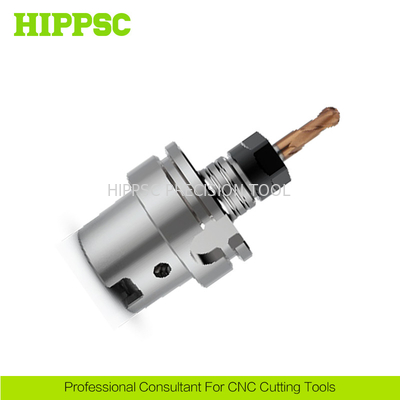

Large Image : 20CrNiMo Precision ER Tool Holder HSK For Electronics and Automotive

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HSK63A-ER16-70

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	1；10	Color:	Silver
Spindle Type:	HSK-ER	Hardness:	HRC58~60
Applicaton:	Hole Processing And Milling	Material:	20CrNiMo (Quality Alloy Steel)
Highlight:	drill Tool Holder , collet tool holder

20CrNiMo Precision ER Tool Holder HSK For Electronics and Automotive

Ⅰ. Features And Advantages

1. Non-eccentric nuts

2. High regidity and stability.

3. Nuts preset dynamic balance

4. Durable, increase tools life and save cost.

5. High surface quality, finishing machinng.

6. Up up to true running and repeat accuracy 0.003 mm, Increase the tool’s service life

Ⅱ. Technical Parametes

Product Name	ER Collet Chuck
Spindle Type	HSK-ER
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20CrNiMo (Quality Alloy Steel)
Hardness	HRC58~60°

Ⅲ. Product Introduction

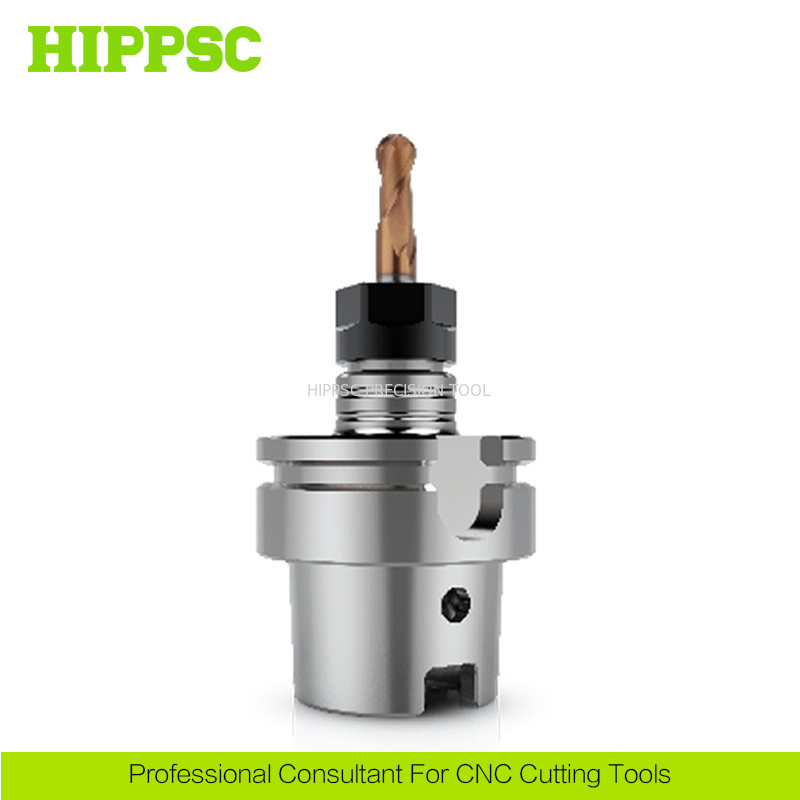

20CrNiMo Precision ER Tool Holder HSK For Electronics and Automotive

Standard Items

Type	holding diameter	D1	D2	L1	L2	Collet	Spanner	Nut
HSK63A-ER16-70	3.0-10.0	28	28	70	44	ER16	HS-ER16A	HN-ER16A
HSK63A-ER16-100	3.0-10.0	28	28	100	74	ER16	HS-ER16A	HN-ER16A
HSK63A-ER16-150	3.0-10.0	28	28	150	124	ER16	HS-ER16A	HN-ER16A
HSK63A-ER20-70	3.0-13.0	34	34	70	44	ER20	HS-ER20A	HN-ER20A
HSK63A-ER20-100	3.0-13.0	34	34	100	74	ER20	HS-ER20A	HN-ER20A
HSK63A-ER20-150	3.0-13.0	34	34	150	124	ER20	HS-ER20A	HN-ER20A
HSK63A-ER25-70	3.0-16.0	40	40	70	44	ER25	HS-ER25UM	HN-ER25UM
HSK63A-ER25-100	3.0-16.0	40	40	100	74	ER25	HS-ER25UM	HN-ER25UM
HSK63A-ER25-150	3.0-16.0	40	40	150	124	ER25	HS-ER25UM	HN-ER25UM
HSK63A-ER32-70	3.0-20.0	48	48	70	44	ER32	HS-ER32UM	HN-ER32UM
HSK63A-ER32-100	3.0-20.0	48	48	100	74	ER32	HS-ER32UM	HN-ER32UM
HSK63A-ER32-150	3.0-20.0	48	48	150	124	ER32	HS-ER32UM	HN-ER32UM
HSK100A-ER16-80	3.0-10.0	28	28	80	51	ER16	HS-ER16A	HN-ER16A
HSK100A-ER16-100	3.0-10.0	28	28	100	71	ER16	HS-ER16A	HN-ER16A
HSK100A-ER16-150	3.0-10.0	28	28	150	121	ER16	HS-ER16A	HN-ER16A
HSK100A-ER20-80	3.0-13.0	34	34	80	51	ER20	HS-ER20A	HN-ER20A
HSK100A-ER20-100	3.0-13.0	34	34	100	71	ER20	HS-ER20A	HN-ER20A
HSK100A-ER20-150	3.0-13.0	34	34	150	121	ER20	HS-ER20A	HN-ER20A
HSK100A-ER25-80	3.0-16.0	40	40	80	51	ER25	HS-ER25UM	HN-ER25UM
HSK100A-ER25-100	3.0-16.0	40	40	100	71	ER25	HS-ER25UM	HN-ER25UM
HSK100A-ER25-150	3.0-16.0	40	40	150	121	ER25	HS-ER25UM	HN-ER25UM
HSK100A-ER32-80	3.0-20.0	50	50	80	51	ER32	HS-ER32A	HN-ER32UM
HSK100A-ER32-100	3.0-20.0	50	50	100	71	ER32	HS-ER32A	HN-ER32UM
HSK100A-ER32-150	3.0-20.0	50	50	150	121	ER32	HS-ER32A	HN-ER32UM
HSK100A-ER40-80	6.0-26.0	63	58	80	51	ER40	HS-ER40A	HN-ER40UM
HSK100A-ER40-100	6.0-26.0	63	58	100	71	ER40	HS-ER40A	HN-ER40UM
HSK100A-ER40-150	6.0-26.0	63	58	150	121	ER40	HS-ER40A	HN-ER40UM

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
HSK40E-HGER16-70	2.0-10.0	30	30.5	50	70	TR22*1.5	HN-HGER16	ER16	GH30
HSK40E-HGER20-70	2.0-13.0	32	32.5	50	70	TR26*1.5	HN-HGER20	ER20	GH32
HSK40E-HGER25-70	3.0-16.0	40	38.5	50	70	TR32*1.5	HN-HGER25	ER25	GH40
HSK50E-HGER16-70	3.0-10.0	30	30.5	44	70	TR22*1.5	HN-HGER16	ER16	GH30
HSK50E-HGER20-70	3.0-13.0	32	32.5	44	70	TR26*1.5	HN-HGER20	ER20	GH32
HSK50E-HGER25-70	3.0-16.0	40	40.5	44	70	TR32*1.5	HN-HGER25	ER25	GH40
HSK50E-HGER32-75	3.0-20.0	50	48.5	49	75	TR40*1.5	HN-HGER32	ER32	GH50

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Torque Floating Tap/Tapping Chuck and Collet.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

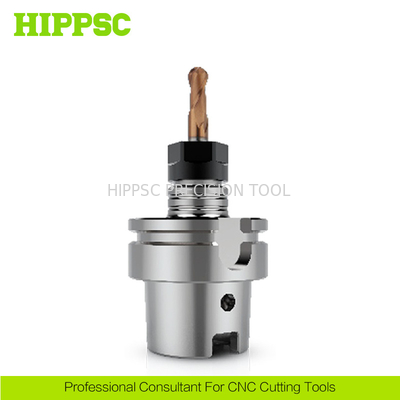

20CrNiMo Precision ER Tool Holder HSK For Electronics and Automotive

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
