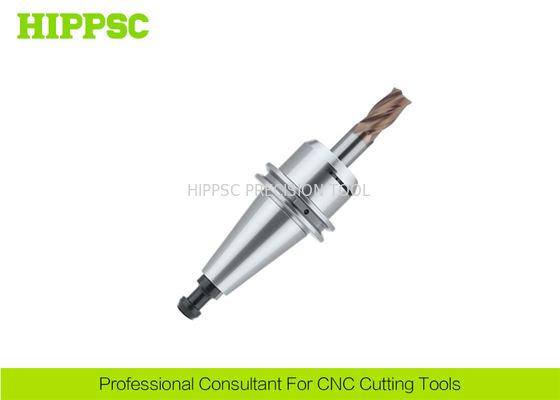

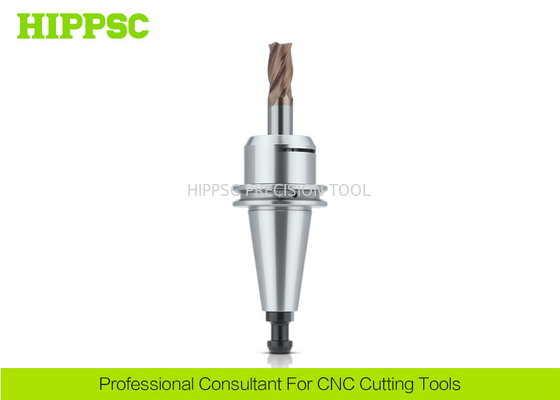

AT3 Type ER Tool Holder High Speed Carving / Milling Tool Handle 20Crnimo Material

Large Image : AT3 Type ER Tool Holder High Speed Carving / Milling Tool Handle 20Crnimo Material

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ISO20-ER16-35MS

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	50000 pcs Per Month

Contact Now

Detailed Product Description

Type:	7:24	Chucking Dia:	1~16mm
Material:	20Crnimo	Hardness:	HRC48~52
Spindle Type:	ISO-ER-MS	Product Name:	High Speed MINI ER Collet Chuck
Highlight:	cnc lathe tool holder , drill Tool Holder

AT3 Type ER Tool Holder High Speed Carving / Milling Tool Handle 20Crnimo Material

Ⅰ. Features And Advantages

Fast cutting, better chip removal.
Wide machining range, for both metal and nonmetal.
Good blade positioning for producing maximum continuous cutting processing.
Fit for all kinds of cutting processing.
MS full round nuts, special for large diameter cutters
Dynamic Balance G2.5, 25000 RPM

Ⅱ. Technical Parametes
AT3 Type ER Tool Holder High Speed Carving / Milling Tool Handle 20Crnimo Material
Ⅲ. Product Introduction

Cat.NO	Chucking Dia	D	L1	L2	M	Nut	Collet	Spanner	Spanner	Lock knife
ISO20-ER16-35MS	3.0-10.0	22	35	27	M19*1.0	HN-ER16MS	ER16	ISO20	HS-ER16MS	ISO20
ISO20-ER20-35MS	3.0-13.0	28	35	27	M24*1.0	HN-ER20MS	ER20	ISO20	HS-ER20MS	ISO20
ISO25-ER16-35MS	3.0-10.0	22	35	27	M19*1.0	HN-ER16MS	ER16	ISO25	HS-ER16MS	ISO25
ISO25-ER20-35MS	3.0-13.0	28	35	27	M24*1.0	HN-ER20MS	ER20	ISO25	HS-ER20MS	ISO25
ISO25-ER25-35MS	3.0-16.0	35	35	27	M30*1.0	HN-ER25MS	ER25	ISO25	HS-ER25MS	ISO25
ISO30-ER16-60MS	3.0-10.0	22	60	44.1	M19*1.0	HN-ER16MS	ER16	--	HS-ER16MS	ISO30
ISO30-ER20-60MS	3.0-13.0	28	60	44.1	M24*1.0	HN-ER20MS	ER20	--	HS-ER20MS	ISO30
ISO30-ER25-60MS	3.0-16.0	35	60	44.1	M30*1.0	HN-ER25MS	ER25	--	HS-ER25MS	ISO30

Ⅳ. Overview for HIPPSC Product

1. Torque Floating Tap/Tapping Chuck and Collet.
2. Torque/ Round/Circle Spanners/Wrenches/Keys.
3. Edge finder/Tool Holder Tightening Fixture/Table.
4. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
5. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor.
8. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.
AT3 Type ER Tool Holder High Speed Carving / Milling Tool Handle 20Crnimo Material

Ⅷ. Manufacturing and Sales Service

Manufacturing with Professional and Precise Equipments Under Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
