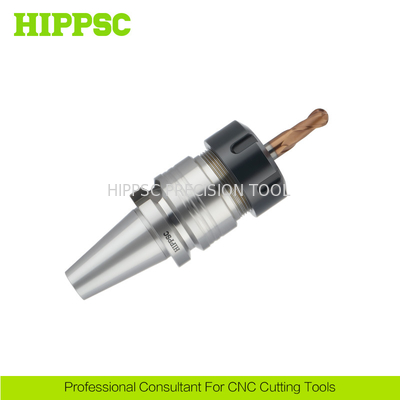

Floating Tool Holder BT ER Precision Durable For Milling and Drilling

Large Image : Floating Tool Holder BT ER Precision Durable For Milling and Drilling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-ER16-70

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~20 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT-ER	Taper:	7:24
Product Name:	ER Collet Chuck	Nut:	Non Eccentric Nut
Application:	Hole Processing And Milling	Material:	20CrNiMo (Quality Alloy Steel)
Highlight:	drill Tool Holder , collet tool holder

Floating Tool Holder BT ER Precision Durable For Milling and Drilling

Ⅰ. Features And Advantages

1. Non eccentric nut

2. High quality, sufficient stock

3. Come out high surface quality
4. High precision, various specifications

5.Save time and cost, expand tools work life

6.The nut is automatically corrected by non-eccentricity,and preset dynamic balance

Ⅱ. Technical Parametes

Product Name	ER Tool Holder
Spindle Type	BT-ER
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20CrNiMo
Hardness	HRC48~52°

Ⅲ. Product Introduction

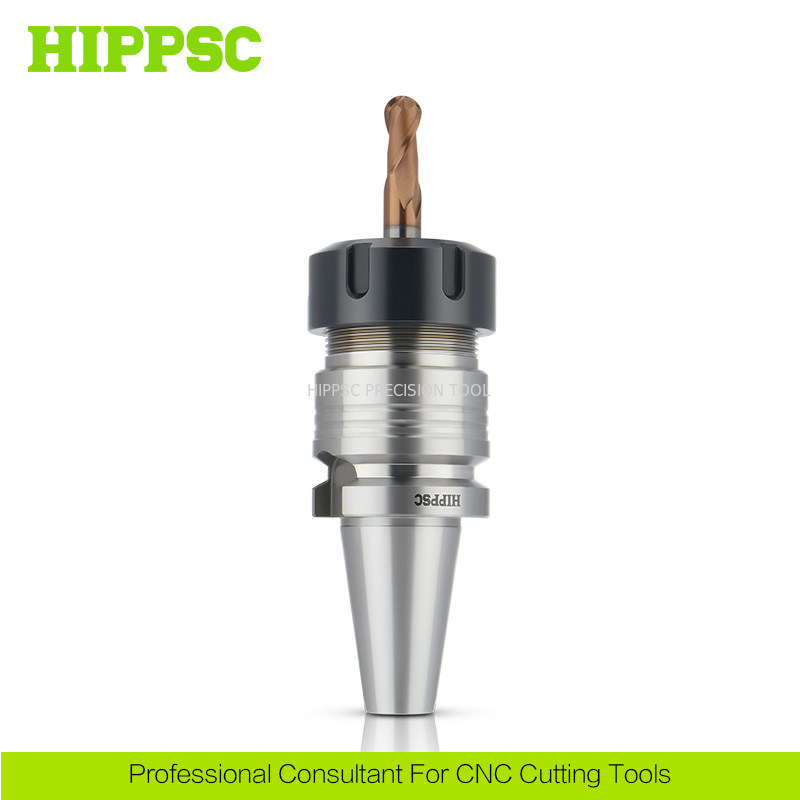

Floating Tool Holder BT ER Precision Durable For Milling and Drilling

Standard Items

Cat.No	Chucking Dia	D1	D2	L1	L2	Nut	Collet	Spanner
BT30-ER16-70	3.0-10.0	28	28	70	48	HN-ER16A	ER16	HS-ER16A
BT30-ER16-100	3.0-10.0	28	28	100	78	HN-ER16A	ER16	HS-ER16A
BT30-ER20-70	3.0-13.0	34	34	70	48	HN-ER20A	ER20	HS-ER20A
BT30-ER20-100	3.0-13.0	34	34	100	78	HN-ER20A	ER20	HS-ER20A
BT30-ER25-70	3.0-16.0	40	40	70	48	HN-ER25UM	ER25	HS-ER25UM
BT30-ER25-100	3.0-16.0	40	40	100	78	HN-ER25UM	ER25	HS-ER25UM
BT30-ER32-70	3.0-20.0	48	48	70	48	HN-ER32UM	ER32	HS-ER32UM
BT30-ER32-100	3.0-20.0	48	48	100	78	HN-ER32UM	ER32	HS-ER32UM
BT40-ER16-70	3.0-10.0	28	28	70	43	HN-ER16A	ER16	HS-ER16A
BT40-ER16-100	3.0-10.0	28	28	100	73	HN-ER16A	ER16	HS-ER16A
BT40-ER16-150	3.0-10.0	28	28	150	123	HN-ER16A	ER16	HS-ER16A
BT40-ER20-70	3.0-13.0	34	34	70	43	HN-ER20A	ER20	HS-ER20A
BT40-ER20-100	3.0-13.0	34	34	100	73	HN-ER20A	ER20	HS-ER20A
BT40-ER20-150	3.0-13.0	34	34	150	123	HN-ER20A	ER20	HS-ER20A
BT40-ER25-70	3.0-16.0	40	40	70	43	HN-ER25UM	ER25	HS-ER25UM
BT40-ER25-100	3.0-16.0	40	40	100	73	HN-ER25UM	ER25	HS-ER25UM
BT40-ER25-150	3.0-16.0	40	40	150	123	HN-ER25UM	ER25	HS-ER25UM
BT40-ER32-70	3.0-20.0	48	48	70	43	HN-ER32UM	ER32	HS-ER32UM
BT40-ER32-100	3.0-20.0	48	48	100	73	HN-ER32UM	ER32	HS-ER32UM
BT40-ER32-150	3.0-20.0	48	48	150	123	HN-ER32UM	ER32	HS-ER32UM
BT40-ER40-100	6.0-26.0	58	58	100	73	HN-ER40UM	ER40	HS-ER40UM
BT40-ER40-150	6.0-26.0	58	58	150	123	HN-ER40UM	ER40	HS-ER40UM
BT50-ER16-100	3.0-10.0	28	28	100	62	HN-ER16A	ER16	HS-ER16A
BT50-ER16-150	3.0-10.0	28	28	150	112	HN-ER16A	ER16	HS-ER16A
BT50-ER20-100	3.0-13.0	34	34	100	62	HN-ER20A	ER20	HS-ER20A
BT50-ER20-150	3.0-13.0	34	34	150	112	HN-ER20A	ER20	HS-ER20A
BT50-ER25-100	3.0-16.0	40	40	100	62	HN-ER25UM	ER25	HS-ER25UM
BT50-ER25-150	3.0-16.0	40	40	150	112	HN-ER25UM	ER25	HS-ER25UM
BT50-ER32-100	3.0-20.0	48	48	100	62	HN-ER32UM	ER32	HS-ER32UM
BT50-ER32-150	3.0-20.0	48	48	150	112	HN-ER32UM	ER32	HS-ER32UM
BT50-ER40-100	6.0-26.0	58	58	100	62	HN-ER40UM	ER40	HS-ER40UM
BT50-ER40-150	6.0-26.0	58	58	150	112	HN-ER40UM	ER40	HS-ER40UM

Ⅳ. Overview for HIPPSC Products

Face Milling Adapters.
Back Lock/Side Lock Tool Holders.
Torque Floating Tap/Tapping Chuck and Collet.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Floating Tool Holder BT ER Precision Durable For Milling and Drilling

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
