High Precision CNC Lathe Machine Cutting Tool Holder With Coating Treatment

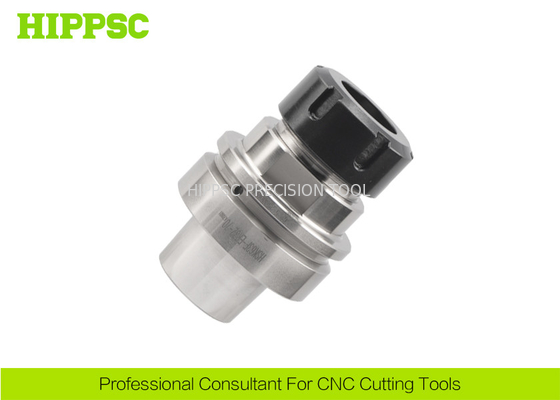

Large Image : High Precision CNC Lathe Machine Cutting Tool Holder With Coating Treatment

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HSK63F-ER16-70

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Taper Tolerance:	AT3	Spindle Type:	HSK-F
Color:	Silver White	Coating:	Coating Treatment
Transport:	By Sea; By Air; By Train/Truck.	Feature:	Single Side 4 Degree Cylinder, Clamp With Large Clamping Force
Highlight:	cnc lathe tool holder , drill Tool Holder

High Precision CNC Lathe Tool Holder ER Tool Holder With High Speed Cutting

Ⅰ. Features And Advantages

Non eccentric nut
High speed, low running noise
Easy installation, save work time and cost
Suitable for using on engraving and milling machinin
High precision, various specifications, high quality and sufficient stock
The nut is automatically corrected by non-eccentricity,and preset dynamic balance

Ⅱ. Technical Parametes

Product Name	ER Tool Holder
Spindle Type	HSK
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	High speed and precision machining.
Product Material	20Crnimo
Hardness	HRC48~52°

Ⅲ. Product Introduction

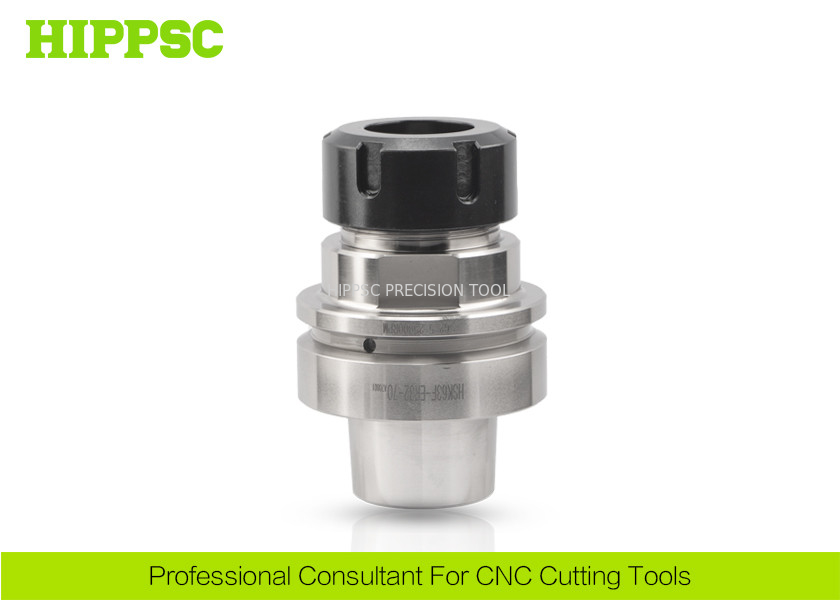

High Precision CNC Lathe Machine Cutting Tool Holder With Coating Treatment

Type	Clamping	D1	D2	L1	L2	Collet	Spanner	Nut
HSK63F-ER16-70	3.0-10.0	28	28	70	44	ER16	HS-ER16A	HN-ER16A
HSK63F-ER20-70	3.0-13.0	34	34	70	44	ER20	HS-ER20A	HN-ER20A
HSK63F-ER25-70	3.0-16.0	40	40	70	44	ER25	HS-ER25UM	HN-ER25UM
HSK63F-ER32-70	3.0-20.0	48	48	70	44	ER32	HS-ER32UM	HN-ER32UM

ER Nu

Type of Nuts		Model No.	D	L	M	Spanner
ER NUT	A	HN-ER11A	19	11.5	M14*0.75	ER11A
		HN-ER16A	28	17	M22*1.5	ER16A
		HN-ER20A	34	19	M25*1.5	ER20A
	M	HN-ER8M	12	10.8	M10*0.75	ER8M
		HN-ER11M	16	12	M13*0.75	ER11M
		HN-ER16M	22	18	M19*1.0	ER16M
		HN-ER20M	28	19	M24*1.0	ER20M
		HN-ER25M	35	20	M30*1.0	ER25M
	UM	HN-ER25UM	42	20	M32*1.5	ER25UM
		HN-ER32UM	50	23	M40*1.5	ER32UM
		HN-ER40UM	63	26	M50*1.5	ER40UM
		HN-ER50UM	78	35.3	M64*2.0	ER50UM

Ⅳ. Overview for HIPPSC Products

1.floating/Tapping Chuck and Collet

2.Torque/ Round/Circle Spanners/Wrenches/Keys.

3.ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
4.Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
5.Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
6.Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
7.Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

8.BT/BBT/SK/CAT/HSK/ISO/NT Spindle Type Tool Holder/Shank/Arbor

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
