CNC Machine Spindle High Precision Shrink Fit Holder BT Tool Holder

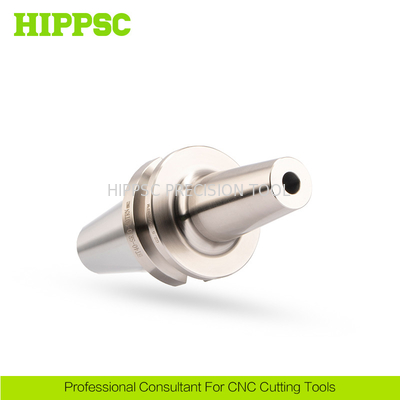

Large Image : CNC Machine Spindle High Precision Shrink Fit Holder BT Tool Holder

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-SR06-80TRN

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT-SR	Product Name:	Shrink Fit Holder
Taper:	AT3	Precision:	High Precision
Color:	Silver	Transport:	By Sea; By Air; By Train/Truck.
Highlight:	shrink fit tool holders , adjustable tool holder

CNC Machine Spindle High Precision Shrink Fit Holder BT Tool Holder

Ⅰ. Features And Advantages

1. High regidity and stability.

2. Runout <0.003mm at 4X D.

3. Durable, increase tools life and save cost.

4. The toolholder clamp tools directly without collets or nuts.
5. High repeat accuracy, 2000 times more clamping tools.

6. High surface quality, finishing machinng.

Ⅱ. Technical Parametes

Product Name	Heat Shrinking Tool Holder
Spindle Type	BT
Clamping Range	4~32mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	Special steel
Hardness	HRC48~52°

Ⅲ. Product Introduction

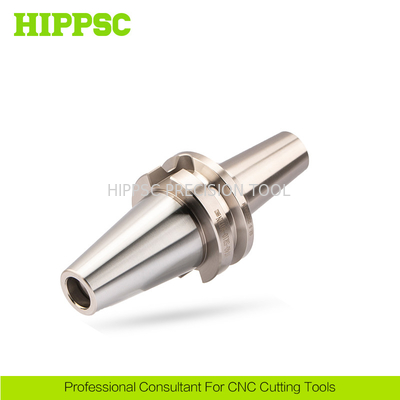

CNC Machine Spindle High Precision Shrink Fit Holder BT Tool Holder

Standard Items

Type	D1	D2	D3	L1	L2	N	A
BT30-SR04-60TRN	4	15	20	60	－	-	4.5°
BT30-SR06-80TRN	6	21	27	80	－	-	4.5°
BT30-SR08-80TRN	8	21	27	80	40	10	4.5°
BT30-SR10-80TRN	10	24	32	80	46	10	4.5°
BT30-SR12-80TRN	12	24	32	80	50	10	4.5°
BT30-SR16-80TRN	16	27	34	80	52	10	4.5°
BT40-SR04-90TRN	4	15	20	90	－	－	4.5°
BT40-SR06-90TRN	6	21	27	90	－	－	4.5°
BT40-SR06-120TRN	6	21	27	120	－	－	4.5°
BT40-SR06-160TRN	6	21	32	160	－	－	4.5°
BT40-SR08-90TRN	8	21	27	90	40	10	4.5°
BT40-SR08-120TRN	8	21	27	120	40	10	4.5°
BT40-SR08-160TRN	8	21	32	160	40	10	4.5°
BT40-SR10-90TRN	10	24	32	90	46	10	4.5°
BT40-SR10-120TRN	10	24	32	120	46	10	4.5°
BT40-SR10-160TRN	10	24	34	160	46	10	4.5°
BT40-SR12-90TRN	12	24	32	90	50	10	4.5°
BT40-SR12-120TRN	12	24	32	120	50	10	4.5°
BT40-SR12-160TRN	12	24	34	160	50	10	4.5°
BT40-SR16-90TRN	16	27	34	90	52	10	4.5°
BT40-SR16-120TRN	16	27	34	120	52	10	4.5°
BT40-SR16-160TRN	16	27	34	160	52	10	4.5°
BT40-SR20-90TRN	20	33	42	90	54	10	4.5°
BT40-SR20-120TRN	20	33	42	120	54	10	4.5°
BT40-SR20-160TRN	20	33	42	160	54	10	4.5°
BT40-SR25-100TRN	25	44	52.5	100	62	10	4.5°
BT40-SR25-160TRN	25	44	52.5	160	62	10	4.5°
BT40-SR32-100TRN	32	44	52.5	100	67	10	4.5°
BT40-SR32-160TRN	32	44	52.5	160	67	10	4.5°
BT50-SR06-100TRN	6	21	27	100	－	－	4.5°
BT50-SR06-160TRN	6	21	32	160	－	－	4.5°
BT50-SR08-100TRN	8	21	27	100	40	10	4.5°
BT50-SR08-160TRN	8	21	32	160	40	10	4.5°
BT50-SR10-100TRN	10	24	32	100	46	10	4.5°
BT50-SR10-160TRN	10	24	34	160	46	10	4.5°
BT50-SR12-100TRN	12	24	32	100	50	10	4.5°
BT50-SR12-160TRN	12	24	34	160	50	10	4.5°
BT50-SR16-100TRN	16	27	34	100	52	10	4.5°
BT50-SR16-160TRN	16	27	34	160	52	10	4.5°
BT50-SR20-100TRN	20	33	42	100	54	10	4.5°
BT50-SR20-160TRN	20	33	42	160	54	10	4.5°
BT50-SR25-100TRN	25	44	52.5	100	62	10	4.5°
BT50-SR25-160TRN	25	44	52.5	160	62	10	4.5°
BT50-SR32-100TRN	32	44	52.5	100	67	10	4.5°
BT50-SR32-160TRN	32	44	52.5	160	67	10	4.5°

Ⅳ. Overview for HIPPSC Products

BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

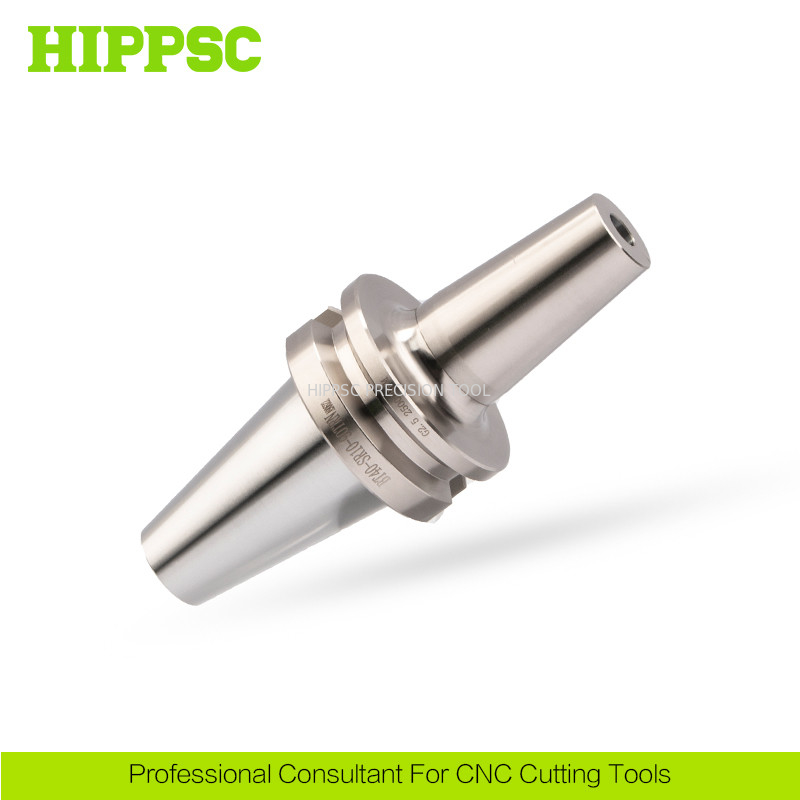

CNC Machine Spindle High Precision Shrink Fit Holder BT Tool Holder

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
