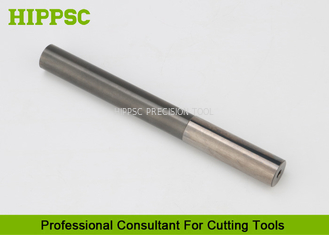

Steped Shank Tungsten Carbide Welding Rods With High Precision Grade

: Large Image : Steped Shank Tungsten Carbide Welding Rods With High Precision Grade

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HWA08-M04-A25-75

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~15 days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Material:	Tungsten Steel	Shank Type:	Stepped
OEM Service:	Available	Product Type:	Threaded Tungsten Steel Extension Rod
Application:	Holding Boring Bar And Milling Cutter

Steped Shank Tungsten Carbide Welding Rods With High Precision Grade

Ⅰ. Features

Made from fully tungsten steel.
High rigidity, good shock resistance.
Extending processing dept, improving the surface quality.
Super precision in deep hole machining.
Suits abundant indexable boring bar/head.
Easy operation and quick tool change, save time and improve efficiency.
Reduce interference in maching.

Ⅱ. Technical Parametes

Product Name	Stepped Shank Tungsten Steel Rod
Shank type	Stepped
Clamp diameter	7.80 mm
Extension length	75
Contact type	Screw bolt
Product Material	Tungsten steel
Application	Boring head, Milling and drilling cutter

Ⅲ. Product Show

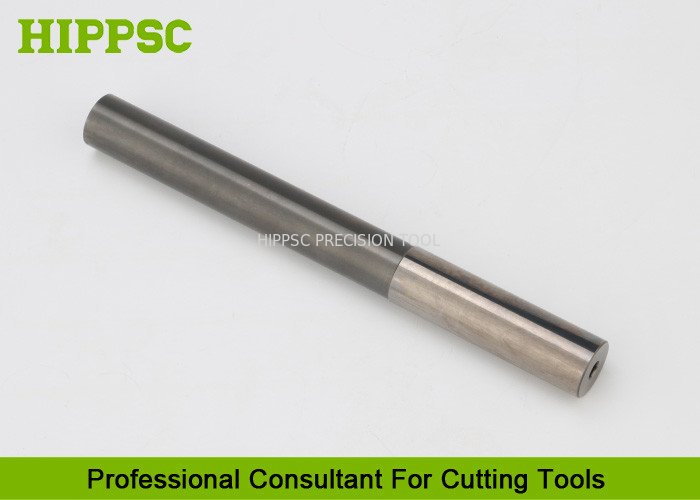

Steped Shank Tungsten Carbide Welding Rods With High Precision Grade

Available Standard Items

Model Number	L1	L2	D1	D2	D3	D4	M
HWA08-M04-A25-75	75	50	7.8	4.5	2	8	M04
HWA08-M04-A50-100	100	50	7.8	4.5	2	8	M04
HWA10-M05-A25-75	75	50	9.8	5.5	3	10	M05
HWA10-M05-A50-100	100	50	9.8	5.5	3	10	M05
HWA10-M05-A75-125	125	50	9.8	5.5	3	10	M05
HWA10-M05-A100-150	150	50	9.8	5.5	3	10	M05
HWA10-M06-A25-75	75	50	9.8	6.5	3	10	M06
HWA10-M06-A50-100	100	50	9.8	6.5	3	10	M06
HWA10-M06-A75-125	125	50	9.8	6.5	3	10	M06
HWA10-M06-A100-150	150	50	9.8	6.5	3	10	M06
HWA12-M06-A25-75	75	50	11.6	6.5	3	12	M06
HWA12-M06-A50-100	100	50	11.6	6.5	3	12	M06
HWA12-M06-A75-125	125	50	11.6	6.5	3	12	M06
HWA12-M06-A100-150	150	50	11.6	6.5	3	12	M06
HWA16-M08-A45-100	100	55	15.4	8.5	4	16	M08
HWA16-M08-A95-150	150	55	15.4	8.5	4	16	M08
HWA16-M08-A145-200	200	55	15.4	8.5	4	16	M08
HWA20-M10-A90-150	150	60	19	10.5	4	20	M10
HWA20-M10-A140-200	200	60	19	10.5	4	20	M10
HWA20-M10-A190-250	250	60	19	10.5	4	20	M10
HWA25-M12-A90-150	150	60	24	12.5	6	25	M12
HWA25-M12-A140-200	200	60	24	12.5	6	25	M12
HWA25-M12-A190-250	250	60	24	12.5	6	25	M12
HWA25-M12-A240-300	300	60	24	12.5	6	25	M12
HWA32-M16-A135-200	200	65	31	17	8	32	M16
HWA32-M16-A185-250	250	65	31	17	8	32	M16
HWA32-M16-A235-300	300	65	31	17	8	32	M16
HWA32-M16-A285-350	350	65	31	17	8	32	M16
HWA32-M16-A335-400	400	65	31	17	8	32	M16

Ⅳ. Products Overview

Stepped Shank Tungsten Steel Rod witih screw hole.
Hydro Expansion Tool holder of BT/SK/HSK.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock and Mirror Finishing Toolholders.
Morse Tap AdapterTools Holder.
Torque Tap/Tapping Chuck.
ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
CNC Indexable Cutting Tools.
Rapid Changing CNC Tool Bits.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
Strict and Careful Inspection Before Delivering Goods to Our customers .
Use Gauges For Examing Accuracy and Technical Factors.
Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

High Accuracy Equipments and Technology, Experienced Workers.
Custom Made Service, Professional suggestions.
Customer can find any products relating CNC Cutting here.
Warranty 12 Months, Free Repairing Service.
Best Service, Considerate and Sincere.
