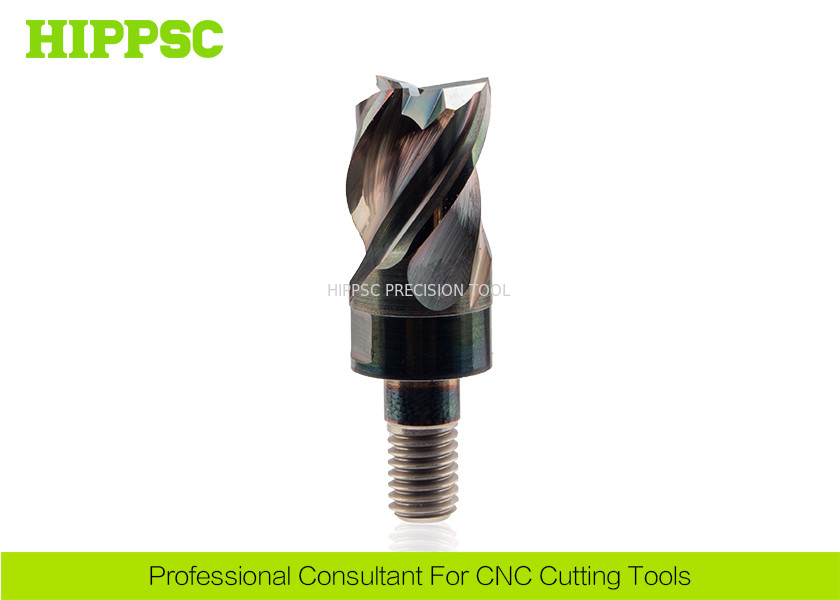

Sintered Tungsten Steel Rod Tungsten Steel Replaceable Head SCRN Straight Shank

Large Image : Sintered Tungsten Steel Rod Tungsten Steel Replaceable Head SCRN Straight Shank

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	SCRN-61005-M06

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	50000 pcs Per Month

Contact Now

Detailed Product Description

Shank Type:	Straight	OEM Service:	Available
Product Type:	Threaded Extension Tungsten Steel Rod	Material:	Tungsten Steel
Usage:	Milling	Appearance:	Coating Treatment
Highlight:	cemented carbide rods , tungsten carbide round bar

Sintered Tungsten Steel Rod Tungsten Steel Replaceable Head SCRN SCRN Shank

Ⅰ. Features

1. Made from fully tungsten steel.

2. High rigidity and good shock resistance.

3. Extending cutting dept, improve the processing surface quality.

4. Super precision in deep hole machining.

5. Suits abundant indexable boring bar/head.

6. Easy operation and change tool quickly, saving time and improving efficiency.

Ⅱ. Technical Parametes

Product Name	Straight Shank Tungsten Steel Rod
Shank type	Straight
Clamping size	12
Extension length	250
Contact type	Screw bolt
Product Material	Tungsten steel
Application	Boring head, Milling and drilling cutter

Ⅲ. Product Show

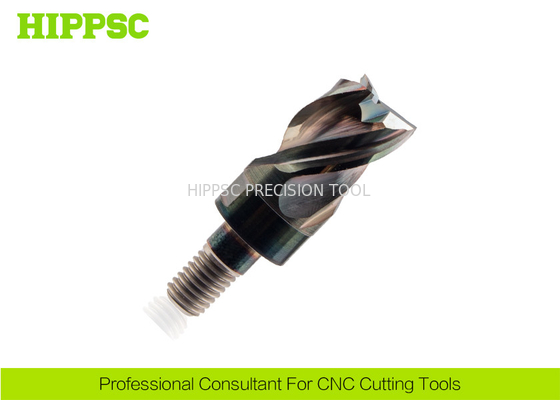

Sintered Tungsten Steel Rod Tungsten Steel Replaceable Head SCRN Straight Shank

Available Standard Items

Type	D	R	Z	L1	L2	Db	W	M
SCRN-61005-M06	10	0.5	6	10	24.5	9.5	8	M06
SCRN-61010-M06	10	1	6	10	24.5	9.5	8	M06
SCRN-61105-M06	11	0.5	6	11	24.5	9.5	8	M06
SCRN-61110-M06	11	1	6	11	24.5	9.5	8	M06
SCRN-61205-M06	12	0.5	6	12	26.5	11.5	10	M06
SCRN-61210-M06	12	1	6	12	26.5	11.5	10	M06
SCRN-61305-M06	13	0.5	6	13	26.5	11.5	10	M06
SCRN-61310-M06	13	1	6	13	26.5	11.5	10	M06
SCRN-81605-M08	16	0.5	8	16	31.8	15.4	13	M08
SCRN-81610-M08	16	1	8	16	31.8	15.4	13	M08
SCRN-81705-M08	17	0.5	8	17	31.8	15.4	13	M08
SCRN-81710-M08	17	1	8	17	31.8	15.4	13	M08
SCRN-82005-M10	20	0.5	8	20	38.8	19.4	17	M10
SCRN-82010-M10	20	1	8	20	38.8	19.4	17	M10
SCRN-82105-M10	21	0.5	8	21	38.8	19.4	17	M10
SCRN-82110-M10	21	1	8	21	38.8	19.4	17	M10
SCRN-82505-M12	25	0.5	8	25	44.8	24.4	22	M12
SCRN-82510-M12	25	1	8	25	44.8	24.4	22	M12
SCRN-82605-M12	26	0.5	8	26	44.8	24.4	22	M12
SCRN-82610-M12	26	1	8	26	44.8	24.4	22	M12
SCRN-83005-M16	30	0.5	8	30	58	29.4	27	M16
SCRN-83010-M16	30	1	8	30	58	29.4	27	M16
SCRN-83205-M16	32	0.5	8	32	58	29.4	27	M16
SCRN-83210-M16	32	1	8	32	58	29.4	27	M16
