Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | SK-HGER | Sample: | YES |
|---|---|---|---|
| Balance: | Available | Material: | 20Crnimo |
| Product Type: | HGER High Speed ER Collet Chuck | Size: | SK40-HGER16-75, SK50-HGER16-105 Etc. |
| Highlight: | cnc lathe tool holder,drill Tool Holder |
||

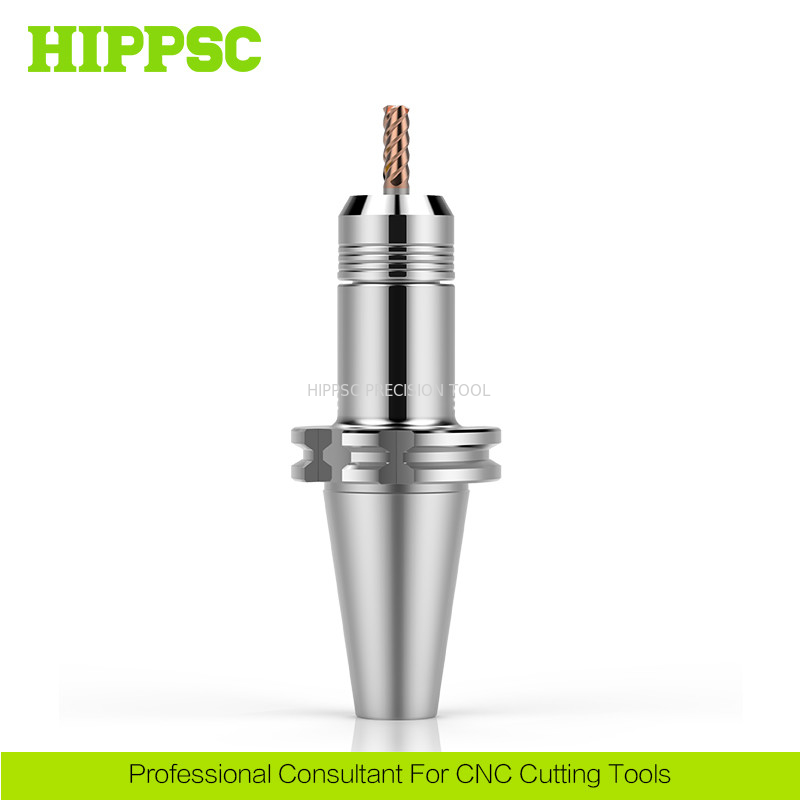

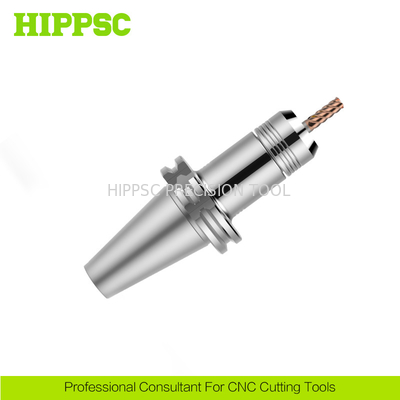

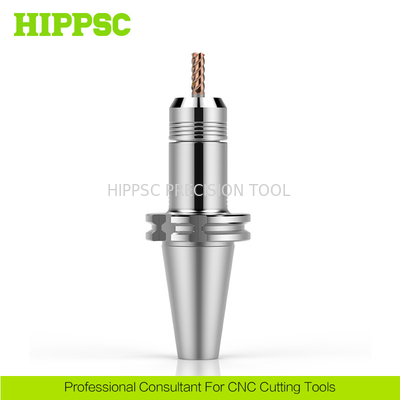

AT3 Taper CNC Lathe Tool Holder Collet Tool Holder For Electronics Automotive
Ⅰ. Features And Advantages
1. Good for finish machining.
2. Beating accuracy ≤ 0.003mm.
3. Low noise, low wind resistance
4. Non-eccentric balanced full circle
5. Rapid operation and tooling changing
6. T-shaped screw design, torsion increased by 50%, avoid tool drop
Ⅱ. Technical Parametes
| Product Name | HGER High Speed ER Collet Chuck |
| Taper | 7:24 |
| Hardness | HRC58~60 |
| Clamping Dia | 1~32mm |
| Runout | 0.003mm |
Ⅲ. Product Introduction
Standard Items
Cat.No |
Chuck Dia | D1 | D2 | L1 | L2 | M | Nut |
collet |
Spanner |
| SK40-HGER16-75 | 2.0-10.0 | 30 | 30.5 | 55.9 | 75 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK40-HGER16-90 | 2.0-10.0 | 30 | 30.5 | 70.9 | 90 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK40-HGER16-150 | 2.0-10.0 | 30 | 30.5 | 130.9 | 150 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK40-HGER20-75 | 2.0-13.0 | 32 | 32.5 | 55.9 | 75 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK40-HGER20-90 | 2.0-13.0 | 32 | 32.5 | 70.9 | 90 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK40-HGER20-150 | 2.0-13.0 | 32 | 32.5 | 130.9 | 150 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK40-HGER25-75 | 3.0-16.0 | 40 | 40.5 | 55.9 | 75 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK40-HGER25-90 | 3.0-16.0 | 40 | 40.5 | 70.9 | 90 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK40-HGER25-150 | 3.0-16.0 | 40 | 40.5 | 130.9 | 150 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK40-HGER32-75 | 3.0-20.0 | 50 | 50.5 | 55.9 | 75 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| SK40-HGER32-90 | 3.0-20.0 | 50 | 50.5 | 70.9 | 90 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| SK40-HGER32-150 | 3.0-20.0 | 50 | 50.5 | 130.9 | 150 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| SK50-HGER16-105 | 3.0-10.0 | 30 | 30.5 | 85.9 | 105 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK50-HGER16-135 | 3.0-10.0 | 30 | 30.5 | 115.9 | 135 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK50-HGER16-165 | 3.0-10.0 | 30 | 30.5 | 145.9 | 165 | TR22*1.5 | HN-HGER16 | ER16 | GH30 |
| SK50-HGER20-105 | 3.0-13.0 | 32 | 32.5 | 85.9 | 105 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK50-HGER20-135 | 3.0-13.0 | 32 | 32.5 | 115.9 | 135 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK50-HGER20-165 | 3.0-13.0 | 32 | 32.5 | 145.9 | 165 | TR26*1.5 | HN-HGER20 | ER20 | GH32 |
| SK50-HGER25-105 | 3.0-16.0 | 40 | 40.5 | 85.9 | 105 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK50-HGER25-135 | 3.0-16.0 | 40 | 40.5 | 115.9 | 135 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK50-HGER25-165 | 3.0-16.0 | 40 | 40.5 | 145.9 | 165 | TR32*1.5 | HN-HGER25 | ER25 | GH40 |
| SK50-HGER32-105 | 3.0-20.0 | 50 | 50.5 | 85.9 | 105 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| SK50-HGER32-135 | 3.0-20.0 | 50 | 50.5 | 115.9 | 135 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
| SK50-HGER32-165 | 3.0-20.0 | 50 | 50.5 | 145.9 | 165 | TR40*1.5 | HN-HGER32 | ER32 | GH50 |
Ⅳ. Overview for HIPPSC Products
1. Back Lock/Side Lock Tool Holders.
2. Morse Taper/Tapering Tool Holders.
3. Face Milling Adapters/Cutter And Inserts/Blades.
4. Threaded/Screw-on/Thread Screw Tool Holders.
5. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
6. BT50 With16mm Diameter Hydraulic Tool Holder with L 140mm.
7. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
8. Enough Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer's demand.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag. Slushing oil.
Plastic Box. Adhesive Tape.
Carton Box. Packing Belt.
Ⅶ. Warehouse
1. Quick response and On-time dispatchment, Fast Lead time.
2. Products Must be Inspected Several Times Before Sending To Customer.
3. High Standard Equipments and Gauges For Examing Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Professional Equipments, Special Technology, Experienced Workers.
2. Supplying OEM&ODM , Custom Made, Professional suggestion and Consultation.
3. One Station Service For CNC Cutting Tools Using.
