| Spindle Type: | BT-C | Runout: | 0.005mm |
|---|---|---|---|
| Inventory: | In Stock | Appearance: | Coating Treatment |
| Product Type: | Power Tool Holder | Machining Type: | Heavy Cutting And Semi-Precision Finishing |
| Highlight: | boring bar tool holder,turning tool holders |
||

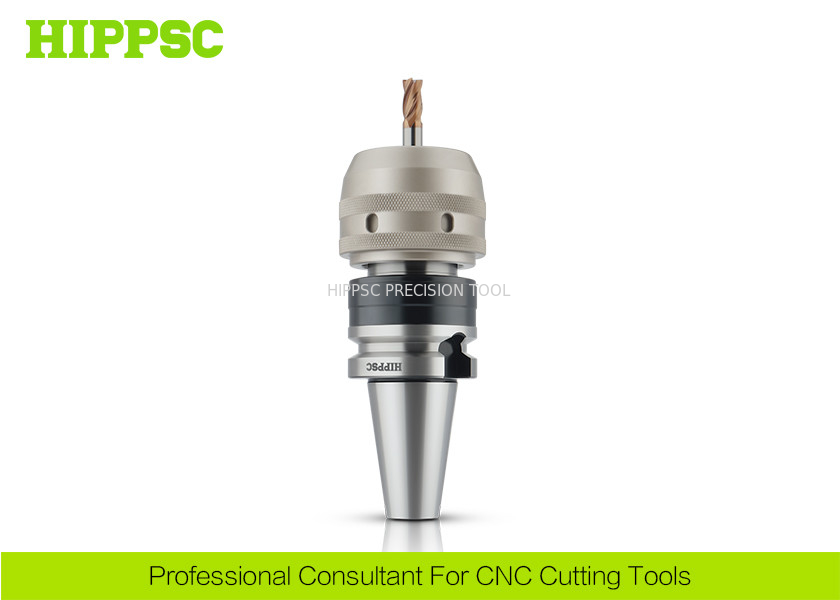

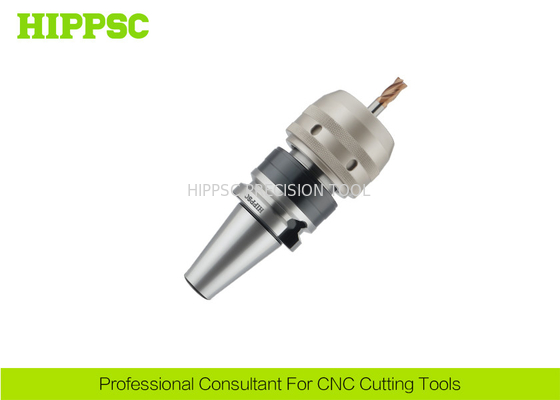

0.005mm Runout Power Tool Holder CNC Milling Cutters Special Steel Material
Ⅰ. Features And Advantages
1. Internal oil groove improves tool holder's rigidity well.
2. Suitable for heavy duty maching, rough machining.
3. With straight shank collet, hook wrench as accessory.
4. High precision, many specifications, high quality, sufficient stock
5. Ultra-cryogenic treatment to eliminate retained austenite and deformation
6. More quill rollers than other products, and higher Gripping force, stop cutter from dropping.
Ⅱ. Technical Parametes
|
Product Name |
Power Tool Holder |
|
Spindle Type |
BT |
|
Clamping Range |
4~42mm |
|
Runout |
0.005mm |
|
Processing Type |
Rough and semi-rough machining |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
| Model No. | D1 | D2 | L1 | L2 |
| BT30-C20-90 | 20 | 55 | 90 | 70 |
| BT30-C25-90 | 25 | 58 | 90 | 70 |
| BT30-C32-105 | 32 | 68 | 105 | 85 |
| BT40-C20-90 | 20 | 55 | 90 | 65 |
| BT40-C25-90 | 25 | 58 | 90 | 65 |
| BT40-C32-110 | 32 | 68 | 115 | 90 |
| BT40-C32-135 | 32 | 68 | 135 | 110 |
| BT40-C32-150 | 32 | 68 | 150 | 125 |
| BT50-C20-90 | 20 | 55 | 90 | 55 |
| BT50-C25-90 | 25 | 58 | 90 | 55 |
| BT50-C25-135 | 25 | 58 | 135 | 100 |
| BT50-C32-105 | 32 | 68 | 105 | 70 |
| BT50-C32-135 | 32 | 68 | 135 | 100 |
| BT50-C32-165 | 32 | 68 | 165 | 130 |
| BT50-C42-120 | 42 | 84 | 120 | 85 |
| BT50-C42-135 | 42 | 84 | 135 | 100 |
| BT50-C42-165 | 42 | 84 | 165 | 130 |
Collets
| Model No. | Size | D | L | ||||
| C20 | C20-6,8,10,12,16 | 26 | 55.1 | ||||
| C25 | C25-6,8,10,12,16,20 | 30 | 63 | ||||
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 | ||||
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 | ||||
