Product Details:
Payment & Shipping Terms:
|
| Color: | Silver | Spindle Type: | CAT-C |
|---|---|---|---|
| Runout: | 0.005mm | Precision: | High Precision |
| Machine Type: | CNC Milling Machine | Feature: | High Holding Force |
| Highlight: | boring bar tool holder,turning tool holders |
||

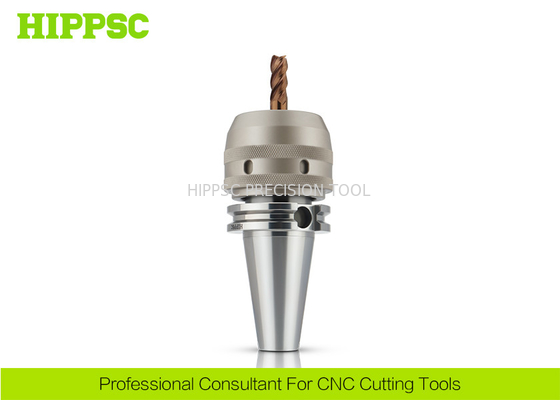

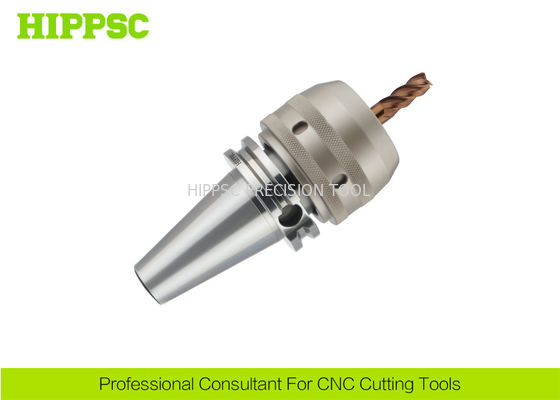

CAT Boring Bar Tool Holder , High Precision Machine Power Tool Holders For Milling
Ⅰ. Features And Advantages
1. Internal oil groove improves tool holder's rigidity well.
2. Suitable for heavy duty maching, rough machining.
3. With straight shank collet, hook wrench as accessory.
4. Super subzero treatment to clear austenite vestigital, no deformation happens.
5. More quill rollers than other products, and higher Gripping force, stop cutter from dropping.
6. The built-in embracing multi-layer ball has greater clamping force than the same kind of ball gauge, thus eliminating cutter dropping
Ⅱ. Technical Parametes
Product Name | Power Tool Holder |
Spindle Type | CAT |
Clamping Range | 4~42mm |
Runout | 0.005mm |
Processing Type | Rough and semi-rough machining |
Product Material | Special steel |
Hardness | HRC58~60° |
Ⅲ. Product Introduction
| Model No. | D1 | D2 | L1 | L2 |
| CAT40-C20-85 | 20 | 55 | 85 | 36 |
| CAT40-C25-90 | 25 | 58 | 90 | 39 |
| CAT40-C32-105 | 32 | 68 | 105 | 49 |
| CAT50-C20-105 | 20 | 55 | 105 | 36 |
| CAT50-C25-105 | 25 | 58 | 105 | 39 |
| CAT50-C32-110 | 32 | 68 | 110 | 49 |
| CAT50-C32-135 | 32 | 68 | 135 | 49 |
| CAT50-C42-110 | 42 | 84 | 110 | 65 |
| CAT50-C42-135 | 42 | 84 | 135 | 65 |
Collets List
| Model No. | Size | D | L | ||||
| C20 | C20-6,8,10,12,16 | 26 | 55.1 | ||||
| C25 | C25-6,8,10,12,16,20 | 30 | 63 | ||||
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 | ||||
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 | ||||
Ⅳ. Overview for HIPPSC Products
1. BT50 Power Tool Holder with C type Collet.
2. Pull type/Side Lock Tool Holders/Arbors/Shanks.
3. Tool Holders/Arbors/Shanks for Mirror Finishing.
4. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
5. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
7. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bits.
8. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
