Heat Shrink Hydraulic Tool Holder BT - HM Special Steel Material For Milling

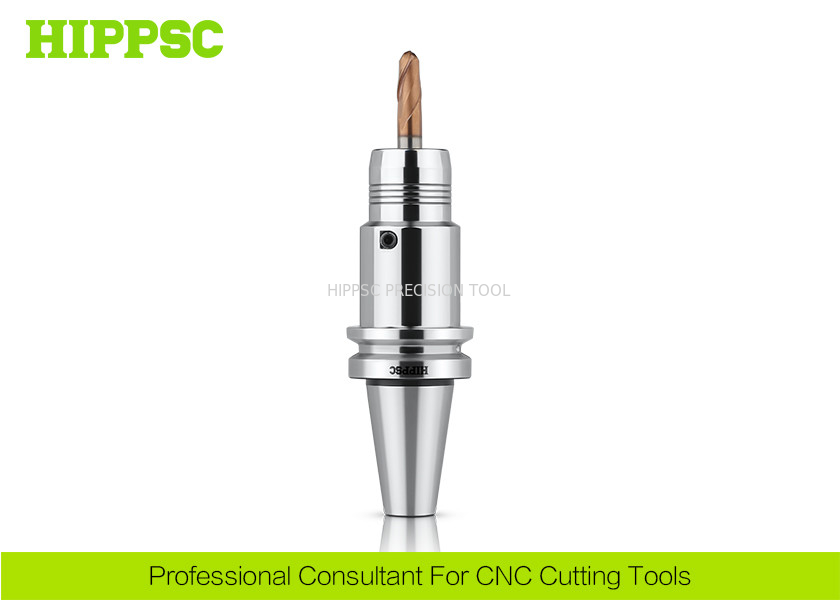

Large Image : Heat Shrink Hydraulic Tool Holder BT - HM Special Steel Material For Milling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-HM6-70

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT	Product Type:	Hydraulic Tool Holder With Ultra Short Clamping
Runout:	0.003μm	Cutting Type:	End Milling, Reaming, Drilling
Material:	Special Steel	Application:	Hole Making Process And Precision Finishing
Highlight:	machine tool holders , boring tool holder

Heat Shrink Tool Holders BT - HM Hydraulic Tool Holder For Milling

Ⅰ. Features

Up up to true running and repeat accuracy < 0.003 mm-Increase the tool’s service life
Excellent vibration damping Improved surface quality, Prevents chipping of tool cutting edge
Versatile clamping range thanks to intermediate straight shank colle.
Suitable for finishing and semi-finishing machining.
Easy handling and operation - no need peripheral equipment- Change tools within seconds
Precision-balanced as standard G 2.5 / 25000 1/min.

Ⅱ. Technical Parametes

Product Name	Compact Hydraulic Tool Holder
Spindle Type	BT
Clamping Range	6/8/10/12/16/20/25mm (Diameter)
Beat accuracy	< 0.003 mm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	Special Steel
Hardness	HRC58~60°

Ⅲ. Product Show

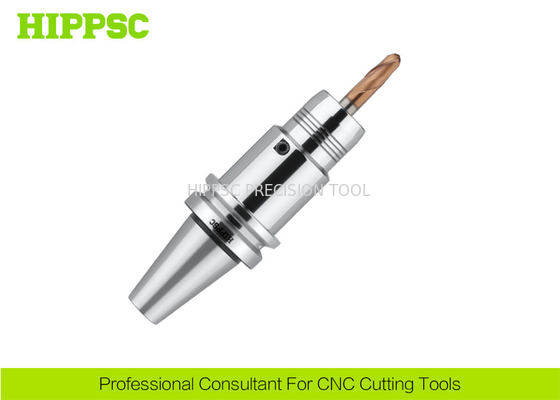

Heat Shrink Hydraulic Tool Holder BT - HM Special Steel Material For Milling

Price List

Cat. No	D1	D2	D3	L1	L2MAX	L2MIN	M
BT40-HM6-140	6	25	28	140	37.5	27.5	M5×0.8
BT40-HM8-140	8	27	30	140	37.5	27.5	M6×1.0
BT40-HM10-140	10	29	32	140	42.5	37.5	M8×1.0
BT40-HM12-140	12	31	34	140	47.5	37.5	M8×1.0
BT40-HM14-140	14	33	36	140	47.5	37.5	M8×1.0
BT40-HM16-140	16	35	38	140	52.5	42.5	M10*1.0
BT40-HM18-140	18	38	41	140	52.5	42.5	M10*1.0
BT40-HM20-140	20	40	43	140	52.5	42.5	M10*1.0
BT40-HM25-140	25	57	-	140	61	51	M16*1.0
BT40-HM32-140	32	63	-	140	65	55	M16*1.0
BT50-HM6-140	6	25	28	140	37.5	27.5	M5×0.8
BT50-HM8-140	8	27	30	140	37.5	27.5	M6×1.0
BT50-HM10-140	10	29	32	140	42.5	37.5	M8×1.0
BT50-HM12-140	12	31	34	140	47.5	37.5	M8×1.0
BT50-HM14-140	14	33	36	140	47.5	37.5	M8×1.0
BT50-HM16-140	16	35	38	140	52.5	42.5	M10*1.0
BT50-HM18-140	18	38	41	140	52.5	42.5	M10*1.0
BT50-HM20-140	20	40	43	140	52.5	42.5	M10*1.0
BT50-HM25-150	25	57	-	150	61	51	M16×1.0
BT50-HM32-150	32	63	-	150	65	55	M16×1.1

Ⅳ. Products Overview

Morse Tap Adapter.
B40 Economical Hydraulic Tool holder.
Hydro Expansion Tool holder of BT/SK/HSK.
CNC Indexable Cutting Inserts.
Other standard accessories.
We offer EOM/ODM service to every customer.

Ⅴ. Flexible Shipment Ways

1.By Sea.By Air.By Train/Truck.

2. TNT.EMS.DHL.UPS.FedEx.

3. Custom decide.

Ⅵ. Packing

Basic:
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Custom made available.
Tell us what kinds of packing material and design you want, we can

do as your requirements.

Ⅶ. Warehouse

Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
Strict and Careful Inspection Before Delivering Goods to Our customers .
Use Gauges For Examing Accuracy and Technical Factors.
Super less error on delivering Goods and Items of Order.

Heat Shrink Hydraulic Tool Holder BT - HM Special Steel Material For Milling

Ⅷ. Warranty

High Accuracy Equipments and Technology, Experienced Workers.
Custom Made Service, Professional suggestions.
Customer can find any products relating CNC Cutting here.
Warranty 12 Months, Free Repairing Service.
First Grade Service, Considerate and Sincere.
