Cutting Tool Inserts Made From PCD Materials With High Surface Quality And FZ

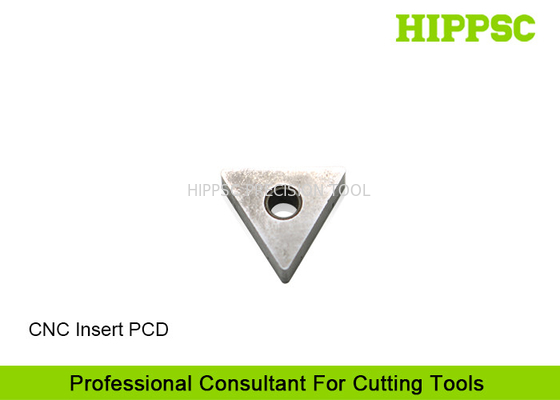

Large Image : Cutting Tool Inserts Made From PCD Materials With High Surface Quality And FZ

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CCGW 060202

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	PCD Inserts	Machining:	Precision Machining
Material:	PCD	Shape:	OEM Available
Material Of Work Piece:	Non-ferrous Metals (Aluminum, Copper)
Highlight:	turning tool inserts , indexable carbide inserts

Cutting Tool Inserts Made From PCD Materials With High Surface Quality And FZ

Ⅰ. Features And Advantages

OEM available.

High Precision, high performance and good wear resistance.

Machining on non-ferrous metals and nonmetal (aluminum alloy and copper alloy.

GFK/CFK, solid ebonite, woods etc) .

High speed cutting, increase tool's life.

Ⅱ. Technical Parametes

Product Name	PCD Cutting Inserts
Type	PCD
Material	PCD
Processing	Milling and Chamfering

Ⅲ. Product Introduction

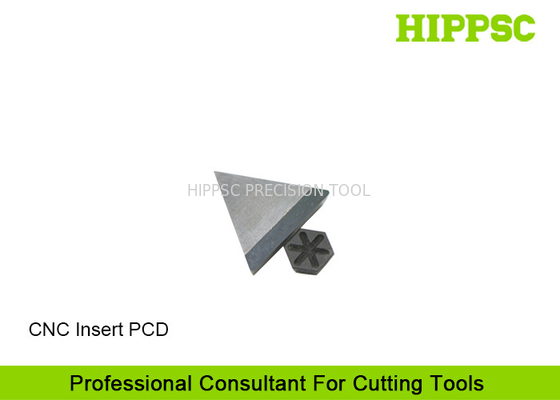

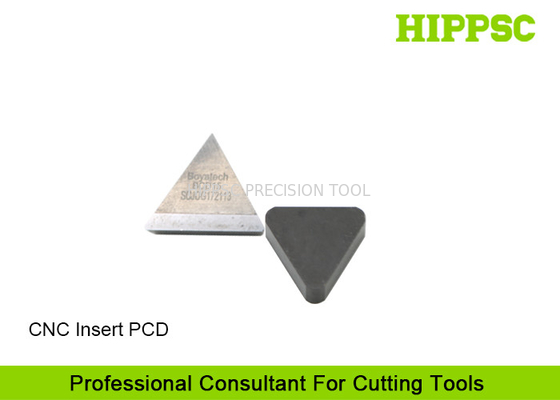

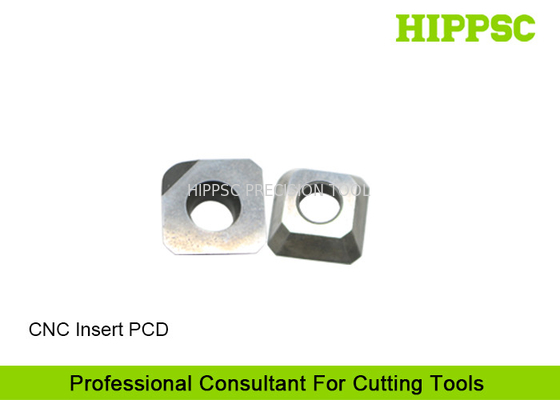

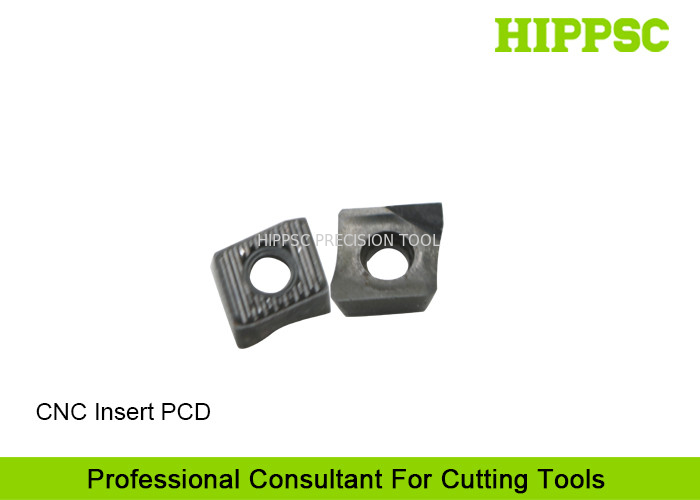

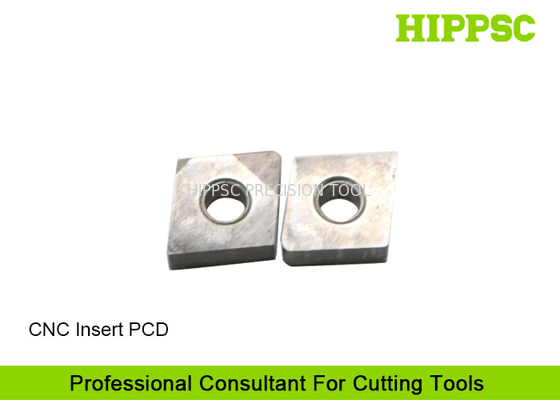

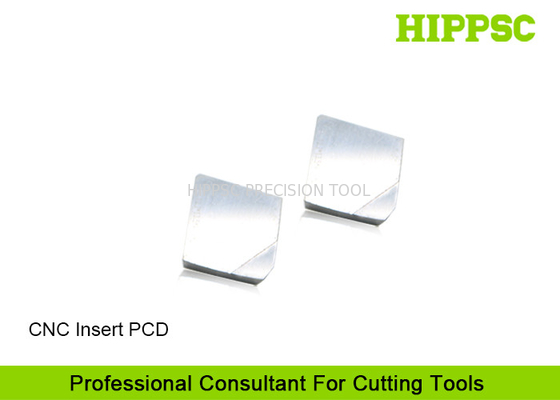

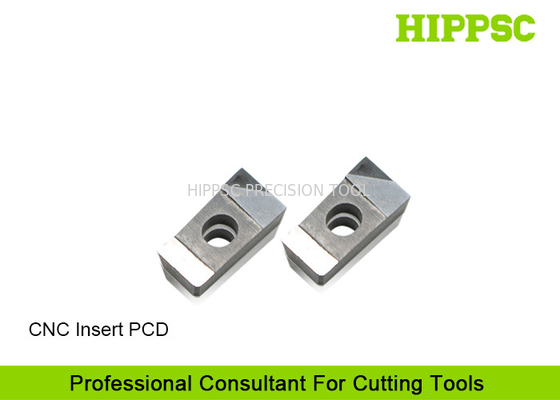

Cutting Tool Inserts Made From PCD Materials With High Surface Quality And FZ

Standard Items

Model Number	L	d	ΦD1	T	R
CCGW 060202	6.5	6.35	2.8	2.38	0.2
CCGW 060204	6.5	6.35	2.8	2.38	0.4
CCGW 060208	6.5	6.35	2.8	2.38	0.8
CCGW 09T304	9.7	9.52	4.4	3.97	0.4
CCGW 09T308	9.7	9.52	4.4	3.97	0.8
CCGW 120404	12.9	12.7	5.5	4.76	0.4
CCGW 120408	12.9	12.7	5.5	4.76	0.8
CNMA 120404	12.9	12.7	5.16	4.76	0.4
CNMA 120408	12.9	12.7	5.16	4.76	0.8
CNMA 120412	12.9	12.7	5.16	4.76	1.2
DCGW 070202	7.8	6.35	2.8	2.38	0.2
DCGW 070204	7.8	6.35	2.8	2.38	0.4
DCGW 11T302	11.6	9.52	4.4	3.97	0.2
DCGW 11T304	11.6	9.52	4.4	3.97	0.4
DCGW 11T308	11.6	12.7	4.4	3.97	0.8
DNMA 150602	15.5	12.7	5.16	6.35	0.2
DNMA 150604	15.5	12.7	5.16	6.35	0.4
DNMA 150608	15.5	5.56	5.16	6.35	0.8
TCGW 090204	9	5.56	2.5	2.38	0.4
TCGW 090208	9	6.35	2.5	2.38	0.8
TCGW 110204	11	6.35	2.8	2.38	0.4
TCGW 110208	11	9.52	2.8	2.38	0.8
TCGW 16T304	16.5	9.52	4.4	3.97	0.4
TCGW 16T308	16.5	6.35	4.4	3.97	0.8
TPGN 110304	11	6.335	**	3.18	0.4
TPGN 110308	11	9.52	**	3.18	0.8
TPGN 16T304	16.5	9.52	**	3.18	0.4
TPGN 16T308	16.5	9.52	**	3.18	0.8
TNMA 160404	16.5	9.52	3.81	4.76	0.4
TNMA 160408	16.5	9.52	3.81	4.76	0.8
TNMA 16012	16.5	9.52	3.81	4.76	1.2
VBGW 160402	16.6	9.52	4.4	4.76	0.2
VBGW 160404	16.6	9.52	4.4	4.76	0.4
VBGW 160408	16.6	9.52	4.4	4.76	0.8
VCGW 160402	16.6	9.52	4.4	4.76	0.2
VCGW 160404	16.6	9.52	4.4	4.76	0.4
VCGW 160408	16.6	9.52	4.4	4.76	0.8
VNGA 160402	16.6	9.52	3.81	4.76	0.2
VNGA 160404	16.6	9.52	3.81	4.76	0.4
VNGA 160408	16.6	9.52	3.81	4.76	0.8

Ⅳ. Overview for HIPPSC Products

1.    PCD/CBN/MCD Materials Cutting Inserts.
2.    High Speed GER/GSK Tool Holder.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
