CNC Milling Carbide Cutting Tool Inserts / Solid Carbide Saw Blade Milling Cutter

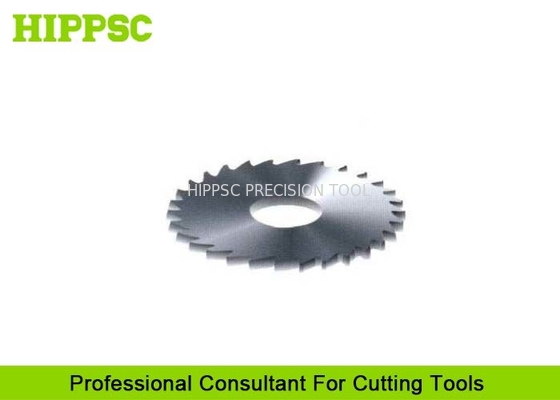

Large Image : CNC Milling Carbide Cutting Tool Inserts / Solid Carbide Saw Blade Milling Cutter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	A tooth type

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	CNC Milling Inserts	Machining:	Milling
Material:	Solid Carbide	Coating:	None
Workpiece:	Aluminum
Highlight:	carbide tool inserts , indexable carbide inserts

Solid carbide saw blade milling cutter

Ⅰ. Features And Advantages

Suitable for machining Copper, Aluminium, Steel, Cast iron, stainless steel.
Good regidity and hardness.

Quick cutting and milling.

Chip remove well.

Superior wear resistance.

Rust resistance.

No coating, for aluminum machining.

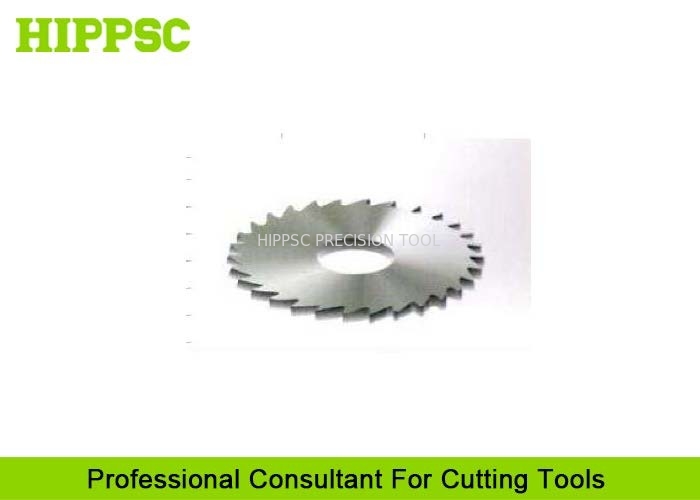

Ⅱ. Product drawing

CNC Milling Carbide Cutting Tool Inserts / Solid Carbide Saw Blade Milling Cutter

Ⅲ. Product Introduction

Standard Items

External Diameter(D)	Thickness(H)	Internal Diameter(d)	No. of teech(T)	External Diameter(D)	Thickness(H)	Internal Diameter(d)	No. of teech(T)
10	0.15-4.0	4 5	6-24	75	0.5-8.0	16 22 25.4	30-120
12	0.15-4.0	4 5 6	6-30	80	0.5-8.0	22 25.4	30-128
16	0.15-4.0	5 6 8	6-40	85	0.5-8.0	22 25.4	30-128
20	0.15-4.0	5 6 8	6-45	90	0.5-8.0	22 25.4	30-160
22	0.2-5.0	5 6 8	8-50	95	0.5-8.0	22 25.4	30-160
25	0.2-5.0	6 8 10	10-56	100	0.5-8.0	22 25.4 27	30-160
30	0.2-5.0	6 8 10	10-60	105	0.8-8.0	22 25.4 27	30-160
32	0.2-6.0	6 8 10 12.7	10-60	110	0.8-8.0	22 25.4 27 32	30-180
35	0.2-6.0	8 10 12.7	10-60	115	0.8-8.0	22 25.4 27 32	30-180
40	0.2-6.0	8 10 12.7	10-80	120	1.0-10.0	22 25.4 27 32	30-240
45	0.2-8.0	10 12.7 16	10-80	125	1.0-10.0	22 25.4 27	30-240
50	0.2-8.0	10 12.7 16	10-100	130	1.0-10.0	22 25.4 27 32	32-240
55	0.2-8.0	12.7 16	24-120	150	1.0-10.0	22 25.4 27 32	40-240
60	0.2-8.0	12.7 13 16	24-120	160	1.0-10.0	22 25.4 27 32	40-240
63	0.2-8.0	12.7 13 16	24-120	180	1.5-12	25.4 27 32 40	60-280
70	0.3-8.0	16 22 25.4	28-120	200	1.5-12	25.4 27 32 40	60-280

Ⅳ. Overview for HIPPSC Products

1.    APMT1604PDER-H Cutting Inserts.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

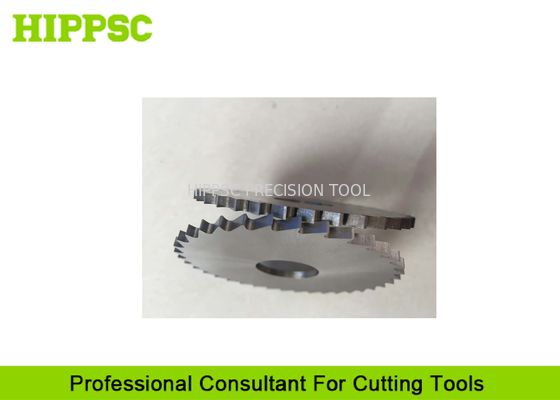

CNC Milling Carbide Cutting Tool Inserts / Solid Carbide Saw Blade Milling Cutter

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
