Collet Holder For Milling Machine , M Threading Tool Holder Metal Cutter

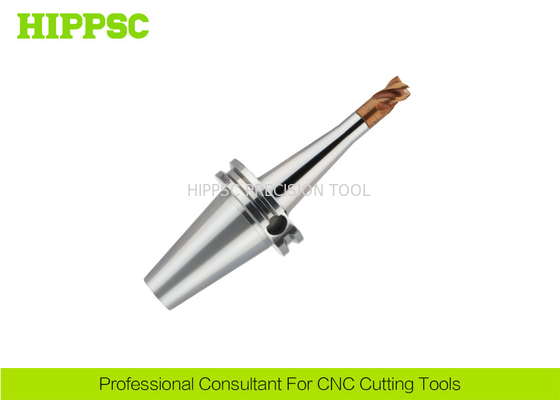

Large Image : Collet Holder For Milling Machine , M Threading Tool Holder Metal Cutter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CAT40-M08-60

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	CAT-M	Hardness:	HRC58~60
Runout:	0.003mm	Inventory:	In Stock
Product Type:	Theading Tool Holder	Advantage:	Non-eccentricity And Preset Dynamic Balance
Highlight:	CNC Cutting Tool Holder , cnc mill tool holders

Collet Holder For Milling Machine , M Threading Tool Holder Metal Cutter

Ⅰ. Features

Thread cutter head and the tungsten steel cutter tool.
Through the screw thread lock, simple and convenient.
Nice rigidity, cutting fast, high efficient.
Wide range of applications, suits for many kinds of quick change tools.
The nut is automatically corrected by non-eccentricity,and preset dynamic balance
High precision, various specifications, high quality, sufficient stock

Ⅱ. Technical Parametes

Product Name	Threading Tool Holder
Spindle Type	CAT
Screw hole size	M
Beat accuracy	≤ 0.003 μm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Show

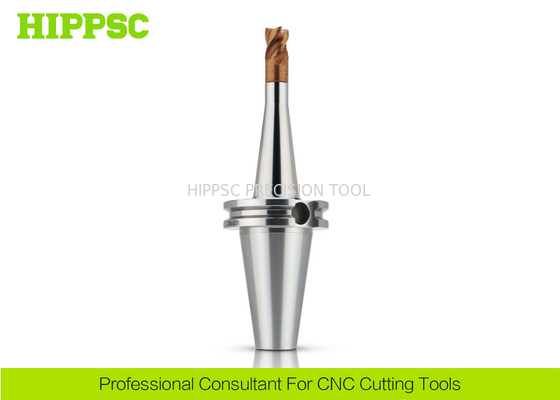

Collet Holder For Milling Machine , M Threading Tool Holder Metal Cutter

Available Standard Items

Cat.No	L1	L2	R	D1	D2	D3	M	α
CAT40-M08-45	45	12	5	15.4	8.5	18	M8	5°
CAT40-M08-60	60	12	5	15.4	8.5	26	M8	5°
CAT40-M08-90	90	12	5	15.4	8.5	30	M8	5°
CAT40-M08-110	110	12	5	15.4	8.5	32	M8	5°
CAT40-M10-45	45	12	5	19	10.5	21	M10	4°
CAT40-M10-60	60	12	5	19	10.5	26	M10	4°
CAT40-M10-90	90	12	5	19	10.5	30	M10	4°
CAT40-M10-110	110	12	5	19	10.5	32	M10	4°
CAT40-M12-45	45	12	5	24	12.5	26	M12	4°
CAT40-M12-60	60	12	5	24	12.5	29	M12	4°
CAT40-M12-90	90	12	5	24	12.5	33	M12	4°
CAT40-M12-110	110	12	5	24	12.5	36	M12	4°
CAT40-M12-135	135	12	5	24	12.5	39	M12	4°
CAT40-M16-45	45	12	5	29	17	31	M16	4°
CAT40-M16-60	60	12	5	29	17	39	M16	4°
CAT40-M16-90	90	12	5	29	17	43	M16	4°
CAT40-M16-110	110	12	3	29	17	46	M16	4°
CAT40-M16-135	135	12	3	29	17	49	M16	4°

Cat.No	L1	L2	R	D1	D2	D3	M	α
CAT50-M08-60	60	12	10	15.4	8.5	20	M8	5°
CAT50-M08-90	90	12	10	15.4	8.5	26	M8	5°
CAT50-M08-110	110	12	10	15.4	8.5	29	M8	5°
CAT50-M10-60	60	12	10	19	10.5	23	M10	4°
CAT50-M10-90	90	12	10	19	10.5	27	M10	4°
CAT50-M10-110	110	12	10	19	10.5	30	M10	4°
CAT50-M12-60	60	12	10	24	12.5	28	M12	4°
CAT50-M12-90	90	12	10	24	12.5	32	M12	4°
CAT50-M12-110	110	12	10	24	12.5	35	M12	4°
CAT50-M12-135	135	12	10	24	12.5	39	M12	4°
CAT50-M16-60	60	12	10	29	17	33	M16	4°
CAT50-M16-90	90	12	10	29	17	37	M16	4°
CAT50-M16-110	110	12	10	29	17	40	M16	4°
CAT50-M16-135	135	12	10	29	17	44	M16	4°

Ⅳ. Products Overview

BT40 Threading Tool Holder.
Hydro Expansion Tool holder of BT/SK/HSK.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
CNC Indexable Cutting Tools.
Rapid Changing CNC Tool Bits.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

Strict and Careful Inspection Before Delivering Goods to Our customers .
Use Gauges For Examing Accuracy and Technical Factors.
Super less error on delivering Goods and Items of Order.
Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.

Ⅷ. Warranty

We use imported famous professional instruments to do quality control.
Our workers are experienced and well trained.
Custom Made Service, Professional suggestions.
Customer can find any products relating CNC Cutting here.
Warranty 12 Months, Free Repairing Service.
Best Service, Considerate and Sincere.
