21691 10N Rhombus CNC Router Bits for Plastic Screw Bolt Takes

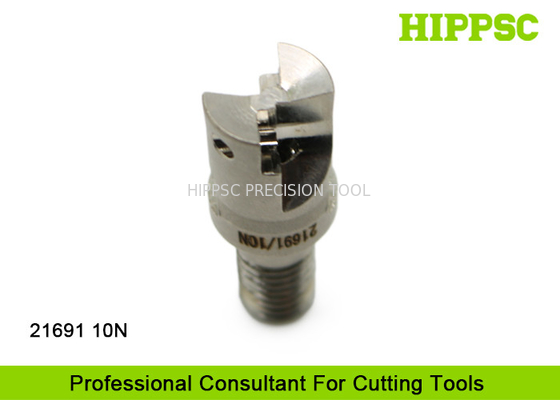

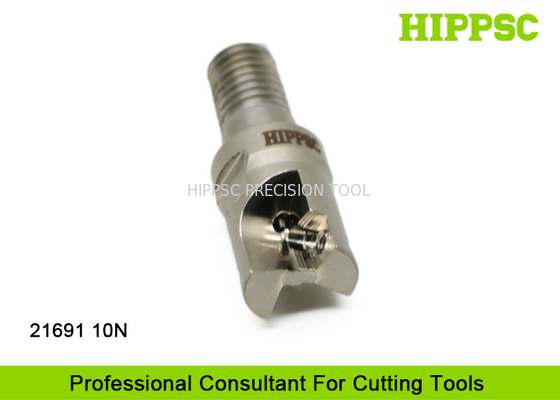

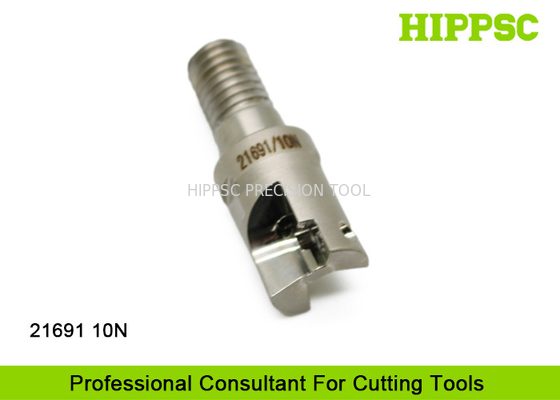

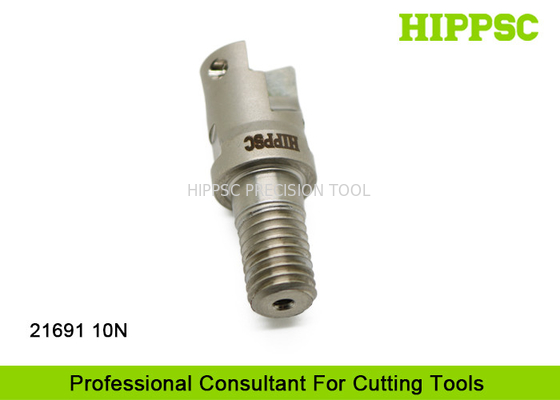

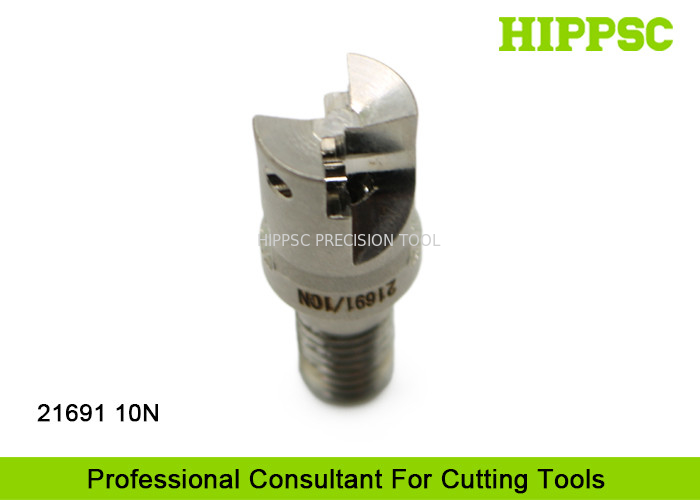

Large Image : 21691 10N Rhombus CNC Router Bits for Plastic Screw Bolt Takes

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	21691 10N

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	Rhombusr Tool Bits	Machining:	Square Shoulder Milling, Chamering And High Feed Maching
Material:	Special Steel	Shape:	Rhombus
Number Of Cutting Edges:	2 Available
Highlight:	carbide router bits , spiral router bits

21691 10N Rhombus CNC Router Bits for Plastic Screw Bolt Takes

Ⅰ. Features And Advantages

Cotacted with holding fixture by screw bolt, strong stability.
Installed with toroidal inserts, suit for HSK/SK tool holder and cemented carbide extensions
With internal coolant suppl to ensure a effective temperature to protect tools and reduce cost.

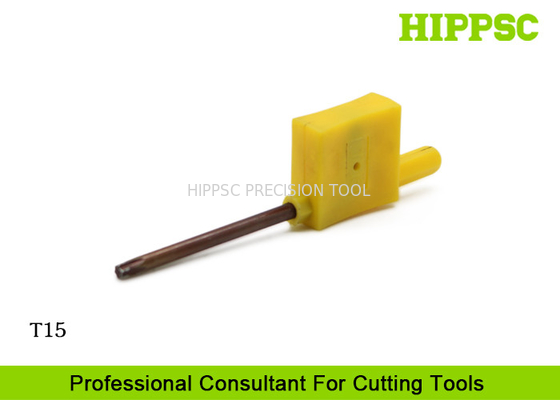

Simple installation for inserts, use T spanner to screw up the inserts with high accuracy.
Only Two inserts installed, contributes to chip removal.
There are 5 angles available for installing inserts, square milling with 90°,profile milling with 90°, acute angle excessive structure to profile milling on surface to get high light of 97°, high feeding with 100° and 120°.
High installation accuracy of inserts, the two inserts are with equal plane and angle, ensure balance and accuracy.
Suits for face milling, Contour milling and corner machining.

Ⅱ. Technical Parametes

Product Name	21691 10N Tool Bits
Type	Rhombus
Material	Special Steel
Processing	Face milling, contour and corner milling

Ⅲ. Product Introduction

21691 10N Rhombus CNC Router Bits for Plastic Screw Bolt Takes
Standard Items

Part No.	D	D1	L	M	K	Z	Insert
XD06-16-M8-2T-95°	16	12.8	23	M8	95	2	XDCW060210
XD06-16-M10-2T-95°	16	15.4	23	M10	95	2	XDCW060210
XD06-20-M10-3T-95°	20	17.8	30	M10	95	3	XDCW060210
XD10-25-M12-2T-95°	25	20.8	35	M12	95	2	XDCW10T310
XD06-25-M12-3T-95°	25	20.8	35	M12	95	3	XDCW060210
XD10-35-M16-3T-95°	35	28.8	43	M16	95	3	XDCW10T310
XD06-35-M16-5T-95°	35	28.8	43	M16	95	5	XDCW060210
XD10-42-M16-4T-95°	42	28.8	43	M16	95	4	XDCW10T310
XD06-42-M16-6T-95°	42	28.8	43	M16	95	6	XDCW060210
XD06-15-M8-2T-90°	15	12.8	23	M8	90	2	XDCW060210
XD06-20-M10-3T-90°	20	17.8	30	M10	90	3	XDCW060210
XD10-25-M12-2T-90°	25	20.8	35	M12	90	2	XDCW10T310
XD06-25-M12-3T-90°	25	20.8	35	M12	90	3	XDCW060210
XD10-35-M16-3T-90°	35	28.8	43	M16	90	3	XDCW10T310

Ⅳ. Overview for HIPPSC Products

1.    21691 10N CNC Router Bits.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
