Stainless Steel CNC Router Bits For Holding , CNC Carbide Inserts Ball Nose

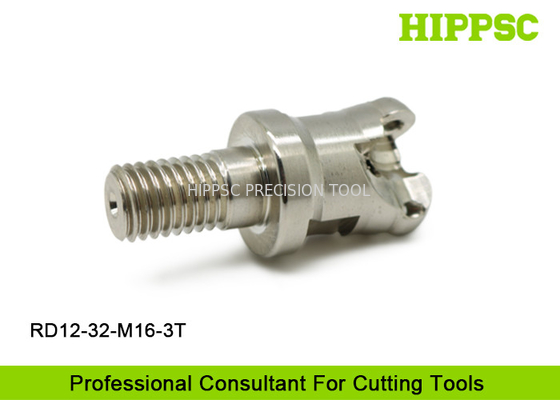

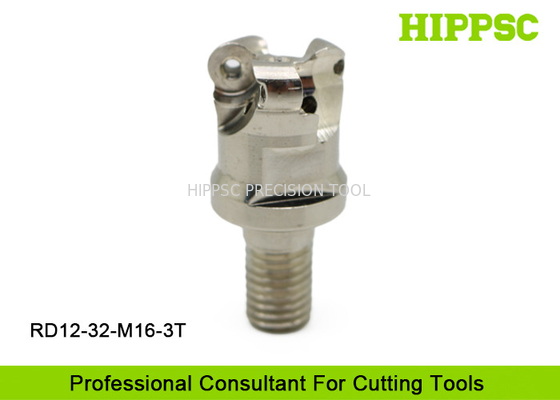

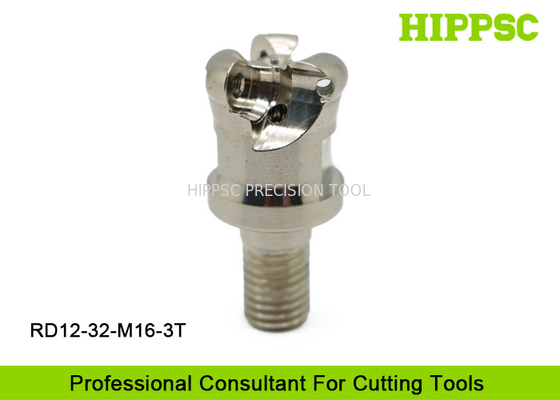

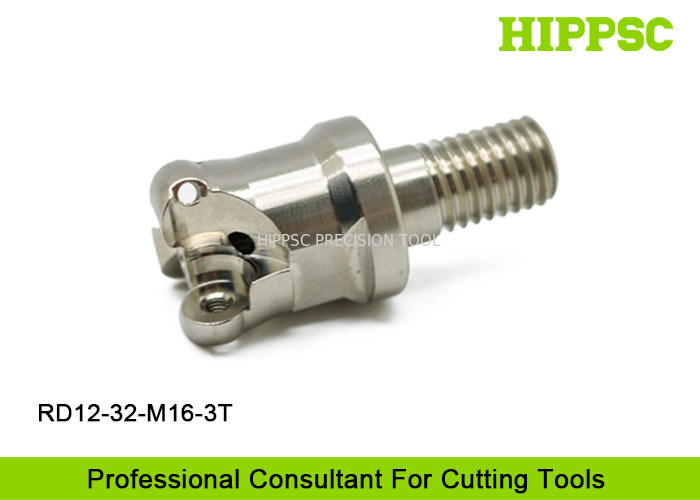

Large Image : Stainless Steel CNC Router Bits For Holding , CNC Carbide Inserts Ball Nose

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	RD12 - 32 - M16- 3T

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	Spherical Type CNC Tool Bits	Machining:	Grooving, Side Machining And Face Machining
Material:	Special Steel	Shape:	Ball Nose
Number Of Cutting Edges:	2
Highlight:	spiral router bits , compression router bit

Stainless Steel CNC Router Bits For Holding , CNC Carbide Inserts Ball Nose

Ⅰ. Features And Advantages

Combined with holding fixture by screw bolt, strong stability.
Installed with toroidal inserts, suit for HSK/SK tool holder and cemented carbide extensions
With internal coolant supply to ensure proper temperature to protect tools and reduce cost.
Simple installation for inserts, use T spanner to screw up the inserts with high accuracy.
Only One inserts installed, contributes to chip removal.
High installation accuracy of inserts, the two inserts are with equal plane and angle, ensure balance and accuracy.
Connected to tool holder or extensions by thread bolt, gives high tighteness.
Wide application range, rough and finishing machining.

Ⅱ. Technical Parametes

Product Name	RD12-32-M16-3T Ball Nose Tools Holder
Type	Ball nose
Material	Special Steel
Processing	Grooving, side and face machining

Ⅲ. Product Introduction

Standard Items

Part No.	D	R	D1	L2	L	M	Z	Inserts
RD07-12-M6-2T	12	3.5	9.8	18	18	M6	2	RDHT0701
RD07-12-M8-2T	12	3.5	12.8	23	23	M8	2	RDHT0701
RD07-13-M8-2T	13	3.5	12.8	23	23	M8	2	RDHT0701
RD07-15-M8-2T	15	3.5	12.8	23	23	M8	2	RDHT0702
RD07-15-M8-3T	15	3.5	15.4	23	23	M8	3	RDHT0702
RD07-16-M10-2T	16	3.5	17.8	23	23	M10	2	RDHT0702
RD07-20-M10-2T	20	5	17.8	30	30	M10	2	RDHT1003
RD07-20-M10-3T	20	3.5	17.8	30	30	M10	3	RDHT0702
RD07-20-M10-4T	20	3.5	20.8	30	30	M10	4	RDHT0702
RD12-24-M12-2T	24	6	20.8	35	35	M12	2	RDHT1203
RD10-25-M12-2T	25	5	20.8	35	35	M12	2	RDHT1003
RD10-25-M12-3T	25	5	20.8	35	35	M12	3	RDHT1003
RD07-25-M12-5T	25	3.5	28.8	35	35	M12	5	RDHT0702
RD10-30-M16-4T	30	5	28.8	43	43	M16	4	RDHT1003
RD07-30-M16-5T	30	3.5	28.8	43	43	M16	5	RDHT0702
RD16-32-M16-2T	32	8	28.8	43	43	M16	2	RDHT1604
RD12-35-M16-3T	35	6	28.8	43	43	M16	3	RDHT1203
RD10-35-M16-4T	35	5	28.8	43	43	M16	4	RDHT1003
RD12-35-M16-4T	35	6	28.8	43	43	M16	4	RDHT1203
RD10-35-M16-5T	35	5	28.8	43	43	M16	5	RDHT1003
RD07-35-M16-6T	35	3.5	28.8	43	43	M16	6	RDHT0702
RD10-42-M16-5T	42	5	28.8	43	43	M16	5	RDHT1003
RD12-42-M16-4T	42	6	28.8	43	43	M16	4	RDHT1203
RD127-42-M16-5T	42	6	28.8	43	43	M16	5	RDHT1203

Attachments

Insert	Screw	Spanner

RD07	M2.5*5.0	HST07
RD10	M3.5*7.6	HST15
RD12	M3.5*7.6	HST15
RD16	M4.5*10	HST20

Ⅳ. Overview for HIPPSC Products

1.    RD12 - 32 - M16- 3T Roun nose Type CNC Router Bits.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet.
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
