Milling Head Solid Carbide Router Bits CNC Router High Stability

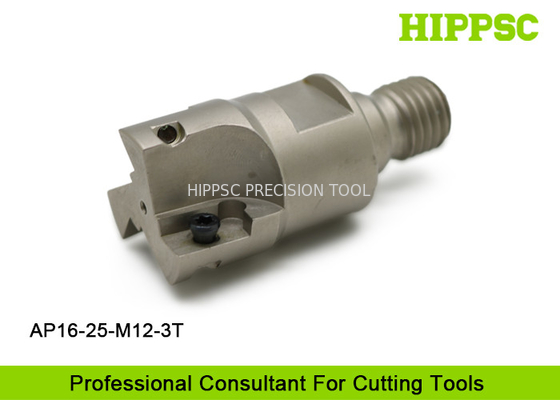

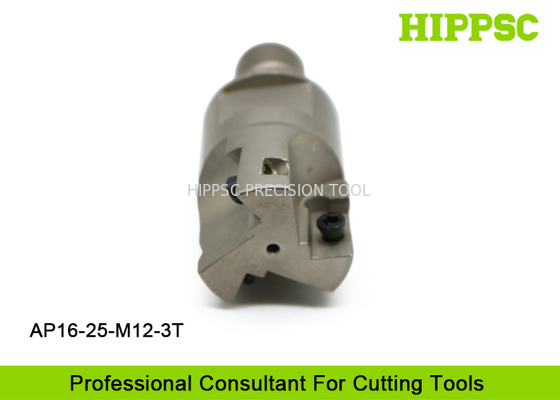

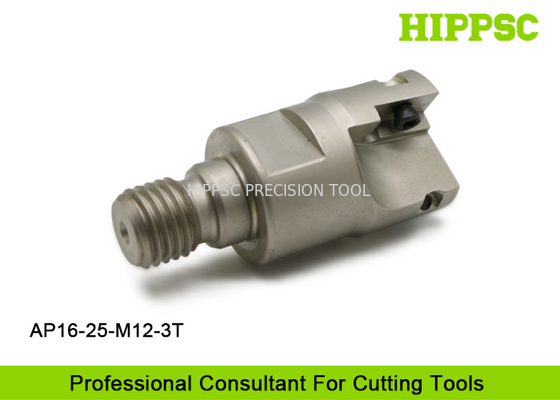

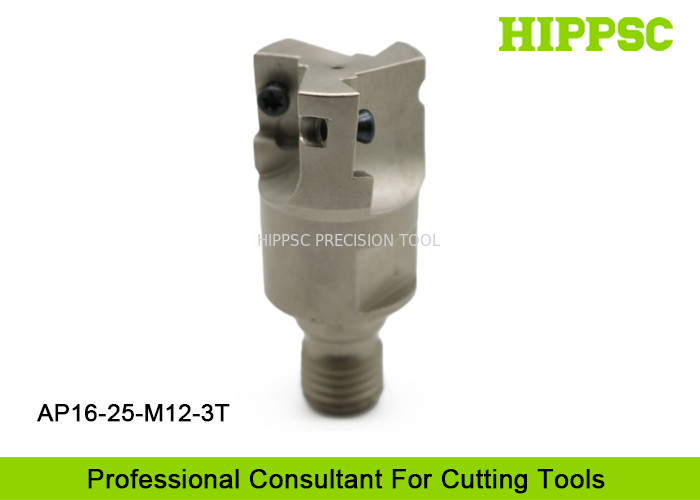

Large Image : Milling Head Solid Carbide Router Bits CNC Router High Stability

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	AP12-25-M12-3T

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	Milling Head	Machining:	Square Milling, Chamering
Material:	Special Steel	Shape:	Square Shoulder
Number Of Cutting Edges:	2
Highlight:	carbide router bits , compression router bit

Milling Head Solid Carbide Router Bits CNC Router High Stability

Ⅰ. Features And Advantages

Cotact holding fixture by thread mount, makes high stability and accuracy..
Suit for HSK/SK tool holder and cemented carbide extensions with high performance.
With internal coolant supply, protect cutting tools and reduce cost.
It is suitable for square shoulder and high feed milling, equal altitude
milling, precision machining,chamfering.
Remove residual material quickly and smoothy.

Ⅱ. Technical Parametes

Product Name	AP16-25-M12-3T Milling Head
Type	Square Shoulder
Material	Special Steel
Processing	Milling, precision and chamfering

Ⅲ. Product Introduction

Milling Head Solid Carbide Router Bits CNC Router High Stability
Standard Items

Model Number	D	L	M	Z	Insert	Screw	Spanner
AP11-16-M08-2T	16	25	M08	2	APMT1135	M2.5*6	T9
AP11-17-M08-2T	17	25	M08	2	APMT1135
AP11-20-M10-2T	20	30	M10	2	APMT1135
AP11-21-M10-2T	21	30	M10	2	APMT1135
AP11-25-M12-3T	25	35	M12	3	APMT1135
AP11-26-M12-3T	26	35	M12	3	APMT1135
AP16-25-M12-2T	25	40	M12	2	APMT1604	M4.0*11	T15
AP16-30-M16-2T	30	40	M16	2	APMT1604
AP16-32-M16-3T	32	40	M16	3	APMT1604
AP16-35-M16-3T	35	40	M16	3	APMT1604

Ⅳ. Overview for HIPPSC Products

1.    AP16-25-M12-3T Tooling System of Milling Head / CNC Router Bits.
2.    High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3.    Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4.    Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5.    Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6.    Tool Holders/Arbors/Shanks for Mirror Finishing.
7.    Morse Taper/Tapering Tool Holders/Shanks.
8.    Face Milling Adapters/Tool Holders/Arbors/Shanks.
9.    Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10.  Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
