| Product Type: | Tapping Chucks | Application: | Drilling, Milling And Reaming |
|---|---|---|---|
| Material: | Special Steel | ||
| Highlight: | cnc quick change tooling,Quick Tool Change System |
||

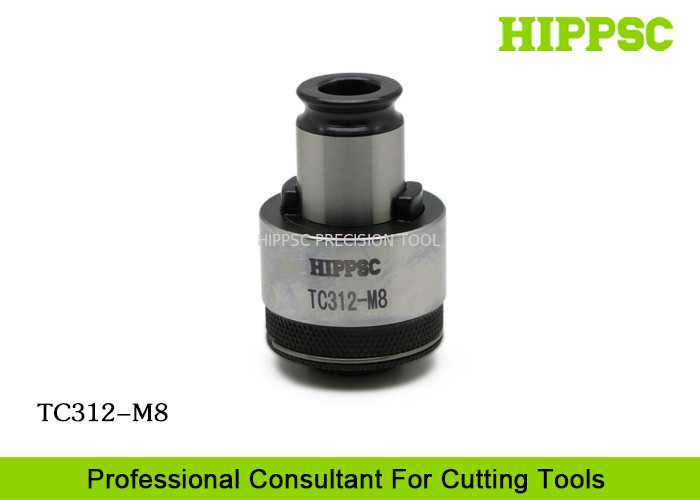

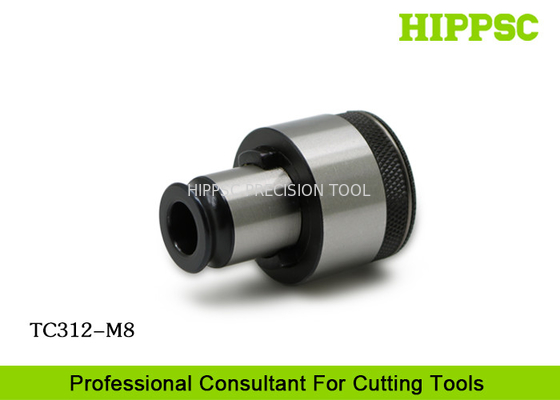

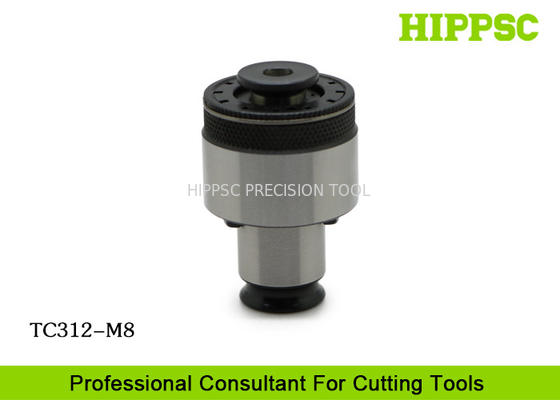

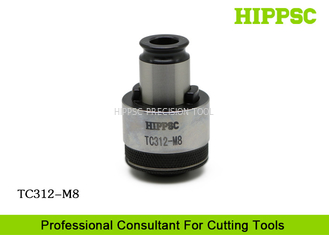

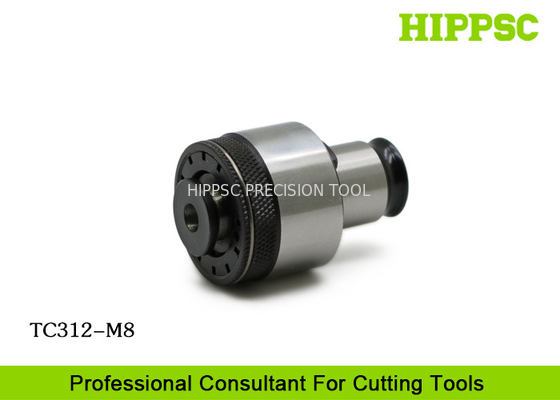

Tap Collet For Quick Change Tooling Tapping Holders With Super High Rigidity
Ⅰ. Features And Advantages
Ⅱ. Technical Parametes
|
Product Name |
TC312-M8 Tap collet |
|
Clamping Range |
3.2mm~5.0mm |
|
Product Material |
Special Steel |
Ⅲ. Product Introduction
Available Items
| Item Name | Model Number | Tap Shaink | C | L1 | L2 | |
| φD | □ | |||||
| TC312 | TC312-M3 | 4.0 | 3.2 | 19 | 21.5 | 25 |
| -M4 | 5.0 | 4.0 | ||||
| -M5 | 5.5 | 4.5 | ||||
| -M6 | 6.0 | 4.5 | ||||
| -M8 | 6.2 | 5.0 | ||||
| -M10 | 7.0 | 5.5 | ||||
| -M11 | 8.0 | 6.0 | ||||
| -M12 | 8.5 | 6.5 | ||||
| -M14 | 10.5 | 8.0 | ||||
| -UNC1/4 | 6.0 | 4.5 | ||||
| -UNC5/16 | 6.1 | 5.0 | ||||
| -UNC3/8 | 7.0 | 5.5 | ||||
| -UNC7/16 | 8.0 | 6.0 | ||||
| -UNC1/2 | 9.0 | 7.0 | ||||
| -UNC9/16 | 10.5 | 8.0 | ||||
| -PT1/8 | 8.0 | 6.0 | ||||
| -PT1/4 | 11.0 | 9.0 | ||||
| Item Name | Model Number | Tap Shaink | C | L1 | L2 | |
| φD | □ | |||||
| TC820 | TC820-M6 | 6.0 | 4.5 | 31 | 35 | 34 |
| -M8 | 6.2 | 5.0 | ||||
| -M10 | 7.0 | 5.5 | ||||
| -M11 | 8.0 | 6.0 | ||||
| -M12 | 8.5 | 6.5 | ||||
| -M14 | 10.5 | 8.0 | ||||
| -M16 | 12.5 | 10.0 | ||||
| -M17 | 13.0 | 10.0 | ||||
| -M18 | 14.0 | 11.0 | ||||
| -M20 | 15.0 | 12.0 | ||||
| -M22 | 17.0 | 13.0 | ||||
| -UNC3/8 | 7.0 | 5.5 | ||||
| -UNC7/16 | 8.0 | 6.0 | ||||
| -UNC1/2 | 9.0 | 7.0 | ||||
| -UNC9/16 | 10.5 | 8.0 | ||||
| -UNC5/8 | 12.5 | 9.0 | ||||
| -UNC3/4 | 14.0 | 11.0 | ||||
| -UNC7/8 | 17.0 | 13.0 | ||||
| -PT1/8 | 8.0 | 6.0 | ||||
| -PT1/4 | 11.0 | 9.0 | ||||
| -PT3/8 | 14.0 | 11.0 | ||||
| -PT1/2 | 18.0 | 14.0 | ||||
| Item Name | Model Number | Tap Shaink | C | L1 | L2 | |
| φD | □ | |||||
| TC1638 | TC1638-M14 | 10.5 | 8.0 | 48 | 55.5 | 45 |
| -M16 | 12.5 | 10.0 | ||||
| -M17 | 13.0 | 10.0 | ||||
| -M18 | 14.0 | 11.0 | ||||
| -M20 | 15.0 | 12.0 | ||||
| -M22 | 17.0 | 13.0 | ||||
| -M24 | 19.0 | 15.0 | ||||
| -M27 | 20.0 | 15.0 | ||||
| -M28 | 21.0 | 17.0 | ||||
| -M30 | 23.0 | 17.0 | ||||
| -M32 | 24.0 | 19.0 | ||||
| -M33 | 25.0 | 19.0 | ||||
| -M34 | 26.0 | 21.0 | ||||
| -M36 | 28.0 | 21.0 | ||||
| -UNC9/16 | 10.5 | 8.0 | ||||
| -UNC5/8 | 12.0 | 9.0 | ||||
| -UNC3/4 | 14.0 | 11.0 | ||||
| -UNC7/8 | 17.0 | 13.0 | ||||
| -UNC1 | 20.0 | 15.0 | ||||
| -UNC1/8 | 22.0 | 17.0 | ||||
| -UNC1/4 | 24.0 | 19.0 | ||||
| -UNC3/8 | 26.0 | 21.0 | ||||
| -PT1/4 | 11.0 | 9.0 | ||||
| -PT3/8 | 14.0 | 11.0 | ||||
| -PT1/2 | 18.0 | 14.0 | ||||
| -PT3/4 | 23.0 | 17.0 | ||||
| -PT1 | 26.0 | 21.0 | ||||
Ⅳ. Overview for HIPPSC Products
TC312-M8 Quick change tap collet of tapping chuck.
