Product Details:
Payment & Shipping Terms:
|
| Product Type: | Pull Stud | Application: | Drilling, Milling And Reaming, Tapping |
|---|---|---|---|
| Material: | Special Steel | Taper: | 7:24 |
| Highlight: | cnc quick change tooling,quick change tool holder |
||

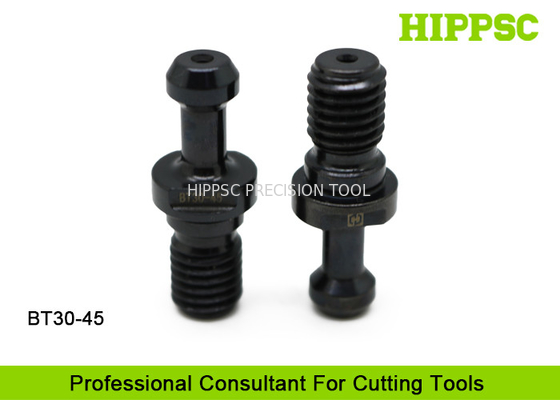

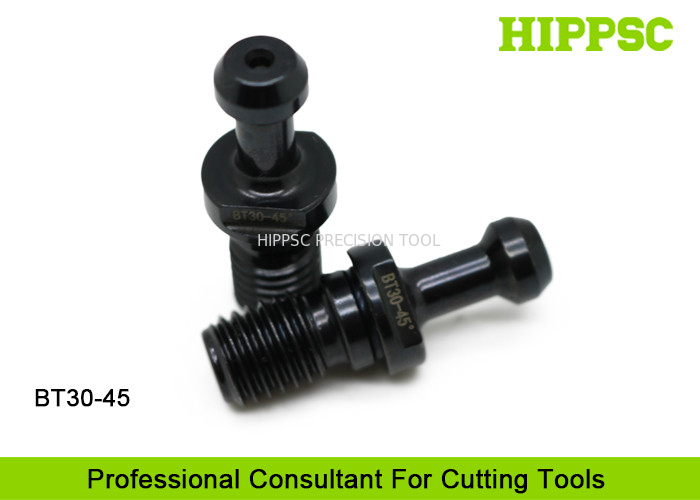

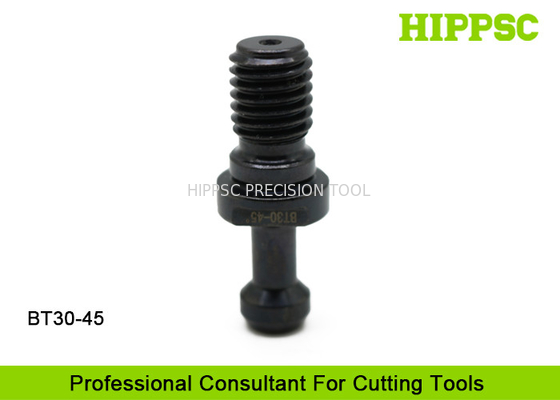

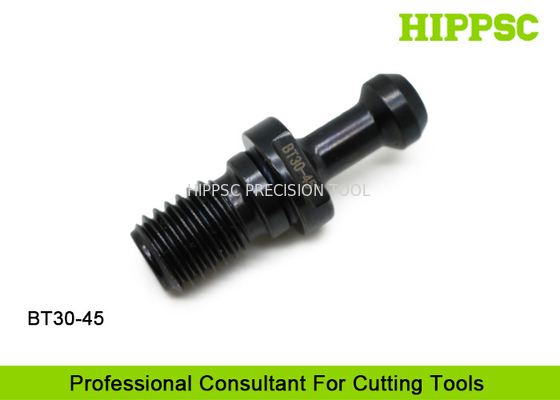

BT30 R8 Quick Change Tools Fastening Tools CNC Holding Fixture Pull Stud
Ⅱ. Technical Parametes
|
Product Name |
BT30-45 degree Pull Stud |
|
Clamping Range |
4.50mm~14.00mm |
|
Product Material |
Special Steel |
Ⅲ. Product Introduction
Available Items
| Part No. | α | D1 | D2 | D3 | D4 | G | L1 | L2 | L3 |
| 15PB | 45° | 10 | 6.5 | 4 | 7 | M6*1 | 28 | 17 | 135 |
| 15P-1 | 75° | 10 | 6.5 | 5 | 7 | M6*1 | 26 | 15 | 11.5 |
| -2 | 90° | ||||||||
| 20P-1 | 75° | 12 | 8.5 | 6 | 8.5 | M8*1.25 | 31.5 | 17.5 | 13.5 |
| -2 | 90° | ||||||||
| S20R-1 | 75° | 14 | 8.5 | 7 | 9.5 | M8*1.25 | 34.5 | 20.5 | 16 |
| -2 | 90° | ||||||||
| 25P-1 | 75° | 12 | 8.5 | 7 | 10 | M8*1.25 | 34 | 20 | 15.5 |
| -2 | 90° |
Available Items
| Part Number | L1 | L2 | L3 | SW | D1 | D2 | D3 | D4 | D5 | |
| ISO 20 | 26 | 12 | 9 | 10 | 12 | 9 | 6 | 8.5 | M8 | |
| ISO 2O HAUSER | 26 | 18.15 | 16.4 | 8 | 10 | 6 | 3.5 | —— | M6 | |
| ISO 25 | 28 | 12 | 9 | 11 | 13 | 11 | 7 | 8.8 | M8 | |
Available Items
| Part Number | d1 | D | d3 | d2 | L | L1 | T | θ | Type | Remark |
| PS-1 | 15 | 23 | 17 | 10 | 60 | 35 | M16 | 45 | BT40-1 | MAS P40T-1 |
| PS-2 | 60 | BT40-2 | MAS P40T-2 | |||||||
| PS-3 | 19 | 31 | 21 | 14 | 70 | 40 | M20 | 45 | BT45-1 | MAS P45T-1 |
| PS-4 | 60 | BT45-2 | MAS P45T-2 | |||||||
| PS-5 | 23 | 38 | 25 | 17 | 85 | 45 | M24 | 45 | BT50-1 | MAS P50T-1 |
| PS-6 | 60 | BT50-2 | MAS P50T-2 | |||||||
| PS-16 | 11 | 16.5 | 12.5 | 7 | 43 | 23 | M12 | 45 | BT30-1 | MAS P30T-1 |
| PS-17 | 60 | BT30-2 | MAS P30T-2 | |||||||
| PS-18 | 13 | 20 | 28 | 8.5 | 48 | 28 | M24 | 45 | BT35-1 | MAS P35T-1 |
| PS-19 | 60 | BT35-2 | MAS P35T-2 | |||||||
| PS-5F | 23 | 38 | 17 | 85 | 45 | 45 | BT50-1 | PS-5 | ||
| PS-6F | 60 | BT50-2 | PS-6 | |||||||
| PS-50 | 110 | 70 | 45 | BT50 | ||||||
| PS-53 | 26.187 | 85.2 | 45.2 | 1-8UNC | CAT50U | |||||
| PS-63 | 26 | 82.5 | 45 | 1-8UNC | 60 | |||||
| PS-70 | 19 | 23 | 17 | 14 | 60 | 35 | M16 | 45 | BT40 | |
| PS-72 | 15 | 16.281 | 10 | 57.15 | 32.15 | 5/8-11UNC | CAT40U | |||
| PS-0 | 23 | 38 | 25 | 17 | 85 | 45 | M24 | 90 | BT50-90 | |
| PS-08-1 | 15 | 23 | 17 | 10 | 60 | 35 | M16 | BT40-90 | ||
| PS-P | 24 | 36 | 25 | 18 | 71 | 3 | M24 | BT50 | ||
| PS-P5-1 | 15 | 23 | 17 | 10 | 50 | 25 | M16 | BT40 | ||
| PS-P10 | 11 | 16 | 12.5 | 7 | 40 | 20 | M12 | BT30 | ||
| PS-U2 | 13.7 | 20 | 13 | 8.9 | 53 | 28 | M24 | 60 | BT35 | |
| PS-G4 | 23 | 38 | 25 | 17 | 85 | 45 | 90 | BT50 | ||
| PS-G5 | 15 | 23 | 17 | 10 | 54.6 | 29.6 | M16 | BT40 | ||
| PS-G45 | 28.956 | 37 | 25 | 20.828 | 65.2 | 25.2 | M24 | 45 | BT50 | PS-G41 |
| PS-G58 | 18.796 | 22 | 17 | 12.446 | 44.1 | 19.106 | M16 | BT40 | PS-G51 | |
| PS-G60 | 18.796 | 21.8 | 16.281 | 12.446 | 4.256 | 16.256 | 5/8-11UNC | CAT40U | ||
| PS-O19 | 23 | 38 | - | 17 | 85 | 45.2 | 1-8UNC | 90 | CAT50U | |
| PS-O47 | 25 | 17 | 85 | 45 | M24 | |||||
| PS-P13 | 24 | 36 | - | 18 | 71 | 31 | 1-8UNC | CAT50U | ||
| PS-H30 | 15 | 23 | 16.281 | 10 | 57.2 | 32.2 | 5/8-11UNC | 45 | CAT40U | |
| PS-B1 | 22 | 38 | 25 | 16 | 112 | 72 | M24 | 60 | BT50 | |
| PS-809 | 28 | 23 | 17 | 21 | 74 | 34 | 75 | BT50 | JIS-B6339-89 | |
| PS-805 | 19 | 1 | 54 | 29 | M16 | BT40 | JIS-B6339-89 | |||
| PS-801 | 12 | 16.5 | 12.5 | 8 | 43 | 23.4 | M12 | BT30 | JIS-B6339-89 | |
| PS-J | 14 | 20 | 13 | - | 45 | 23 | 90 | BT35 | ||
| PS-M10 | 14 | 16 | 12.5 | 10 | 40 | 22 | 45 | CAT30S | ||
| PS-R3 | 10 | 18 | 13 | 7 | 43 | 25 | BT35 | |||
| PS-C | 21 | 39 | 25 | 15 | 105.1 | 63.1 | M24 | BT50 | ||
| PS-301 | 15 | 23 | 17 | 11 | 60 | 35 | M16 | 60 | BT40 | |
| PS-Q3 | 16 | 16.5 | 12.5 | 12.5 | 31.8 | 11.8 | M12 | 45 | BT30 | |
| PS-BR*1 | 7 | 10 | 6.5 | 4 | 28 | 17 | M6 | 45 | BT15 | |
| PS-81 | 12 | 16.5 | 12.5 | 8 | 44 | 24 | M12 | R4 | BT30 CKD | |
| PS-581 | 28 | 36 | 25 | 21 | 74 | 34 | M24 | 75 | IT50 | DIN69872-B-1988 |
| PS-302 | 19 | 23 | 17 | 14 | 54 | 26 | M16 | IT40 | DIN69872-A-1988 | |
| PS-122 | 13 | 17 | 13 | 9 | 44 | 24 | M12 | IT30 | DIN69872-A-1988 | |
| PS-S27 | 18.95 | 22.5 | 17 | 12.95 | 44.25 | 19.25 | M16 | 45 | BT40 |
Available Items
