ER Collet Tool Holders With Super High Runout Accuracy 0.001mm For High Speed Machining

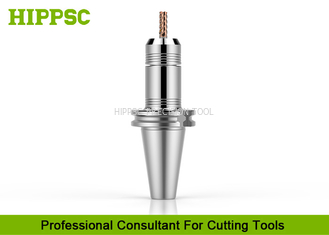

Large Image : ER Collet Tool Holders With Super High Runout Accuracy 0.001mm For High Speed Machining

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-HGER20-75

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT30	OEM/ODM:	Yes
Product Type:	HGER Tool Holder	Runout:	0.001mm
Cutting Type:	Turing, Milling, Boring, Drilling, Finishing	Material:	Special Steel

ER Collet Tool Holders With Super High Runout Accuracy 0.001mm For High Speed Machining

Ⅰ. Features And Advantages

T bolt, torque forcer +50%, protect cutter from loosing.
Excellent ring type nut, reduce wind-resistance and noise.
For high speed machining at above 30000rpm.
Suitable for lathe with 7:24 taper degree.
Adaping with HIPPSC GER NUT with patent, super high performance.
ER collect fully touch internal conical surface100%, high concentricity.
High repeat clamping accuracy.
Contacts with lathe's spinder by two sides for location and locking, higher accracy
Than other types holder.

Ⅱ. Technical Parametes

Product Name	ER Collet Chuck for high speed work
Spindle Type	BT30
Clamping Range	3mm~13 mm
Runout	0.001mm
Processing Type	High speed machining and finishing
Product Material	20CrNiMo
Hardness	HRC58~60°

Ⅲ. Product Introduction

ER Collet Tool Holders With Super High Runout Accuracy 0.001mm For High Speed Machining

Standard Items

Model number	Clamp Dia.	D1	D2	L1	L2	M	Nut	Collet	Spanner
BT30-HGER16-60	3.0-10.0	30	30.5	60	38	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-75	3.0-10.0	30	30.5	75	53	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-90	3.0-10.0	30	30.5	90	68	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-120	3.0-10.0	30	30.5	120	98	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER20-60	3.0-13.0	35	35.5	60	38	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-75	3.0-13.0	35	35.5	75	53	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-90	3.0-13.0	35	35.5	90	68	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-120	3.0-13.0	35	35.5	120	98	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER25-60	3.0-16.0	40	40.5	60	38	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-75	3.0-16.0	40	40.5	75	53	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-90	3.0-16.0	40	40.5	90	68	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-120	3.0-16.0	40	40.5	120	98	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER32-60	3.0-20.0	48	48.5	60	38	TR40*1.5	HN-GHER32	ER32	GH50
BT30-HGER32-75	3.0-20.0	48	48.5	75	53	TR40*1.5	HN-HGER32	ER32	GH50
BT30-HGER32-90	3.0-20.0	48	48.5	90	68	TR40*1.5	HN-HGER32	ER32	GH50
BT30-HGER32-120	3.0-20.0	48	48.5	120	98	TR40*1.5	HN-HGER32	ER32	GH50

BT40-HGER16-75	3.0-10.0	30	30.5	75	48	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-90	3.0-10.0	30	30.5	90	63	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-120	3.0-10.0	30	30.5	120	93	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-150	3.0-10.0	30	30.5	150	123	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER20-75	3.0-13.0	35	35.5	75	48	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-90	3.0-13.0	35	35.5	90	63	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-120	3.0-13.0	35	35.5	120	93	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-135	3.0-13.0	35	35.5	135	108	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-150	3.0-13.0	35	35.5	150	123	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER25-75	3.0-16.0	40	40.5	75	48	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-90	3.0-16.0	40	40.5	90	63	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-120	3.0-16.0	40	40.5	120	93	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-150	3.0-16.0	40	40.5	150	123	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER32-75	3.0-20.0	48	48.5	75	48	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-90	3.0-20.0	48	48.5	90	63	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-120	3.0-20.0	48	48.5	120	93	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-150	3.0-20.0	48	48.5	150	123	TR40*1.5	HN-HGER32	ER32	GH50

BT50-HGER16-105	3.0-10.0	30	30.5	105	65	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER16-135	3.0-10.0	30	30.5	135	97	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER16-165	3.0-10.0	30	30.5	165	127	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER20-105	3.0-13.0	35	35.5	105	65	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER20-135	3.0-13.0	35	35.5	135	97	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER20-165	3.0-13.0	35	35.5	165	127	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER25-105	3.0-16.0	40	40.5	105	65	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-135	3.0-16.0	40	40.5	135	97	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-165	3.0-16.0	40	40.5	165	127	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-200	3.0-16.0	40	40.5	200	162	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER32-105	3.0-20.0	48	48.5	105	65	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-135	3.0-20.0	48	48.5	135	97	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-165	3.0-20.0	48	48.5	165	127	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-200	3.0-20.0	48	48.5	200	162	TR40*1.5	HN-HGER32	ER32	GH50

GER Nut

Stype of Nuts	Model Number	D	Spanner
HGER	HN-HGER16	30	GH30
	HN-HGER20	32	GH32
	HN-HGER25	40	GH40
	HN-HGER32	50	GH50

G Type Spanner

Type of spanner	Model Number	A	L
G-SPANNER	GH19	19.5	120
	GH25	25	135
	GH27	27.1	135
	GH30	30	150
	GH32	32	160
	GH33	33	160
	GH35	35	170
	GH40	40	180
	GH48	48	210
	GH50	50	210
	GH55	55	300

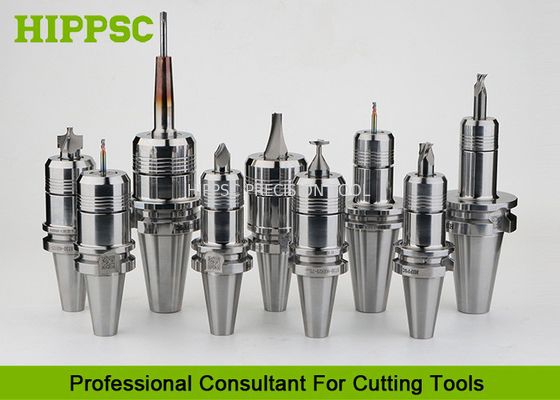

Ⅳ. Overview for HIPPSC Products

1. BT30 d 16mm High Speed HGER Tool Holder with G2.5 30000RPM.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
