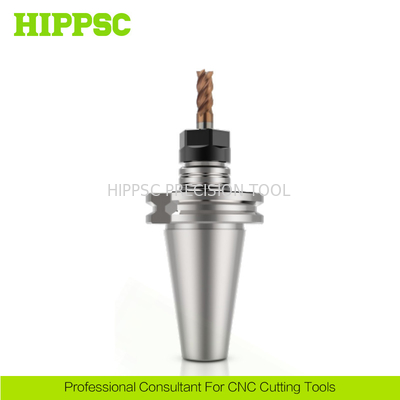

High Accurancy Easy Change CAT ER Tool Holder For CNC Machines

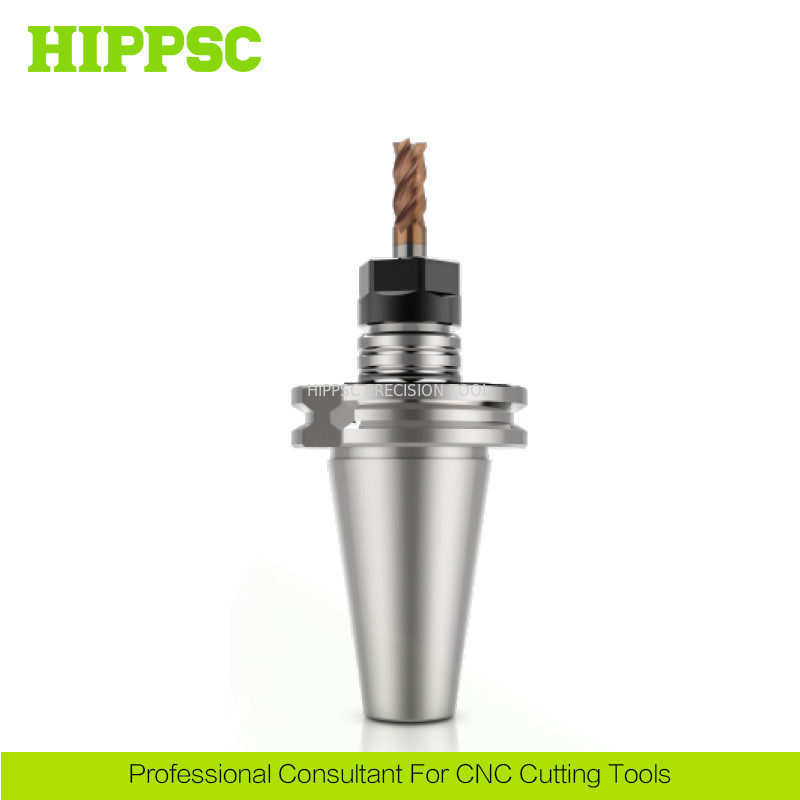

Large Image : High Accurancy Easy Change CAT ER Tool Holder For CNC Machines

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CAT40-ER16-70

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	CAT-ER	Clamp Diameter:	1~25mm
Inventory:	In Stock	Origin:	Dongguan, China
Machine Type:	ER Tool Holder	Machining:	Finishing Maching And Deep Hole Processing
Highlight:	drill Tool Holder , collet tool holder

High Accurancy Easy Change CAT ER Tool Holder For CNC Machines

Ⅰ. Features And Advantages

1. Non-eccentric nuts

2. High regidity and stability.

3. Durable, increase tools life and save cost

4. High surface quality, finishing machinn

5. Holding variety of milling and drilling tools with screw bolt

6. The Arbor is holded tightly through taper shank and end face two sides

Ⅱ. Technical Parametes

Product Name	ER Tool Holder
Spindle Type	CAT-ER
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20CrNiMo (Quality Alloy Steel)
Hardness	HRC48~52°

Ⅲ. Product Introduction

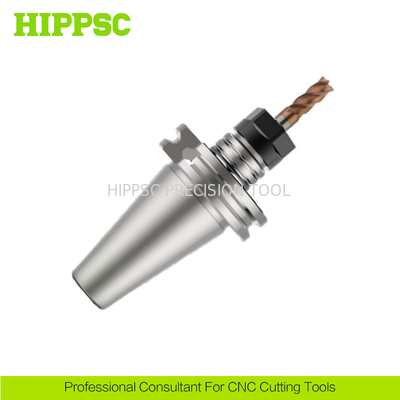

High Accurancy Easy Change CAT ER Tool Holder For CNC Machines

Standard Items

Cat.No	Holding Diamter	D1	D2	L1	L2	Nut	Collet	Spanner
CAT40-ER16-70	3.0-10.0	28	28	70	50.9	HN-ER16A	ER16	HS-ER16A
CAT40-ER16-100	3.0-10.0	28	28	100	80.9	HN-ER16A	ER16	HS-ER16A
CAT40-ER16-150	3.0-10.0	28	28	150	130.9	HN-ER16A	ER16	HS-ER16A
CAT40-ER20-70	3.0-13.0	34	34	70	50.9	HN-ER20A	ER20	HS-ER20A
CAT40-ER20-100	3.0-13.0	34	34	100	80.9	HN-ER20A	ER20	HS-ER20A
CAT40-ER20-150	3.0-13.0	34	34	150	130.9	HN-ER20A	ER20	HS-ER20A
CAT40-ER25-70	3.0-16.0	40	40	70	50.9	HN-ER25UM	ER25	HS-ER25UM
CAT40-ER25-100	3.0-16.0	40	40	100	80.9	HN-ER25UM	ER25	HS-ER25UM
CAT40-ER25-150	3.0-16.0	40	40	150	130.9	HN-ER25UM	ER25	HS-ER25UM
CAT40-ER32-70	3.0-20.0	48	48	80	60.9	HN-ER32UM	ER32	HS-ER32UM
CAT40-ER32-100	3.0-20.0	48	48	100	80.9	HN-ER32UM	ER32	HS-ER32UM
CAT40-ER32-150	3.0-20.0	48	48	150	130.9	HN-ER32UM	ER32	HS-ER32UM
CAT40-ER40-100	6.0-26.0	58	58	100	80.9	HN-ER40UM	ER40	HS-ER40UM
CAT40-ER40-150	6.0-26.0	58	58	150	130.9	HN-ER40UM	ER40	HS-ER40UM
CAT50-ER16-100	3.0-10.0	28	28	100	80.9	HN-ER16A	ER16	HS-ER16A
CAT50-ER16-150	3.0-10.0	28	28	150	130.9	HN-ER16A	ER16	HS-ER16A
CAT50-ER20-100	3.0-13.0	34	34	100	80.9	HN-ER20A	ER20	HS-ER20A
CAT50-ER20-150	3.0-13.0	34	34	150	130.9	HN-ER20A	ER20	HS-ER20A
CAT50-ER25-100	3.0-16.0	40	40	100	80.9	HN-ER25UM	ER25	HS-ER25UM
CAT50-ER25-150	3.0-16.0	40	40	150	130.9	HN-ER25UM	ER25	HS-ER25UM
CAT50-ER32-100	3.0-20.0	48	48	100	80.9	HN-ER32UM	ER32	HS-ER32UM
CAT50-ER32-150	3.0-20.0	48	48	150	130.9	HN-ER32UM	ER32	HS-ER32UM
CAT50-ER40-100	6.0-26.0	58	58	100	80.9	HN-ER40UM	ER40	HS-ER40UM
CAT50-ER40-150	6.0-26.0	58	58	150	130.9	HN-ER40UM	ER40	HS-ER40UM

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holder.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
High Accurancy Easy Change CAT ER Tool Holder For CNC Machines

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
