20CrNiMo Material High Speed BT ER Tool Holder For Deep Hole Processing

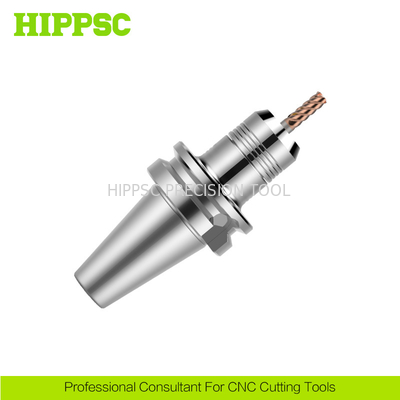

Large Image : 20CrNiMo Material High Speed BT ER Tool Holder For Deep Hole Processing

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-HGER16-60

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Taper:	AT3	Clamp Diameter:	1~20mm
Spindle Type:	BT-HGER	Product Name:	High Speed ER Tool Holder
Packing:	PE Bag, Plastic Box And Carton Box.	Machining:	Hole Processing And Milling
Highlight:	drill Tool Holder , collet tool holder

20CrNiMo Material High Speed BT ER Tool Holder For Deep Hole Processing

Ⅰ. Features And Advantages

1. High repeat accuracy

2. High regidity and stability
3. High surface quality, finishing machinng

4. Suitable for hole processing and milling

5. Durable, increase tools life and save cost.High repeat accuracy

6. T-shaped screw design, torsion increased by 50%, avoid tool drop

Ⅱ. Technical Parametes

Product Name	HGER High Speed ER Collet Chuck
Spindle Type	BT-HGER
Clamping Range	1~20mm
Runout	<0.003mm
Processing Type	Deep Hole Finishing Machining.
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

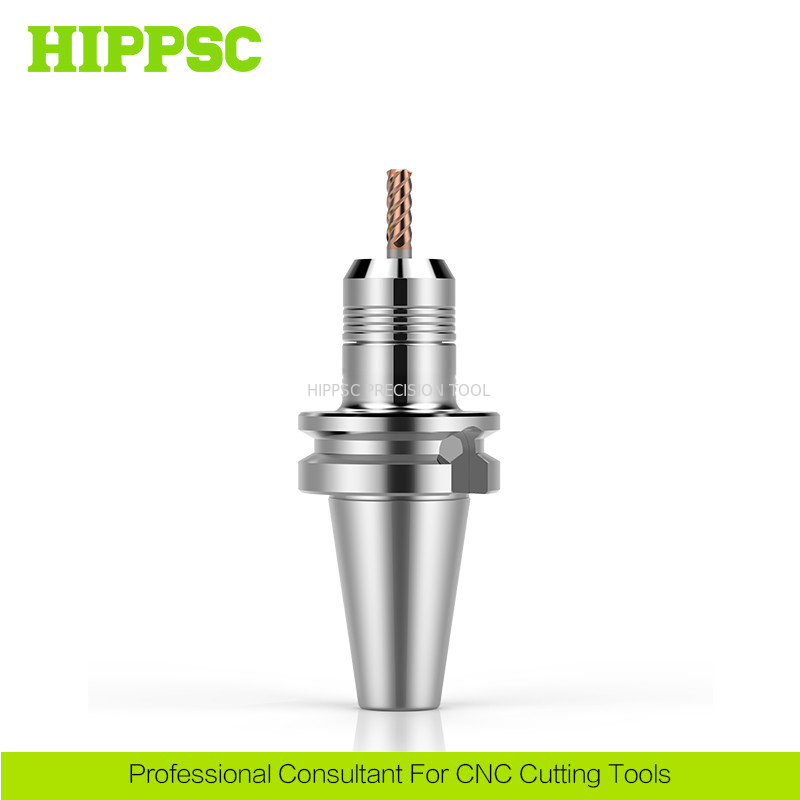

20CrNiMo Material High Speed BT ER Tool Holder For Deep Hole Processing
Standard Items

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BT30-HGER16-60	2~10	30	30.5	38	60	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-75	2~10	30	30.5	53	75	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-90	2~10	30	30.5	68	90	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER16-120	2~10	30	30.5	98	120	TR22*1.5	HN-HGER16	ER16	GH30
BT30-HGER20-60	2~13	32	32.5	38	60	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-75	2~13	32	32.5	53	75	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-90	2~13	32	32.5	68	90	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER20-120	2~13	32	32.5	98	120	TR26*1.5	HN-HGER20	ER20	GH32
BT30-HGER25-60	3~16	40	40.5	38	60	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-75	3~16	40	40.5	53	75	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-90	3~16	40	40.5	68	90	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER25-120	3~16	40	40.5	98	120	TR32*1.5	HN-HGER25	ER25	GH40
BT30-HGER32-75	3~20	50	45	53	75	TR40*1.5	HN-HGER32	ER32	GH50
BT30-HGER32-90	3~20	50	45	68	90	TR40*1.5	HN-HGER32	ER32	GH50
BT30-HGER32-120	3~20	50	45	98	120	TR40*1.5	HN-HGER32	ER32	GH50

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BT40-HGER16-75	2~10	30	30.5	48	75	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-90	2~10	30	30.5	63	90	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-120	2~10	30	30.5	93	120	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER16-150	2~10	30	30.5	123	150	TR22*1.5	HN-HGER16	ER16	GH30
BT40-HGER20-75	2~13	32	32.5	48	75	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-90	2~13	32	32.5	63	90	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-120	2~13	32	32.5	93	120	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER20-150	2~13	32	32.5	123	150	TR26*1.5	HN-HGER20	ER20	GH32
BT40-HGER25-75	3~16	40	40.5	48	75	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-90	3~16	40	40.5	63	90	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-120	3~16	40	40.5	93	120	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER25-150	3~16	40	40.5	123	150	TR32*1.5	HN-HGER25	ER25	GH40
BT40-HGER32-75	3~20	50	50.5	48	75	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-90	3~20	50	50.5	63	90	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-120	3~20	50	50.5	93	120	TR40*1.5	HN-HGER32	ER32	GH50
BT40-HGER32-150	3~20	50	50.5	123	150	TR40*1.5	HN-HGER32	ER32	GH50

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BT50-HGER16-105	2~10	30	30.5	67	105	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER16-135	2~10	30	30.5	97	135	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER16-165	2~10	30	30.5	127	165	TR22*1.5	HN-HGER16	ER16	GH30
BT50-HGER20-105	2~13	32	32.5	67	105	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER20-135	2~13	32	32.5	97	135	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER20-165	2~13	32	32.5	127	165	TR26*1.5	HN-HGER20	ER20	GH32
BT50-HGER25-105	3~16	40	40.5	67	105	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-135	3~16	40	40.5	97	135	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-165	3~16	40	40.5	127	165	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER25-200	3~16	40	40.5	162	200	TR32*1.5	HN-HGER25	ER25	GH40
BT50-HGER32-105	3~20	50	50.5	67	105	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-135	3~20	50	50.5	97	135	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-165	3~20	50	50.5	127	165	TR40*1.5	HN-HGER32	ER32	GH50
BT50-HGER32-200	3~20	50	50.5	162	200	TR40*1.5	HN-HGER32	ER32	GH50

Ⅳ. Overview for HIPPSC Products

Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
BT40 90mm Clamping Heat Shrinking Tool Holders.
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
20CrNiMo Material High Speed BT ER Tool Holder For Deep Hole Processing

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
