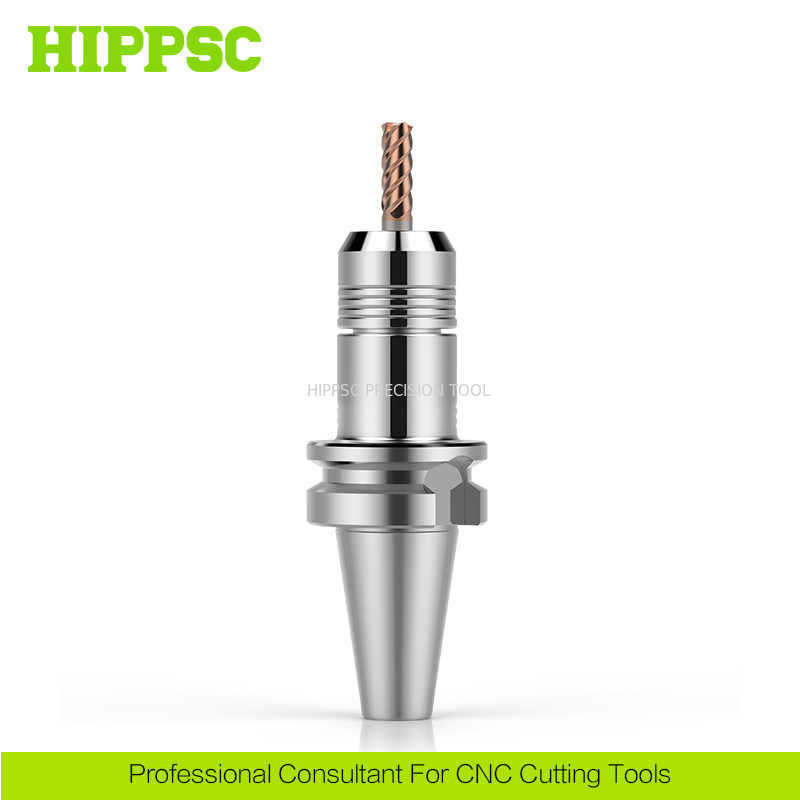

Electronics / Automotive ER Tool Holder CNC Machine High Speed

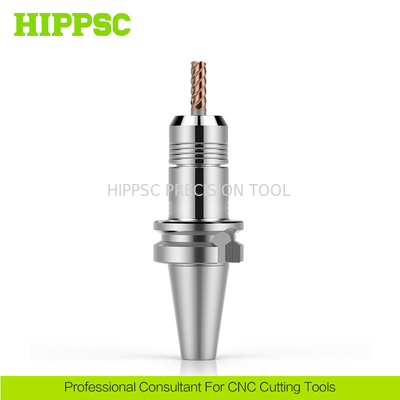

Large Image : Electronics / Automotive ER Tool Holder CNC Machine High Speed

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BBT30-HGER16-60

Payment & Shipping Terms:

Minimum Order Quantity:	1-5 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	5000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BBT-HGER	Color:	Siliver White
Hardness:	HRC58~60	Machine Type:	CNC Milling Machine
OEM&ODM:	Acceptable	Feature:	T-shaped Screw Design, Torsion Increased By 50%
Highlight:	drill Tool Holder , collet tool holder

Electronics / Automotive ER Tool Holder CNC Machine High Speed

Ⅰ. Features And Advantages

1. Non-eccentric balanced round nut
2. Low noise and low wind resistance

3. Front and rear self-adaptive positioning,

4. High precision, abundant specifications, high quality and sufficient stock
5. T-shaped screw design, torsion increased by 50%, avoid tool drop
6. Small shrinkage range and high repetitive clamping accuracy

Ⅱ. Technical Parametes

Product Name	HGER High Speed ER Collet Chuck
Spindle Type	BBT-HGER
Clamping Range	1~20mm
Runout	<0.003mm
Processing Type	Hole Machining and Milling
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

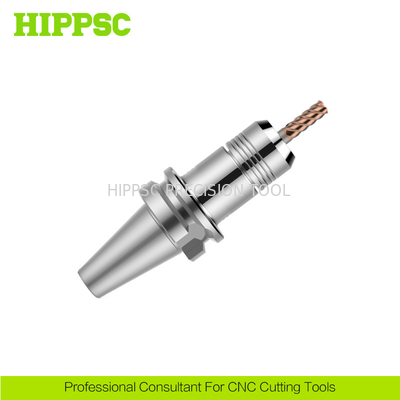

Electronics / Automotive ER Tool Holder CNC Machine High Speed

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BBT30-HGER16-60	2.0-10.0	30	30.5	39	60	TR22*1.5	HN-HGER16	ER16	GH30
BBT30-HGER16-75	2.0-10.0	30	30.5	54	75	TR22*1.5	HN-HGER16	ER16	GH30
BBT30-HGER16-90	2.0-10.0	30	30.5	69	90	TR22*1.5	HN-HGER16	ER16	GH30
BBT30-HGER16-120	2.0-10.0	30	30.5	99	120	TR22*1.5	HN-HGER16	ER16	GH30
BBT30-HGER20-60	2.0-13.0	32	32.5	39	60	TR26*1.5	HN-HGER20	ER20	GH32
BBT30-HGER20-75	2.0-13.0	32	32.5	54	75	TR26*1.5	HN-HGER20	ER20	GH32
BBT30-HGER20-90	2.0-13.0	32	32.5	69	90	TR26*1.5	HN-HGER20	ER20	GH32
BBT30-HGER20-120	2.0-13.0	32	32.5	99	120	TR26*1.5	HN-HGER20	ER20	GH32
BBT30-HGER25-60	3.0-16.0	40	40.5	39	60	TR32*1.5	HN-HGER25	ER25	GH40
BBT30-HGER25-75	3.0-16.0	40	40.5	54	75	TR32*1.5	HN-HGER25	ER25	GH40
BBT30-HGER25-90	3.0-16.0	40	40.5	69	90	TR32*1.5	HN-HGER25	ER25	GH40
BBT30-HGER25-120	3.0-16.0	40	40.5	99	120	TR32*1.5	HN-HGER25	ER25	GH40
BBT30-HGER32-60	3.0-20.0	50	45	39	60	TR40*1.5	HN-HGER32	ER32	GH50
BBT30-HGER32-75	3.0-20.0	50	45	54	75	TR40*1.5	HN-HGER32	ER32	GH50
BBT30-HGER32-90	3.0-20.0	50	45	69	90	TR40*1.5	HN-HGER32	ER32	GH50
BBT30-HGER32-120	3.0-20.0	50	45	99	120	TR40*1.5	HN-HGER32	ER32	GH50

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BBT40-HGER16-75	2.0-10.0	30	30.5	49	75	TR22*1.5	HN-HGER16	ER16	GH30
BBT40-HGER16-90	2.0-10.0	30	30.5	64	90	TR22*1.5	HN-HGER16	ER16	GH30
BBT40-HGER16-120	2.0-10.0	30	30.5	94	120	TR22*1.5	HN-HGER16	ER16	GH30
BBT40-HGER16-150	2.0-10.0	30	30.5	124	150	TR22*1.5	HN-HGER16	ER16	GH30
BBT40-HGER20-75	2.0-13.0	32	32.5	49	75	TR26*1.5	HN-HGER20	ER20	GH32
BBT40-HGER20-90	2.0-13.0	32	32.5	64	90	TR26*1.5	HN-HGER20	ER20	GH32
BBT40-HGER20-120	2.0-13.0	32	32.5	94	120	TR26*1.5	HN-HGER20	ER20	GH32
BBT40-HGER20-150	2.0-13.0	32	32.5	124	150	TR26*1.5	HN-HGER20	ER20	GH32
BBT40-HGER25-75	3.0-16.0	40	40.5	49	75	TR32*1.5	HN-HGER25	ER25	GH40
BBT40-HGER25-90	3.0-16.0	40	40.5	64	90	TR32*1.5	HN-HGER25	ER25	GH40
BBT40-HGER25-120	3.0-16.0	40	40.5	94	120	TR32*1.5	HN-HGER25	ER25	GH40
BBT40-HGER25-150	3.0-16.0	40	40.5	124	150	TR32*1.5	HN-HGER25	ER25	GH40
BBT40-HGER32-75	3.0-20.0	50	50.5	49	75	TR40*1.5	HN-HGER32	ER32	GH50
BBT40-HGER32-90	3.0-20.0	50	50.5	64	90	TR40*1.5	HN-HGER32	ER32	GH50
BBT40-HGER32-120	3.0-20.0	50	50.5	94	120	TR40*1.5	HN-HGER32	ER32	GH50
BBT40-HGER32-150	3.0-20.0	50	50.5	124	150	TR40*1.5	HN-HGER32	ER32	GH50

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	Collet	Spanner
BBT50-HGER16-105	2.0-10.0	30	30.5	68.5	105	TR22*1.5	HN-HGER16	ER16	GH30
BBT50-HGER16-135	2.0-10.0	30	30.5	98.5	135	TR22*1.5	HN-HGER16	ER16	GH30
BBT50-HGER16-165	2.0-10.0	30	30.5	128.5	165	TR22*1.5	HN-HGER16	ER16	GH30
BBT50-HGER20-105	2.0-13.0	32	32.5	68.5	105	TR26*1.5	HN-HGER20	ER20	GH32
BBT50-HGER20-135	2.0-13.0	32	32.5	98.5	135	TR26*1.5	HN-HGER20	ER20	GH32
BBT50-HGER20-165	2.0-13.0	32	32.5	128.5	165	TR26*1.5	HN-HGER20	ER20	GH32
BBT50-HGER25-105	3.0-16.0	40	40.5	68.5	105	TR32*1.5	HN-HGER25	ER25	GH40
BBT50-HGER25-135	3.0-16.0	40	40.5	98.5	135	TR32*1.5	HN-HGER25	ER25	GH40
BBT50-HGER25-165	3.0-16.0	40	40.5	128.5	165	TR32*1.5	HN-HGER25	ER25	GH40
BBT50-HGER25-200	3.0-16.0	40	40.5	163.5	200	TR32*1.5	HN-HGER25	ER25	GH40
BBT50-HGER32-105	3.0-20.0	50	50.5	68.5	105	TR40*1.5	HN-HGER32	ER32	GH50
BBT50-HGER32-135	3.0-20.0	50	50.5	98.5	135	TR40*1.5	HN-HGER32	ER32	GH50
BBT50-HGER32-165	3.0-20.0	50	50.5	128.5	165	TR40*1.5	HN-HGER32	ER32	GH50
BBT50-HGER32-200	3.0-20.0	50	50.5	163.5	200	TR40*1.5	HN-HGER32	ER32	GH50

Ⅳ. Overview for HIPPSC Products

Face Milling Adapters.
Back Lock/Side Lock Tool Holders.
Morse Taper/Tapering Tool Holders/Shanks.
Threaded/Screw-on/Thread Screw Tool Holders.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
High Speed ER/SK/GER/GSK Tool Holder for CNC Working.

Ⅴ. Shipment

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.
Electronics / Automotive ER Tool Holder CNC Machine High Speed

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
