Floating ER Tool Holder CNC Machine HGER CAT For Milling / Drilling

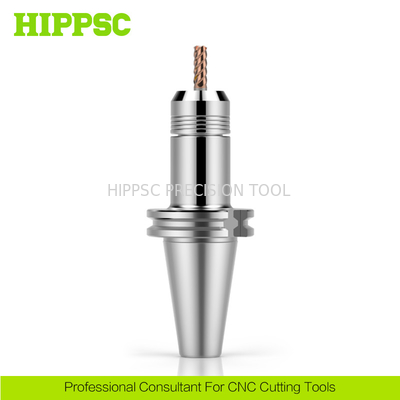

Large Image : Floating ER Tool Holder CNC Machine HGER CAT For Milling / Drilling

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	CAT40-HGER16-75

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Taper Standard:	7：24	Chucking Dia:	1~20mm
Spindle Type:	CAT-HGER	Precision:	High Precision，<0.003mm
Product Name:	HGER High Speed ER Collet Chuck	Transport:	By Sea，By Air，TNT, EMS, DHL, UPS, FedEx.
Highlight:	cnc lathe tool holder , drill Tool Holder

Floating ER Tool Holder CNC Machine HGER CAT For Milling and Drilling

Ⅰ. Features And Advantages

1. High quality and sufficient stock
2. Non-eccentric balanced round nut
3. Low noise and low wind resistance

4. High precision, abundant specifications
5. Front and rear self-adaptive positioning

6. Small shrinkage range and high repetitive clamping accuracy

Ⅱ. Technical Parametes

Product Name	High Speed ER Tool Holder
Spindle Type	CAT
Clamping Range	1mm~20mm
Run-Out	0.003mm
Processing Type	Endmilling, Face mill, Finishing, Drilling
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

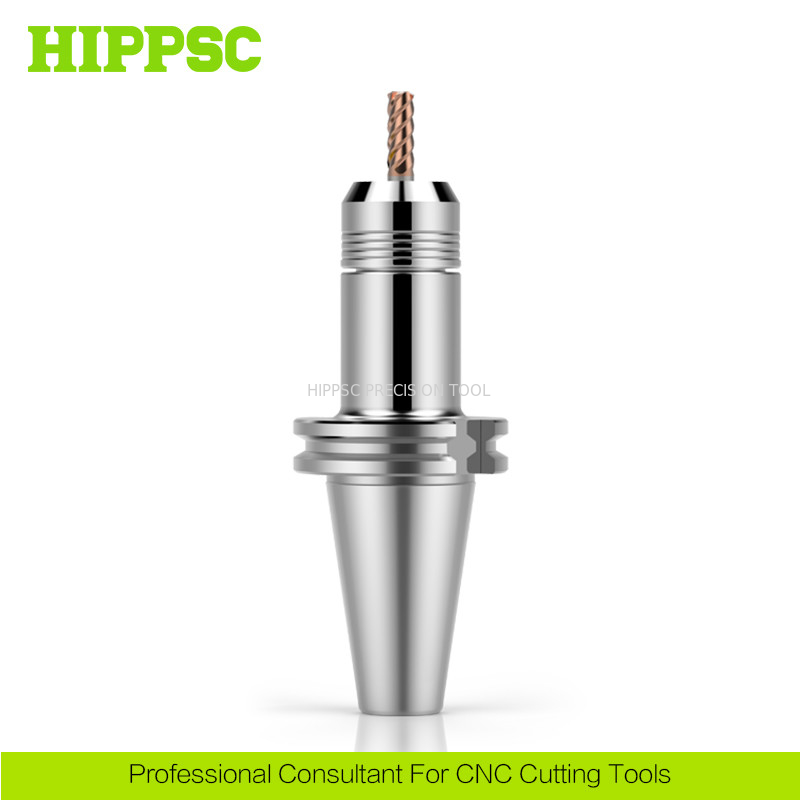

Floating ER Tool Holder CNC Machine HGER CAT For Milling / Drilling

Standard Items

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Nut	collet	Spanner
CAT40-HGER16-75	2.0-10.0	30	30.5	55.9	75	TR22*1.5	HN-HGER16	ER16	GH30
CAT40-HGER16-90	2.0-10.0	30	30.5	70.9	90	TR22*1.5	HN-HGER16	ER16	GH30
CAT40-HGER16-150	2.0-10.0	30	30.5	130.9	150	TR22*1.5	HN-HGER16	ER16	GH30
CAT40-HGER20-75	2.0-13.0	32	32.5	55.9	75	TR26*1.5	HN-HGER20	ER20	GH32
CAT40-HGER20-90	2.0-13.0	32	32.5	70.9	90	TR26*1.5	HN-HGER20	ER20	GH32
CAT40-HGER20-150	2.0-13.0	32	32.5	130.9	150	TR26*1.5	HN-HGER20	ER20	GH32
CAT40-HGER25-75	3.0-16.0	40	40.5	55.9	75	TR32*1.5	HN-HGER25	ER25	GH40
CAT40-HGER25-90	3.0-16.0	40	40.5	70.9	90	TR32*1.5	HN-HGER25	ER25	GH40
CAT40-HGER25-150	3.0-16.0	40	40.5	130.9	150	TR32*1.5	HN-HGER25	ER25	GH40
CAT40-HGER32-75	3.0-20.0	50	50.5	55.9	75	TR40*1.5	HN-HGER32	ER32	GH50
CAT40-HGER32-90	3.0-20.0	50	50.5	70.9	90	TR40*1.5	HN-HGER32	ER32	GH50
CAT40-HGER32-150	3.0-20.0	50	50.5	130.9	150	TR40*1.5	HN-HGER32	ER32	GH50
CAT50-HGER16-105	3.0-10.0	30	30.5	85.9	105	TR22*1.5	HN-HGER16	ER16	GH30
CAT50-HGER16-135	3.0-10.0	30	30.5	115.9	135	TR22*1.5	HN-HGER16	ER16	GH30
CAT50-HGER16-165	3.0-10.0	30	30.5	145.9	165	TR22*1.5	HN-HGER16	ER16	GH30
CAT50-HGER20-105	3.0-13.0	32	32.5	85.9	105	TR26*1.5	HN-HGER20	ER20	GH32
CAT50-HGER20-135	3.0-13.0	32	32.5	115.9	135	TR26*1.5	HN-HGER20	ER20	GH32
CAT50-HGER20-165	3.0-13.0	32	32.5	145.9	165	TR26*1.5	HN-HGER20	ER20	GH32
CAT50-HGER25-105	3.0-16.0	40	40.5	85.9	105	TR32*1.5	HN-HGER25	ER25	GH40
CAT50-HGER25-135	3.0-16.0	40	40.5	115.9	135	TR32*1.5	HN-HGER25	ER25	GH40
CAT50-HGER25-165	3.0-16.0	40	40.5	145.9	165	TR32*1.5	HN-HGER25	ER25	GH40
CAT50-HGER32-105	3.0-20.0	50	50.5	85.9	105	TR40*1.5	HN-HGER32	ER32	GH50
CAT50-HGER32-135	3.0-20.0	50	50.5	115.9	135	TR40*1.5	HN-HGER32	ER32	GH50
CAT50-HGER32-165	3.0-20.0	50	50.5	145.9	165	TR40*1.5	HN-HGER32	ER32	GH50

Ⅳ. Overview for HIPPSC Products

1. Back Lock/Side Lock Tool Holders.

2. Threaded/Screw-on/Thread Screw Tool Holders.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.

4. BT50 With16mm Diameter Hydraulic Tool Holder with L 140mm.

5. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.

6. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

7. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.

8. Enough Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer's demand.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

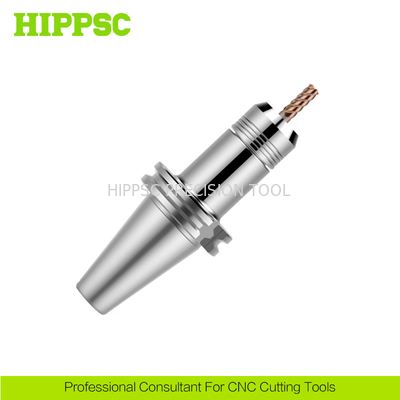

Floating ER Tool Holder CNC Machine HGER CAT For Milling / Drilling

PE Bag.                                       Slushing oil.
Plastic Box.                                  Adhesive Tape.
Carton Box.                                 Packing Belt.

Ⅶ. Warehouse

1.   Quick response and On-time dispatchment, Fast Lead time.
2.   Products Must be Inspected Several Times Before Sending To Customer.
3.   High Standard Equipments and Gauges For Examing Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Professional Equipments, Special Technology, Experienced Workers.
2.   Supplying OEM&ODM , Custom Made,  Professional suggestion and Consultation.
3.   One Station Service For CNC Cutting Tools Using.

4. Warranty 12 Months (Negotiable), Free Repairing Service.
