Detailed Product Description

Collet Type:	SK	Taper Tolerance:	AT3
Spindle Type:	SK-GSK	Coating:	Coating Treatment
Transport:	By Sea; By Air; By Train/Truck.	Feature:	Single Side 4 Degree Cylinder, Clamp With Large Clamping Force
Highlight:	cnc lathe tool holder , drill Tool Holder

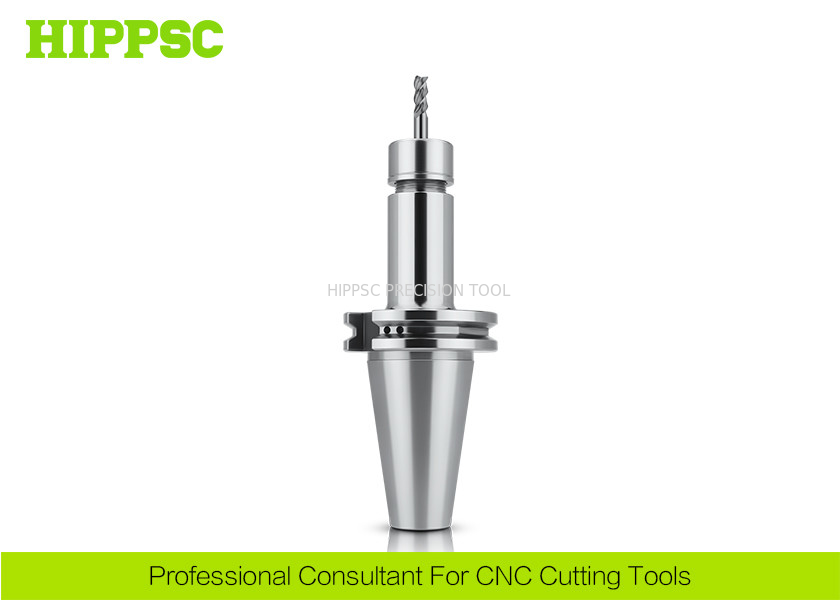

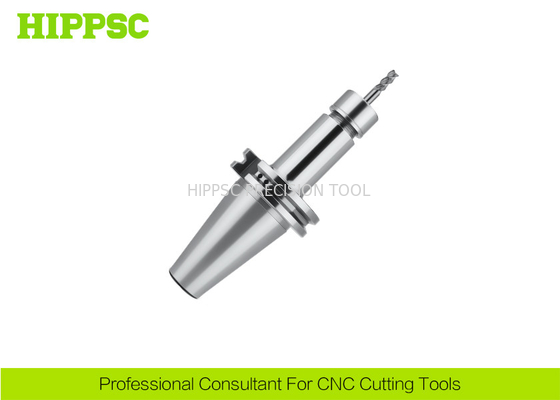

Drill Tool Holder ER Tool Holder High Precision With High Speed Cutting

Ⅰ. Features And Advantages

High speed, low running noise
Easy installation, save work time and cost
Suitable for using on engraving and milling machinin
Single side 4 degree cylinder, clamp with large clamping force
High precision, various specifications, high quality and sufficient stock
High stability and high accuracy, contribute to high surface quality of work piece

Ⅱ. Technical Parametes

Product Name	GSK High Speed SK Collet Chuck
Spindle Type	SK
Clamping Range	1~25mm
Runout	<0.003mm
Processing Type	High speed and precision machining.
Product Material	20Crnimo
Hardness	HRC58~60°

Ⅲ. Product Introduction

Drill Tool Holder ER Tool Holder High Precision With High Speed Cutting

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Collet	COLLET PULLER	Spanner	Nut
SK40-GSK6-75	2.0-6.0	19.5	20	55.9	75	M15.5*1.0	SK6	CX6	GH19	HN-GSK6
SK40-GSK6-90	2.0-6.0	19.5	20	70.9	90	M15.5*1.0	SK6	CX6	GH19	HN-GSK6
SK40-GSK6-120	2.0-6.0	19.5	20	100.9	120	M15.5*1.0	SK6	CX6	GH19	HN-GSK6
SK40-GSK10-75	3.0-10.0	27.1	27.6	55.9	75	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK40-GSK10-90	3.0-10.0	27.1	27.6	70.9	90	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK40-GSK10-120	3.0-10.0	27.1	27.6	100.9	120	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK40-GSK10-150	3.0-10.0	27.1	27.6	130.9	150	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK40-GSK13-75	3.0-13.0	33	33.5	55.9	75	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK40-GSK13-90	3.0-13.0	33	33.5	70.9	90	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK40-GSK13-120	3.0-13.0	33	33.5	100.9	120	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK40-GSK13-150	3.0-13.0	33	33.5	130.9	150	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK40-GSK16-75	3.0-16.0	40	40.5	55.9	75	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK40-GSK16-90	3.0-16.0	40	40.5	70.9	90	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK40-GSK16-120	3.0-16.0	40	40.5	100.9	120	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK40-GSK16-150	3.0-16.0	40	40.5	130.9	150	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK40-GSK20-75	4.0-20.0	48	48.5	55.9	75	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK40-GSK20-90	4.0-20.0	48	48.5	70.9	90	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK40-GSK20-120	4.0-20.0	48	48.5	100.9	120	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK40-GSK20-150	4.0-20.0	48	48.5	130.9	150	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK40-GSK25-90	6.0-25.0	55	55.5	70.9	90	M45.0*1.0	SK25	CX25	GH55	HN-GSK25
SK40-GSK25-120	6.0-25.0	55	55.5	100.9	120	M45.0*1.0	SK25	CX25	GH55	HN-GSK25

Cat.No	Chucking Dia	D1	D2	L1	L2	M	Collet	COLLET PULLER	Spanner	Nut
SK50-GSK10-105	3.0-10.0	27.1	27.6	85.9	105	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK50-GSK10-135	3.0-10.0	27.1	27.6	115.9	135	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK50-GSK10-165	3.0-10.0	27.1	27.6	145.9	165	M21.5*1.0	SK10	CX10	GH27	HN-GSK10
SK50-GSK13-105	3.0-13.0	33	33.5	85.9	105	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK50-GSK13-135	3.0-13.0	33	33.5	115.9	135	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK50-GSK13-165	3.0-13.0	33	33.5	145.9	165	M27.0*1.0	SK13	CX13	GH33	HN-GSK13
SK50-GSK16-105	3.0-16.0	40	40.5	85.9	105	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK50-GSK16-135	3.0-16.0	40	40.5	115.9	135	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK50-GSK16-165	3.0-16.0	40	40.5	145.9	165	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK50-GSK16-200	3.0-16.0	40	40.5	180.9	200	M32.0*1.0	SK16	CX16	GH40	HN-GSK16
SK50-GSK20-105	4.0-20.0	48	48.5	85.9	105	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK50-GSK20-135	4.0-20.0	48	48.5	115.9	135	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK50-GSK20-165	4.0-20.0	48	48.5	145.9	165	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK50-GSK20-200	4.0-20.0	48	48.5	180.9	200	M40.0*1.0	SK20	CX20	GH48	HN-GSK20
SK50-GSK25-105	6.0-25.0	55	55.5	85.9	105	M45.0*1.0	SK25	CX25	GH55	HN-GSK25
SK50-GSK25-135	6.0-25.0	55	55.5	115.9	135	M45.0*1.0	SK25	CX25	GH55	HN-GSK25
SK50-GSK25-165	6.0-25.0	55	55.5	145.9	165	M45.0*1.0	SK25	CX25	GH55	HN-GSK25
SK50-GSK25-200	6.0-25.0	55	55.5	180.9	200	M45.0*1.0	SK25	CX25	GH55	HN-GSK25

ER Collet

ER20	ER20-2	1.0-2.0
	-3	2.0-3.0
	-4	3.0-4.0
	-5	4.0-5.0
	-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
	-11	10.0-11.0
	-12	11.0-12.0
	-13	12.0-13.0

ER Nut

Drill Tool Holder ER Tool Holder High Precision With High Speed Cutting

Type of Nuts		Model No.	D	L	M	Spanner
ER NUT	A	HN-ER11A	19	11.5	M14*0.75	ER11A
		HN-ER16A	28	17	M22*1.5	ER16A
		HN-ER20A	34	19	M25*1.5	ER20A
	M	HN-ER8M	12	10.8	M10*0.75	ER8M
		HN-ER11M	16	12	M13*0.75	ER11M
		HN-ER16M	22	18	M19*1.0	ER16M
		HN-ER20M	28	19	M24*1.0	ER20M
		HN-ER25M	35	20	M30*1.0	ER25M
	UM	HN-ER25UM	42	20	M32*1.5	ER25UM
		HN-ER32UM	50	23	M40*1.5	ER32UM
		HN-ER40UM	63	26	M50*1.5	ER40UM
		HN-ER50UM	78	35.3	M64*2.0	ER50UM

Ⅳ. Overview for HIPPSC Products
