3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing

China 3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing supplier
3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing supplier 3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing supplier

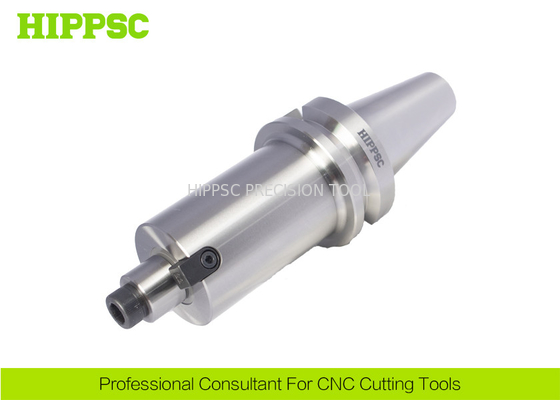

Large Image :  3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BBT30-FMA25.4-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: BBT Runout: 3μm
Material: 20CrNiMo Product Type: Face Milling Chuck
Application: Precision Finishing Cutting Type: EndMilling, Reaming, Drilling
Highlight:

turning tool inserts

,

indexable carbide inserts

CNC Machining Tool Holder Face Milling Chuck with High Speed Cutting



Ⅰ​. Features

  1. Super Running And Repeat Accuacy.
  2. Save time and cost, expand tools work life.
  3. Fine grinding of inner and outer circles
  4. Round axle and bilateral clamp positioning
  5. Easy to operate, fast and convenient clamping
  6. High precision, many specifications, high quality, sufficient stock​

Ⅱ. Technical Parametes ​


Product Name

Face Milling Chuck

Spindle Type

BBT

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°

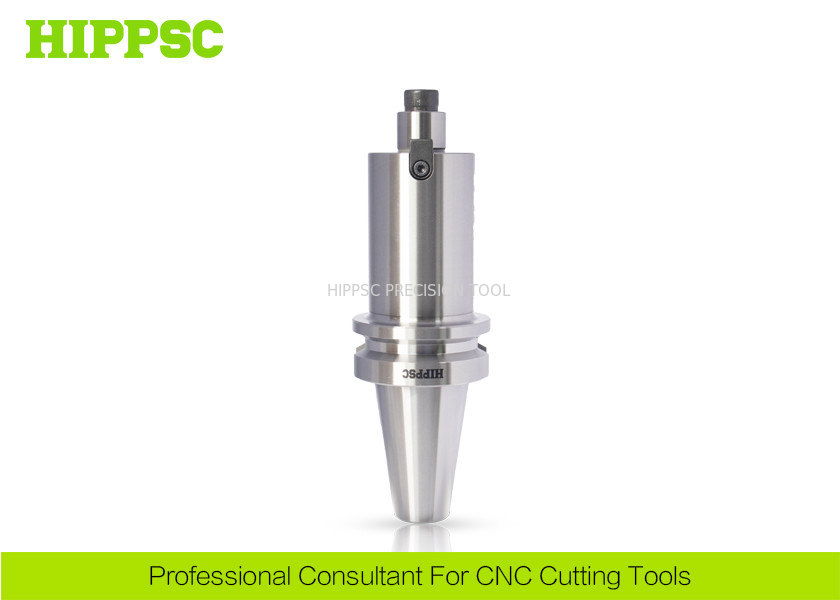

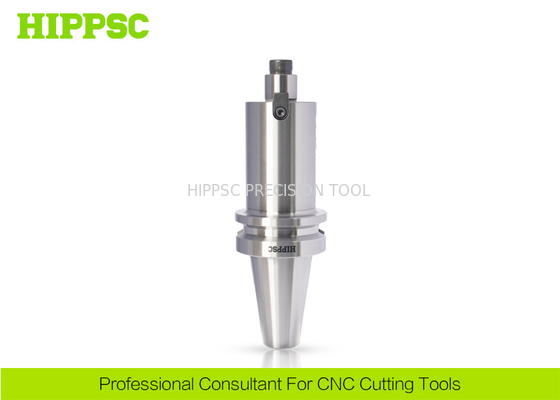

Ⅲ. Product Show


CAD



3μM Runout CNC Machining Tool Holder Face Milling Chuck Precision Finishing


Available Standard Items




Cat.No		 D1 D2 D3 L1 L2 K1 K2 M FIG
BBT30-FMA25.4-45 25.4 31.5 50 45 20 4.52 9.52 M12*1.75 1
BBT30-FMA25.4-60 25.4 31.5 50 60 20 4.52 9.52 M12*1.75 1
BBT30-FMA31.75-45 31.75 41 60 45 22 6.7 12.7 M16*2 1
BBT40-FMA25.4-45 25.4 31.5 50 45 20 4.52 9.52 M12*1.75 1
BBT40-FMA25.4-60 25.4 31.5 50 60 20 4.52 9.52 M12*1.75 1
BBT40-FMA25.4-90 25.4 31.5 50 90 20 4.52 9.52 M12*1.75 1
BBT40-FMA25.4-105 25.4 31.5 50 105 20 4.52 9.52 M12*1.75 1
BBT40-FMA31.75-45 31.75 41 60 45 22 6.7 12.7 M16*2 1
BBT40-FMA31.75-75 31.75 41 60 75 22 6.7 12.7 M16*2 1
BBT40-FMA31.75-90 31.75 41 60 90 22 6.7 12.7 M16*2 1
BBT40-FMA38.1-60 38.1 44.5 75 60 25 8.87 15.87 M20*2.5 1
BBT40-FMA50.8-60 50.8 65 98 60 36 9.75 19.05 M24*3 1
BBT40-FMA47.625-65 47.625 - 98 65 32 12.5 25.4 M24*3 2
BBT50-FMA25.4-45 25.4 31.5 50 45 20 4.52 9.52 M12*1.75 1
BBT50-FMA25.4-90 25.4 31.5 50 90 20 4.52 9.52 M12*1.75 1
BBT50-FMA25.4-150 25.4 31.5 50 150 20 4.52 9.52 M12*1.75 1
BBT50-FMA31.75-45 31.75 41 60 45 22 6.7 12.7 M16*2 1
BBT50-FMA31.75-75 31.75 41 60 75 22 6.7 12.7 M16*2 1
BBT50-FMA31.75-105 31.75 41 60 105 22 6.7 12.7 M16*2 1
BBT50-FMA38.1-45 38.1 44.5 75 45 25 8.87 15.87 M20*2.5 1
BBT50-FMA38.1-75 38.1 44.5 75 75 25 8.87 15.87 M20*2.5 1
BBT50-FMA50.8-45 50.8 65 98 45 36 9.75 19.05 M24*3 1
BBT50-FMA50.8-75 50.8 65 98 75 36 9.75 19.05 M24*3 1
BBT50-FMA47.625-75 47.625 - 128.75 75 32 12.5 25.4 M24*3 2



Ⅳ. Products Overview


  1. BT40 Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Torque/Round/Circle Spanner Wrenche/Keys.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Edge finder/Tool Holder Tightening Fixture/Table.
  6. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  7. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Ⅴ​. Shipment​

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Use Gauges For Examing Accuracy and Technical Factors.
  2. Super less error on delivering Goods and Items of Order.
  3. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  4. Strict and Careful Inspection Before Delivering Goods to Our customers .

Ⅷ. Warranty

  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
