High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate

China High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate supplier
High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate supplier High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate supplier

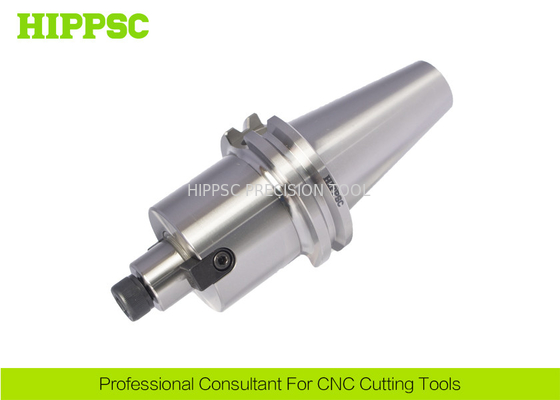

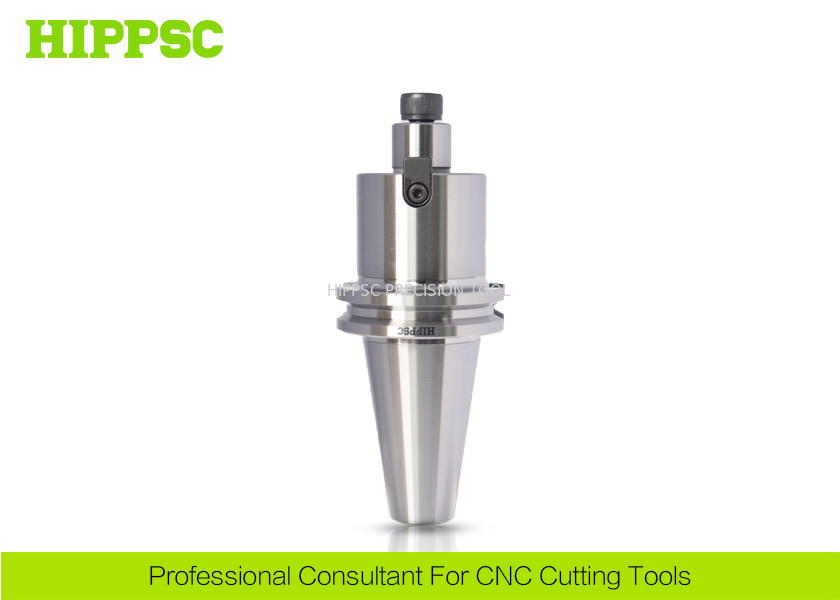

Large Image :  High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: CAT40-FMA25.4-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: CAT Color: Silver White
Product Type: Face Milling Chuck Suitable: Suitable For Milling
Usage: EndMilling, Reaming, Drilling Advantage: Round Axle And Bilateral Clamp Positioning
Highlight:

turning tool inserts

,

indexable carbide inserts

High Speed Cutting Face Milling Chuck Milling Machine Tool Holders



Ⅰ​. Features

  1. Super Running And Repeat Accuacy.
  2. Save time and cost, expand tools work life.
  3. Fine grinding of inner and outer circles
  4. Round axle and bilateral clamp positioning
  5. Easy to operate, fast and convenient clamping
  6. High precision, many specifications, high quality, sufficient stock​

Ⅱ. Technical Parametes ​


Product Name

Face Milling Chuck

Spindle Type

 CAT

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°


Ⅲ. Product Show


CAD



High Speed Cnc Machine Cutting Tools Face Milling Chuck Durable Easy To Operate


Available Standard Items






Cat.No		 D1 D2 D3 L1 L2 K1 K2 M FIG
CAT40-FMA25.4-45 25.4 31.5 50 45 20 4.52 9.52 M12*1.75 1
CAT40-FMA31.75-50 31.75 41 60 50 22 6.7 12.7 M16*2 1
CAT40-FMA38.1-50 38.1 44.5 75 50 25 8.87 15.87 M20*2.5 1
CAT50-FMA25.4-45 25.4 31.5 50 45 20 4.52 9.52 M12*1.75 1
CAT50-FMA25.4-100 25.4 31.5 50 100 20 4.52 9.52 M12*1.75 1
CAT50-FMA25.4-150 25.4 31.5 50 150 20 4.52 9.52 M12*1.75 1
CAT50-FMA31.75-45 31.75 41 60 45 22 6.7 12.7 M16*2 1
CAT50-FMA31.75-100 31.75 41 60 100 22 6.7 12.7 M16*2 1
CAT50-FMA31.75-150 31.75 41 60 150 22 6.7 12.7 M16*2 1
CAT50-FMA38.1-50 38.1 44.5 75 50 25 8.87 15.87 M20*2.5 1
CAT50-FMA38.1-100 38.1 44.5 75 100 25 8.87 15.87 M20*2.5 1
CAT50-FMA38.1-150 38.1 44.5 75 150 25 8.87 15.87 M20*2.5 1
CAT50-FMA50.8-50 50.8 65 98 50 36 9.75 19.05 M24*3 1
CAT50-FMA50.8-100 50.8 65 98 100 36 9.75 19.05 M24*3 1
CAT50-FMA50.8-150 50.8 65 98 150 36 9.75 19.05 M24*3 1
CAT50-FMA47.62-75 47.62 - 128.75 75 32 12.5 25.4 M24*3 2



Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Torque/Round/Circle Spanner Wrenche/Keys.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Edge finder/Tool Holder Tightening Fixture/Table.
  6. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  7. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Ⅴ​. Shipment​

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Use Gauges For Examing Accuracy and Technical Factors.
  2. Super less error on delivering Goods and Items of Order.
  3. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  4. Strict and Careful Inspection Before Delivering Goods to Our customers .

Ⅷ. Warranty

  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
