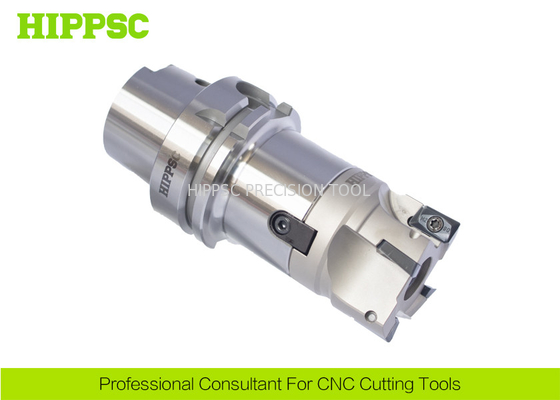

Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine

China Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine supplier
Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine supplier Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine supplier

Large Image :  Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-FMA25.4-60

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Taper: 1:10 Spindle Type: HSK-A
Color: Silver White Product Type: Face Milling Chuck
Application: EndMilling, Reaming, Drilling Advantage: Round Axle And Bilateral Clamp Positioning
Highlight:

turning tool inserts

,

indexable carbide inserts

Milling Machine Tool Holders Face Milling Chuck for CNC Milling Machine



Ⅰ​. Features

  1. Run-out ≤ 0.003 μm.
  2. Save time and cost, expand tools work life.
  3. Fine grinding of inner and outer circles
  4. Round axle and bilateral clamp positioning
  5. Easy to operate, fast and convenient clamping
  6. High precision, many specifications, high quality, sufficient stock​

Ⅱ. Technical Parametes ​


Product Name

Face Milling Chuck

Spindle Type

 HSK-A

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20Crnimo

Hardness

HRC58~60°


Ⅲ. Product Show


CAD



Face Milling Chuck Milling Machine Tool Holders 0.003μM Accuracy For CNC Machine


Available Standard Items




Cat. No		 D1 D2 D3 L1 L2 K1 K2 M FIG
HSK63A-FMA25.4-60 25.4 31.5 50 60 20 4.52 9.52 M12*1.75 1
HSK63A-FMA31.75-65 31.75 41 60 65 22 6.7 12.7 M16*2.0 1
HSK63A-FMA38.1-70 38.1 44.5 75 70 25 8.87 15.87 M20*2.5 1
HSK100A-FMA25.4-60 25.4 31.5 50 60 20 4.52 9.52 M12*1.75 1
HSK100A-FMA31.75-65 31.75 41 60 65 22 6.7 12.7 M16*2.0 1
HSK100A-FMA38.1-75 38.1 44.5 80 75 25 8.87 15.87 M20*2.5 1
HSK100A-FMA47.625-95 47.625 - 128.75 95 32 12.5 25.4 M24*3.0 2
HSK100A-FMA50.8-80 50.8 65 98 80 36 9.75 19.05 M24*3.0 1


Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Torque/Round/Circle Spanner Wrenche/Keys.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Edge finder/Tool Holder Tightening Fixture/Table.
  6. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  7. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Ⅴ​. Shipment​

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Use Gauges For Examing Accuracy and Technical Factors.
  2. Super less error on delivering Goods and Items of Order.
  3. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  4. Strict and Careful Inspection Before Delivering Goods to Our customers .

Ⅷ. Warranty

  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
