Product Details:
Payment & Shipping Terms:
|
| Taper: | CAT | Length: | 90mm |
|---|---|---|---|
| OEM: | Available | Runout: | <0.003mm |
| Appearance: | Coating Treatment | Application: | Maching Of Mould, Electronics, Automotive |
| Highlight: | shrink fit tool holders,adjustable tool holder |
||
Shrink Tool Holder Chuck Fast Cutting Speed With Good Coating
Ⅰ. Features
1. High precision,high quality
2. many specifications, sufficient stock
3. Fine grinding of inner and outer circles
4. Round axle and bilateral clamp positioning
5. Easy to operate, fast and convenient clamping
6. High stability and high accuracy, contribute to high surface quality of work piece.
Ⅱ. Technical Parametes
|
Product Name |
Shrink Fit Chuck |
|
Spindle Type |
CAT-SRS |
|
Clamping Range |
4~32mm |
|
Runout |
0.003mm |
|
Machining Type |
Milling and drilling |
|
Product Material |
Special Steel |
|
Hardness |
HRC48~52° |
| Taper Standard | AT3 |

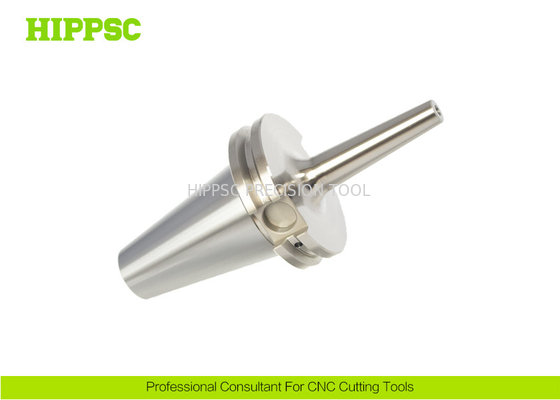

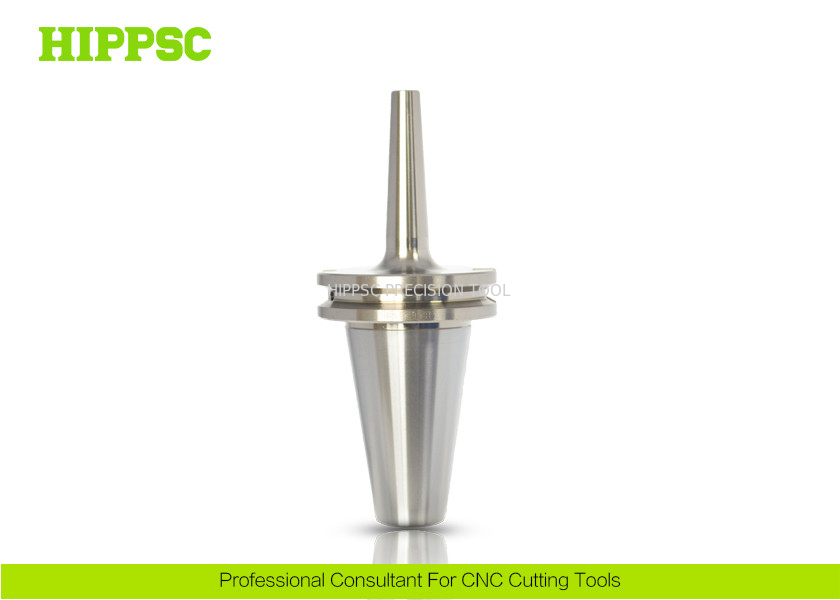

Ⅲ. Product Show
Available Standard Items
| Type | D1 | D2 | D3 | L1 | L2 | N | A |
| CAT40-SRS04-80TRN | 4 | 10 | 16 | 80 | - | - | 3° |
| CAT40-SRS06-80TRN | 6 | 12 | 18 | 80 | - | - | 3° |
| CAT40-SRS06-120TRN | 6 | 12 | 22 | 120 | - | - | 3° |
| CAT40-SRS06-160TRN | 6 | 12 | 26 | 160 | - | - | 3° |
| CAT40-SRS08-80TRN | 8 | 14 | 20 | 80 | 40 | 10 | 3° |
| CAT40-SRS08-120TRN | 8 | 14 | 24 | 120 | 40 | 10 | 3° |
| CAT40-SRS08-160TRN | 8 | 14 | 28 | 160 | 40 | 10 | 3° |
| CAT40-SRS10-80TRN | 10 | 16 | 22 | 80 | 46 | 10 | 3° |
| CAT40-SRS10-120TRN | 10 | 16 | 26 | 120 | 46 | 10 | 3° |
| CAT40-SRS10-160TRN | 10 | 16 | 30 | 160 | 46 | 10 | 3° |
| CAT40-SRS12-90TRN | 12 | 18 | 24 | 90 | 50 | 10 | 3° |
| CAT40-SRS12-120TRN | 12 | 18 | 27 | 120 | 50 | 10 | 3° |
| CAT40-SRS12-160TRN | 12 | 18 | 30 | 160 | 50 | 10 | 3° |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Fast Delivery
Ⅷ. Warranty
