Product Details:
Payment & Shipping Terms:
|
| Taper: | HSK | Color: | Silver White |
|---|---|---|---|
| OEM: | Available | Hardness: | HRC48~52 |
| Application: | Maching Of Mould, Electronics, Automotive | Advantage: | Repeated Clamping More Than 2000 Times |
| Highlight: | shrink fit tool holders,adjustable tool holder |
||

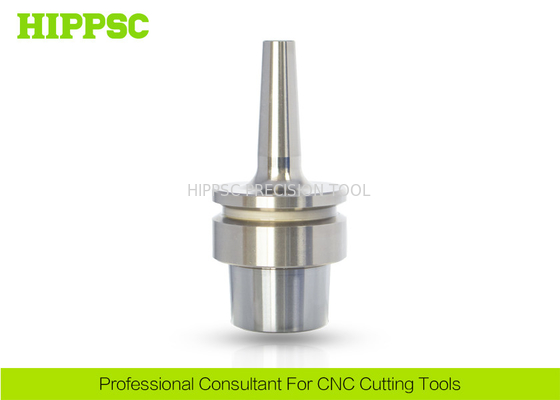

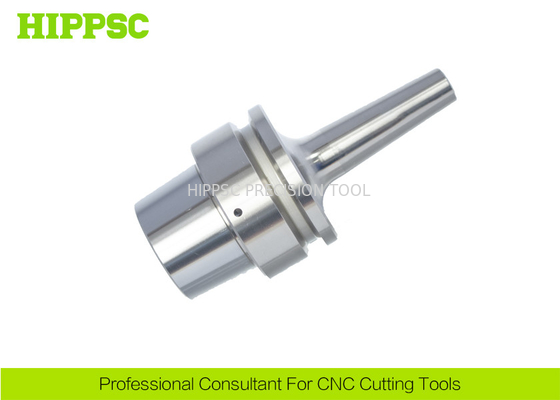

Machine Tool Holders Shrink Fit Chuck With Coating Treatment
Ⅰ. Features
1. High precision,high quality
2. Repeated clamping more than 2000 times
3. Sintering of thermal expansion equipment, simple and fast clampin
4. Anti-interference design is rigid, suitable for deep cavity processing
5. High precision, abundant specifications, high quality and sufficient stock
6. Surface special treatment can effectively prevent carbon deposition.
Ⅱ. Technical Parametes
|
Product Name |
Shrink Fit Chuck |
|
Spindle Type |
HSK |
|
Clamping Range |
4~32mm |
|
Runout |
0.003mm |
|
Machining Type |
Milling and drilling |
|
Product Material |
Special Steel |
|
Hardness |
HRC48~52° |
| Taper Standard | AT3 |
Ⅲ. Product Show
Available Standard Items
| Type | D1 | D2 | D3 | L1 | L2 | N | A |
| HSK32E-SRS04-60TN | 4 | 10 | 14 | 60 | － | － | 3° |
| HSK32E-SRS06-70TN | 6 | 12 | 17 | 70 | － | － | 3° |
| HSK32E-SRS08-70TN | 8 | 14 | 19 | 70 | 40 | 10 | 3° |
| HSK32E-SRS10-80TN | 10 | 16 | 22 | 80 | 46 | 10 | 3° |
| HSK40E-SRS04-60TRN | 4 | 10 | 14 | 60 | － | － | 3° |
| HSK40E-SRS06-60TRN | 6 | 12 | 16 | 60 | － | － | 3° |
| HSK40E-SRS06-80TRN | 6 | 12 | 18 | 80 | － | － | 3° |
| HSK40E-SRS08-60TRN | 8 | 14 | 18 | 60 | 40 | 10 | 3° |
| HSK40E-SRS08-80TRN | 8 | 14 | 20 | 80 | 40 | 10 | 3° |
| HSK40E-SRS10-60TRN | 10 | 16 | 20 | 60 | 46 | 10 | 3° |
| HSK40E-SRS10-90TRN | 10 | 16 | 23 | 90 | 46 | 10 | 3° |
| HSK40E-SRS12-60TRN | 12 | 18 | 22 | 60 | 50 | 10 | 3° |
| HSK50E-SRS04-60TRN | 4 | 10 | 13 | 60 | － | － | 3° |
| HSK50E-SRS06-80TRN | 6 | 12 | 17 | 80 | － | － | 3° |
| HSK50E-SRS08-80TRN | 8 | 14 | 29 | 80 | 40 | 10 | 3° |
| HSK50E-SRS10-85TRN | 10 | 16 | 22 | 85 | 46 | 10 | 3° |
| HSK50E-SRS12-90TRN | 12 | 18 | 24 | 90 | 50 | 10 | 3° |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Fast Delivery
Ⅷ. Warranty
