Product Details:
Payment & Shipping Terms:
|
| OEM/ODM: | Yes | Spindle Type: | SK40 |
|---|---|---|---|
| Product Type: | Power Tool Holder | Runout: | 0.003mm |
| Balance: | Available | Cutting Type: | Turing, Milling, Boring, Drilling |
| Material: | Special Steel | Machining Type: | Heavy Cutting And Semi-Precision Finishing |
| Highlight: | boring bar tool holder,milling machine tool holders |
||
High Accuracy SK 40 Tool Holder Milling Cutters With Hook Spanner
Ⅰ. Features And Advantages
1. C Type Straight Collet, Provide aseismatic feature.
2. Runout 0.003mm at 4X D, good for heavy cutting.
3. Semi-finishing and fully finishing.
4. Grip force is excellent, guarantee surface quality.
Ⅱ. Technical Parametes
|
Product Name |
Power Tool Holder |
|
Spindle Type |
SK40 |
|
Clamping Range |
6/8/10/12/16/20/25 mm Metric |
| 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1'' Inch | |
|
Runout |
0.003mm |
|
Processing Type |
Heavy Cut, Rough and semi-rough machining |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Price List
| Model No. | d | D1 | D2 | L | Collet | Spanner |
| SK40-C20-90 | 20 | 53 | 63.55 | 90 | C20 | HS-C20 |
| SK40-C25-90 | 25 | 62 | 63.55 | 90 | C25 | HS-C25 |

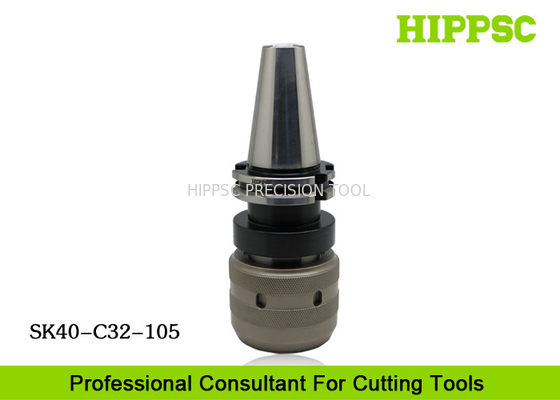

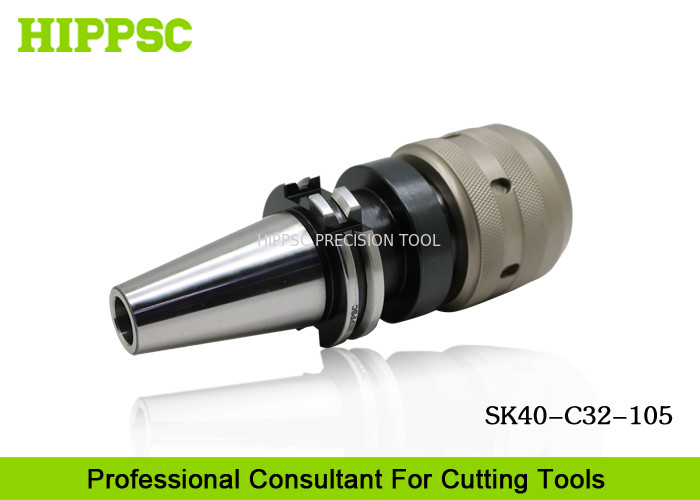

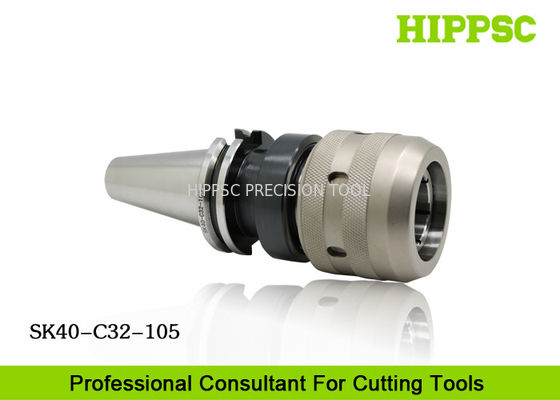

| SK40-C32-105 | 32 | 70 | 63.55 | 105 | C32 | HS-C32 |
| SK40-C32-135 | 32 | 70 | 63.55 | 135 | C32 | HS-C32 |
| SK40-C32-165 | 32 | 70 | 63.55 | 165 | C32 | HS-C32 |
| SK50-C20-105 | 20 | 53 | 97.5 | 105 | C20 | HS-C20 |
| SK50-C20-135 | 20 | 53 | 97.5 | 135 | C20 | HS-C20 |
| SK50-C20-165 | 20 | 53 | 97.5 | 165 | C20 | HS-C20 |
| SK50-C25-105 | 25 | 62 | 97.5 | 105 | C25 | HS-C25 |
| SK50-C25-135 | 25 | 62 | 97.5 | 135 | C25 | HS-C25 |
| SK50-C25-165 | 25 | 62 | 97.5 | 165 | C25 | HS-C25 |
| SK50-C32-105 | 32 | 70 | 97.5 | 105 | C32 | HS-C32 |
| SK50-C32-135 | 32 | 70 | 97.5 | 135 | C32 | HS-C32 |
| SK50-C32-165 | 32 | 70 | 97.5 | 165 | C32 | HS-C32 |
| SK50-C42-115 | 42 | 92 | 97.5 | 115 | C42 | HS-C42 |
| SK50-C42-135 | 42 | 92 | 97.5 | 135 | C42 | HS-C42 |
| SK50-C42-165 | 42 | 92 | 97.5 | 165 | C42 | HS-C42 |
Ⅳ. Overview for HIPPSC Product
1. Power Tool Holder with C type Colle ,Hydraulic Grip Tool Holder/Arbor,.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Tool Holders.
20. Indexable Tools.
