Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | NT40/DIN2080/ST | OEM/ODM: | Yes |
|---|---|---|---|
| Product Type: | Power Tool Holder | Runout: | 0.003mm |
| Balance: | Available | Cutting Type: | Turing, Milling, Boring, Drilling |
| Material: | 20CrNiMo | Application: | Heavy Cutting And Semi-Precision Finishing |
| Highlight: | boring bar tool holder,milling machine tool holders |
||

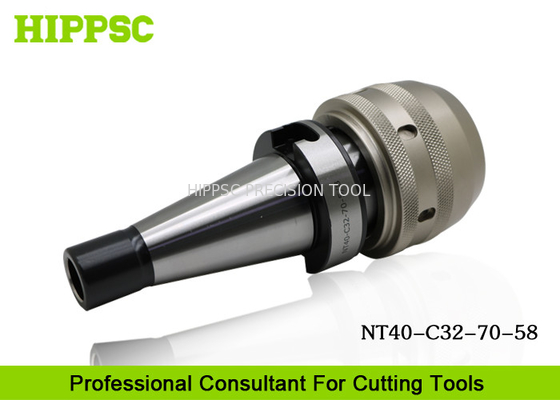

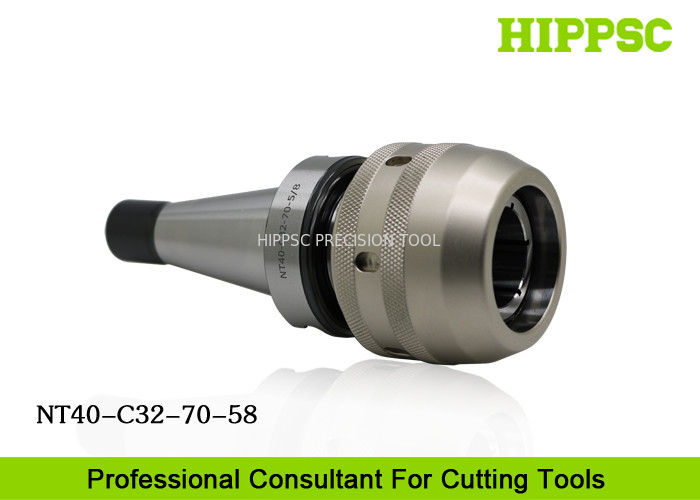

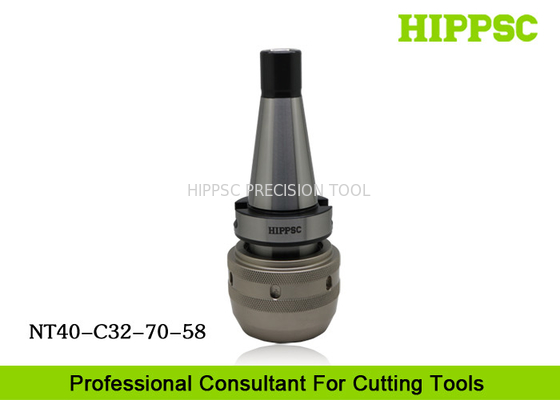

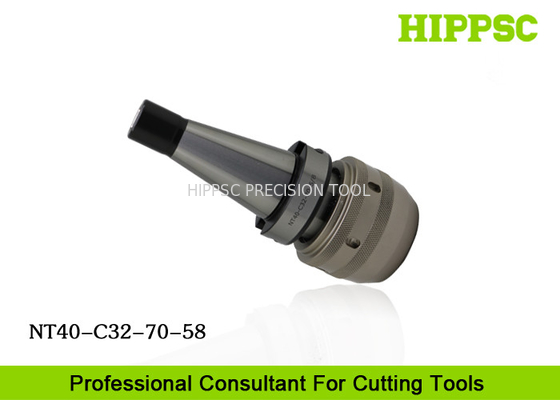

DIN2080 Boring Bar Tool Holder / NT 40 Tool Holder 32mm Diameter
Ⅰ. Features And Advantages
1. Internal oil groove, giving nice rigidity and durability.
2. Quill rollers, powerful clamping force, cutter doesn't drop.
3. Super subzero treatment, eliminating austenite vestigital, deformation.
4. High performance and cost effective
5. Long working life and High precesion.
Ⅱ. Technical Parametes
|
Products name |
NT40 Power Tool Holder |
|
Spindle type |
NT/DIN2080/ST |
|
Clamp range |
6,8,10,12,16,20,25 |
| 1/4,5/16,3/8,1/2,5/8,3/4,1'' | |
|
Running accuracy |
0.003mm |
|
Machining type |
Rough and semi-rough machining |
|
Material |
20Crnimo |
|
Hardness |
HRC58~60° |
|
Taper tolerance |
AT3 |
Ⅲ. Product Introduction
Standard Product List
|
Model number |
D |
D1 |
L1 |
Collet |
Spanner |
Weight |
|
BT30-C20-75 |
20 |
53 |
75 |
C20 |
HS-C20 |
1.80 |
|
BT30-C25-80 |
25 |
62 |
80 |
C25 |
HS-C25 |
1.95 |
|
BT30-C32-100 |
32 |
70 |
100 |
C32 |
HS-C32 |
2.15 |
|
BT40-C20-80 |
20 |
53 |
80 |
C20 |
HS-C20 |
2.40 |
|
BT40-C25-80 |
25 |
62 |
80 |
C25 |
HS-C25 |
2.55 |
|
BT40-C32-105 |
32 |
70 |
105 |
C32 |
HS-C32 |
2.50 |
|
BT40-C32-135 |
135 |
2.80 |
||||
|
BT40-C32-165 |
165 |
3.50 |
||||
|
BT50-C20-105 |
20 |
53 |
105 |
C20 |
HS-C20 |
4.50 |
|
BT50-C25-105 |
25 |
62 |
105 |
C25 |
HS-C25 |
4.60 |
|
BT50-C32-105 |
32 |
70 |
105 |
C32 |
HS-C32 |
4.60 |
|
BT50-C32-135 |
135 |
5.60 |
||||
|
BT50-C32-165 |
165 |
6.40 |
||||
|
BT50-C42-115 |
45 |
92 |
115 |
C42 |
HS-C42 |
6.00 |
|
BT50-C42-135 |
135 |
7.20 |
||||
|
BT50-C42-165 |
165 |
8.60 |
Ⅳ. Overview for HIPPSC Products
1. NT/DIN2080/ST Spindle Power Tool Holde.
2. ER/SK/MINI/ Tool Holder/Shank/Arbor.
3. Shrink-Fit /Heat Expansion Tool Holder.
4. Threaded/Screw connected Tool Holder.
5. Pull type /Side Lock Tool Arbors.
6. Mirror Finishing Type Tool Holder.
7. Morse Taper/Tapering Tool Shank.
8. Face Milling Adapters/Chuck.
9. Torque Tap/Tapping/Drilling Chuck.
10. ER Nuts/Pull stud/Spindle taper cleaner/ spindle test bar.
11. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Edge finder/Tool Holder Tightening Fixture/Table.
15. Inserts/Milling/BoringInserts/PCBN/PCD Inserts/Tool bit.
16. Quick change Ball nose/Triangle/Pentagon/Horseshoe type tool bit.
17. Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.
18. BT/BBT/SK/CAT/HSK/ISO/NT/NBT Arbor for CNC Machine.
Ⅷ. Manufacturing and Sales Service
1. All Production with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM, Produce To What Customer Wants and Requires.
3. One-Stop Considerate and Satisfying and Consultation Service.
