Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | HSK100A | OEM/ODM: | Yes |
|---|---|---|---|
| Product Type: | Power Tool Holder | Runout: | 0.003mm |
| Balance: | Available | Cutting Type: | Turing/Milling/Boring/Drilling |
| Material: | Special Steel | Application: | Heavy Cutting And Semi-Precision Finishing |
| Highlight: | turning tool holders,milling machine tool holders |
||

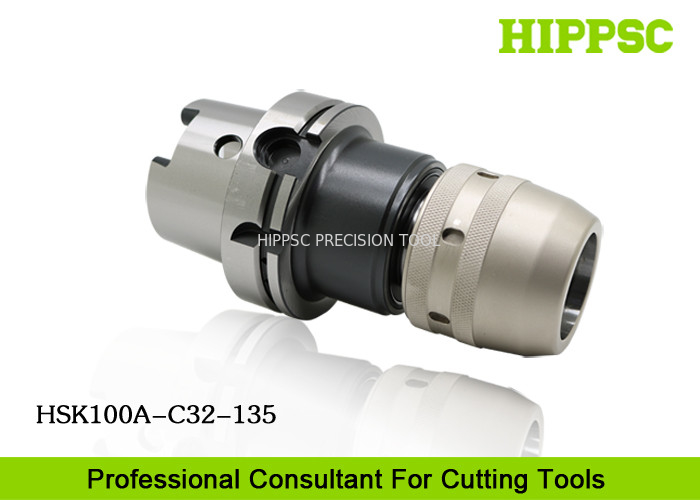

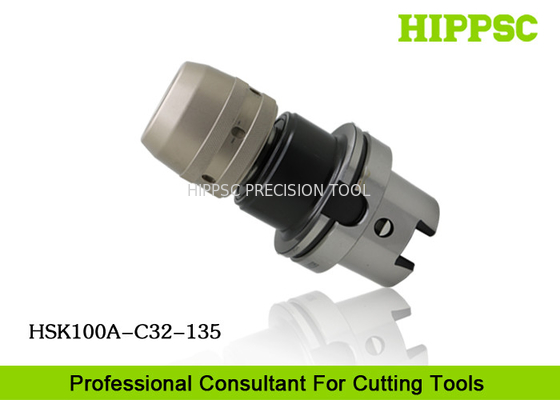

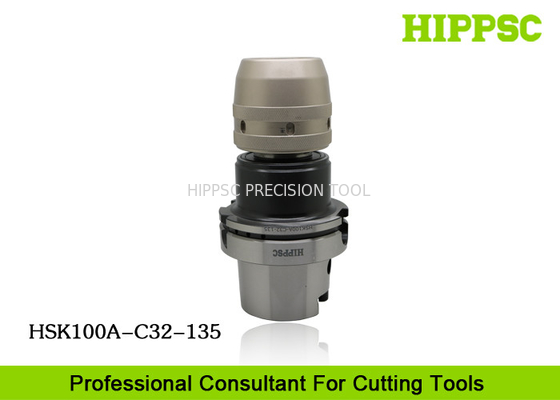

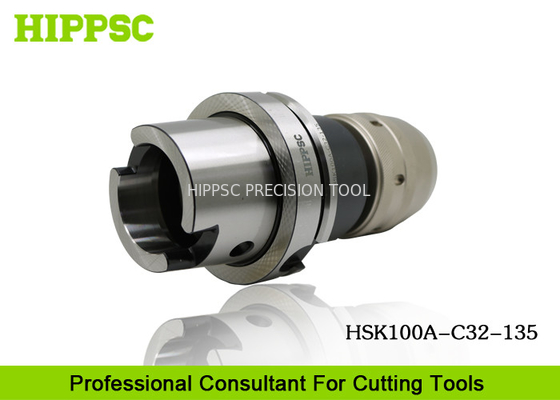

Special Steel CNC Lathe Cutting Tool Holder Abor HSK100A - C32 - 135
Ⅰ. Products Features
1. The arbor is with central oil groove, this make high rigidity and durability.
2. The quill rollers improves clamping force to prevent cutters from dropping.
3. Super subzero treatment to eliminate austenite vestigital, avoiding deformation.
4. This Arbor helps you reduce cost with nice performance.
5. Long working life and long precesion.
Ⅱ. Technical Parametes
|
Product Name |
HSK100A Power tool holder |
|
Spindle Type |
HSK100A |
|
Clamping Range |
6/8/10/12/16/20/25mm Metric |
| 1/4, 5/16, 3/8. 1/2, 5/8, 3/4, 1'', 1-1/4'' Inch | |
|
Runout |
0.003mm |
|
Processing Type |
Rough and semi-rough machining |
|
Product Material |
20CrNiMo |
|
Hardness |
HRC58°~60° |
Ⅲ. Product Introduction
Products Catalogue
| Model No. | d | C | L1 | L | Collet | Spanner |
| HSK50A-C25-110 | 25 | 62 | 74.5 | 110 | C25 | HS-C25 |
| HSK63A-C20-100 | 20 | 53 | 66.5 | 100 | C20 | HS-C20 |
| HSK63A-C25-10 | 25 | 62 | 74.5 | 110 | C25 | HS-C25 |
| HSK63A-C32-105 | 32 | 70 | 80.5 | 105 | C32 | HS-C32 |
| HSK100A-C20-105 | 20 | 53 | 66.5 | 105 | C20 | HS-C20 |
| HSK100A-C250-110 | 25 | 62 | 74.5 | 110 | C25 | HS-C25 |
| HSK100A-C32-135 | 32 | 70 | 80.5 | 135 | C32 | HS-C32 |
| HSK100A-C42-140 | 42 | 90 | —— | 140 | C42 | HS-C42 |
Ⅳ. Overview for HIPPSC Products
1. HSK100A Abor with straght collet.
2. ER/SK/MINI/Tool Holder/Shank/Arbor for CNC High Speed Processing.
3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Mirror Finishing Type Tool Holders/Arbors/Shanks.
7. Morse Taper/Tapering Tool Holders/Arbors/Shanks.
8. Face Milling Adapters/Cutter And Inserts/Blades.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping/Drilling Chuck.
11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
12. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.
14. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
15. Edge finder/Tool Holder Locking Fixture.
16. Inserts/Milling/BoringInserts/PCBN/PCD Blade/Cutters/Tool bit.
17. Quick change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.
19. BT/BBT/SK/CAT/HSK/ISO/NT CNC Machine Arbor.
