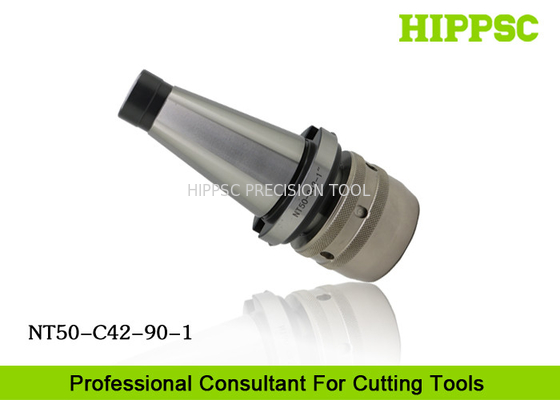

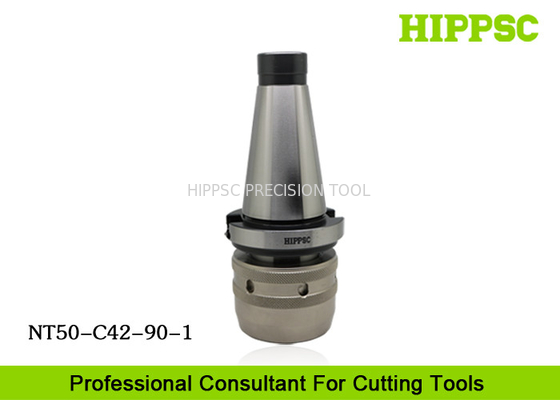

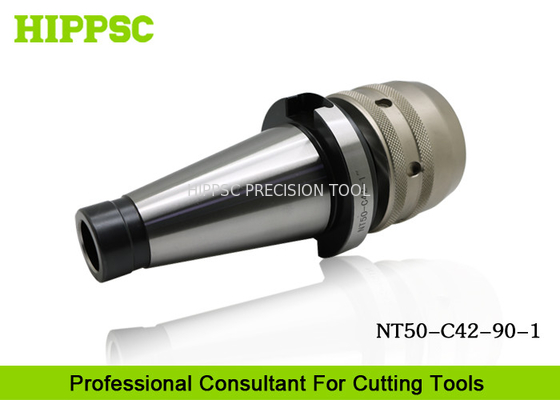

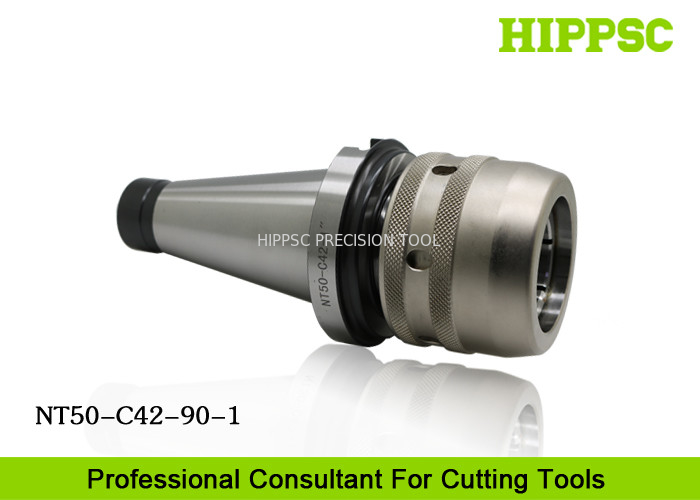

Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing

Large Image : Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	NT50-C42-90-1''

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Product Type:	Power Tool Holder	Spindle Type:	NT50
Runout Accuracy:	0.003mm	Balance:	Available
Application:	Rough And Semi-Finishing	Material:	Special Steel
Highlight:	boring bar tool holder , turning tool holders

Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing

Ⅰ. Features And Advantages

1. Super rigidity and durability, with internal oil groove.

2. Internal quill rollers, clamping tools tightly from dropping.

3. Eliminating austenite vestigital Super subzero treatment, no deformation.

4. High performance and cost effective.
5. Durable long life.

Ⅱ. Technical Parametes

Product Name	Power tool holder
Spindle Type	NT50/DIN2080/ST
Clamping Range	6/8/10/12/16/20/25/32 mm Metric
Clamping Range	1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1'', 1-1/4'' Inch
Runout	0.003mm
Processing Type	Rough and semi-rough machining
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CAD

Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing

Standard Items

Model Number	d1	D1	d1	L1	DRAW BOLT		Collet	Spanner
Model Number	d1	D1	d1	L1	INCH	METRIC	Collet	Spanner
NT30-C20-60	20	53	6-20	60	1/2"-12UNC	M12*1.75	C20	HS-C20
NT40-32-70	32	70	6-32	70	5/8"-11UNC	M16*2.0	C32	HS-C32
NT50-C32-90	32	70	6-32	90	1"-8UNC	M24*3.0	C32	HS-C32
NT50-C42-90	42	92	6-42	90	1"-8UNC	M24*3.0	C42	HS-C42
NT60-C42-120	42	95	6-42	120	11/4"-7UNC	M30*3.5	C42	HS-C42

Collets

Model No.	CLAMP RANGE	D	L
C20	C20-6,8,10,12,16	26	55.1
C25	C25-6,8,10,12,16,20	30	63
C32	C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1"	38	70
C42	C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4"	48	75

Ⅳ. Overview for HIPPSC Products

1. NT Spindle Power Tool Holder Use for CNC Turning.

2. ER/SK/ Collet Tool Holdes.

3. Heat Shrinking/Expansion Tool Holders.

4. Threaded/Screw-in/Thread Screw Tool Holders.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Mirror Finishing Type Tool Holders/Arbors/Shanks.

7. Morse Taper/Tapering Tool Holders/Arbors/Shanks.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. Torque Floating Tap/Tapping/Drilling Chuck.

10. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Tester.

11. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Edge finder/Tool Holder Tightening Fixture/Table.

15. Inserts/Milling/BoringInserts/PCBN/PCD Blade/Cutters/

16. Quick change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

17. Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.

18. BT/BBT/SK/CAT/HSK/ISO/NT/NBT/DIN Abor for CNC Machining Center

Ⅴ. Shipmen

All below transportation ways are available

Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

If there is any special requirements of packing needed, it is available to

be negotiated.

Ⅶ. Warehouse

Abundant Stocks of Standard Products Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly.
IQC and OQC Operater Inspect Products' Quality and Specification.
Using Professional Equipment and Gauge To Measure Technical Parameters.
We can accept that customer send a third party to do inspection at site before shipment.

Ⅷ. Manufacturing and Sales Service

1.   All Production with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM, All Products Are produced On Customer's Requirements.
3.   One-Stop Manufacturing and Sales Service, 12 Months Warranty And Free Repair Service

Are Provided.
