BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting

China BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting supplier
BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting supplier BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting supplier BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting supplier BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting supplier

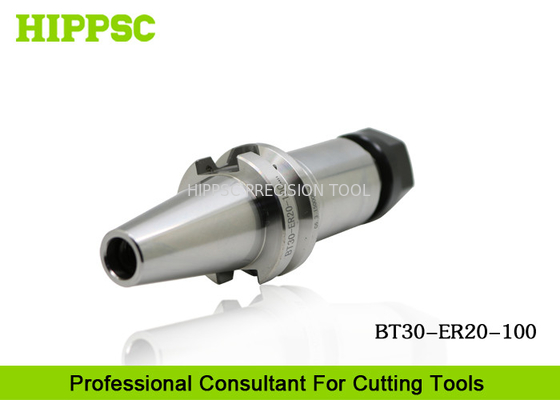

Large Image :  BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT30-ER20-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: BT30 Customized Service: Available
Product Type: ER Tool Holder Runout: 0.003mm
Cutting Type: EndMilling, Reaming, Drilling Material: 20CrNiMo
Application: Precision Finishing
Highlight:

cnc lathe tool holder

,

drill Tool Holder

BT 30 Spring Collet ER Tool Holder With 20 mm Clamp CNC Cutting



Ⅰ​. Features



  1. Swiss type non-eccentric clamp nut.
  2. Run out < 0.003mm.
  3. The Taper tolerance is AT3.
  4. Made from material of alloy steel.
  5. Use for milling and drilling
  6. Balancing available, can be customized based on G6.3
  7. Good rigidity and chip discharge.
  8. Good Surface finishing quality , increased feed rate.
  9. Good heat resistance, can use for high speed processing.
  10. Coating can be made on customer's requirement.
  11. High wear-resistance.



Ⅱ. Technical Parametes ​




Product Name

ER Collet Tool Holder

Spindle Type

BT30

Clamping Range

2mm-13mm

Beat accuracy

0.003mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°

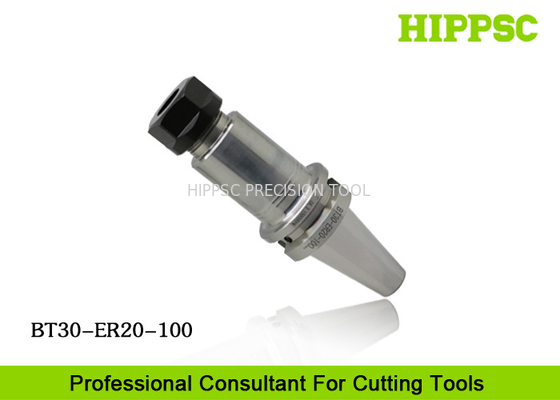

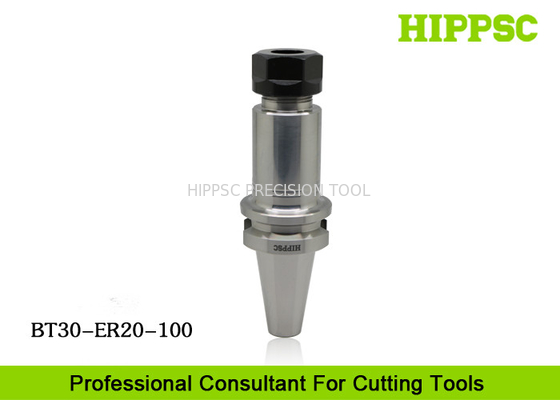

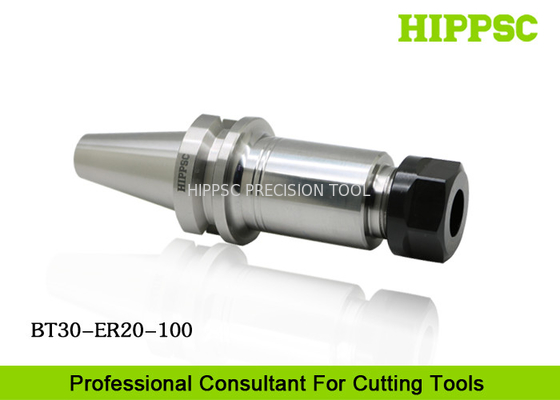

Ⅲ. Product Show





BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting



BT 30 Spring Collet ER Tool Holder With 20 mm Clamping Diameter For CNC Cutting

Available Standard Items

Model Number  d
 Diameter		 D1 D2 D3 L1 L2 M Nut Collet Spanner Type
BT30-ER16-70 3～10 28 28 46 70 48 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT30-ER16-100 3～10 28 28 46 100 78 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT30-ER20-70 3～13 34 34 46 70 48 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT30-ER20-100 3～13 34 34 46 100 78 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT30-ER25-70 3～16 42 40 46 70 48 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT30-ER25-100 3～16 42 40 46 100 78 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT30-ER32-70 3～20 50 48 46 70 48 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT30-ER32-100 3～20 50 48 46 100 78 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT40-ER16-70 3～10 28 28 63 70 43 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT40-ER16-100 3～10 28 28 63 100 73 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT40-ER16-150 3～10 28 28 63 150 123 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT40-ER20-70 3～13 34 34 63 70 43 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT40-ER20-100 3～13 34 34 63 100 73 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT40-ER20-150 3～13 34 34 63 150 123 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT40-ER25-70 3～16 42 40 63 70 43 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT40-ER25-100 3～16 42 40 63 100 73 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT40-ER25-150 3～16 42 40 63 150 123 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT40-ER32-70 3～20 50 48 63 70 43 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT40-ER32-100 3～20 50 48 63 100 73 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT40-ER32-150 3～20 50 48 63 150 123 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT40-ER40-100 6～26 63 58 63 100 73 M50*1.5 HN-ER40UM ER40 HS-ER40UM Fig2
BT40-ER40-150 6～26 63 58 63 150 123 M50*1.5 HN-ER40UM ER40 HS-ER40UM Fig2
BT50-ER16-100 3～10 28 28 100 100 62 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT50-ER16-150 3～10 28 28 100 150 112 M22*1.5 HN-ER16A ER16 HS-ER16A Fig1
BT50-ER20-100 3～13 34 34 100 100 62 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT50-ER20-150 3～13 34 34 100 150 112 M25*1.5 HN-ER20A ER20 HS-ER20A Fig1
BT50-ER25-100 3～16 42 40 100 100 62 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT50-ER25-150 3～16 42 40 100 150 112 M32*1.5 HN-ER25UM ER25 HS-ER25UM Fig2
BT50-ER32-100 3～20 50 50 100 100 62 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT50-ER32-150 3～20 50 50 100 150 112 M40*1.5 HN-ER32UM ER32 HS-ER32UM Fig2
BT50-ER40-100 6～26 63 60 100 100 62 M50*1.5 HN-ER40UM ER40 HS-ER40UM Fig2
BT50-ER40-150 6～26 63 60 100 150 112 M50*1.5 HN-ER40UM ER40 HS-ER40UM Fig2




Ⅳ. Products Overview

  1. BT30 ER Collet Spring Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​

By Sea; By Air; By Train/Truck.


TNT, EMS, DHL, UPS, FedEx.



Ⅵ. Packing



PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.



Ⅶ. Warehouse



  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
