Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | BT50 | OEM/ODM: | Yes |
|---|---|---|---|
| Product Type: | Power Tool Holder | Runout: | 0.003mm |
| Balance: | Available | Cutting Type: | Turing, Milling, Boring, Drilling |
| Material: | Special Steel | Machining Type: | Heavy Cutting And Semi-Precision Finishing |
| Highlight: | boring bar tool holder,milling machine tool holders |
||

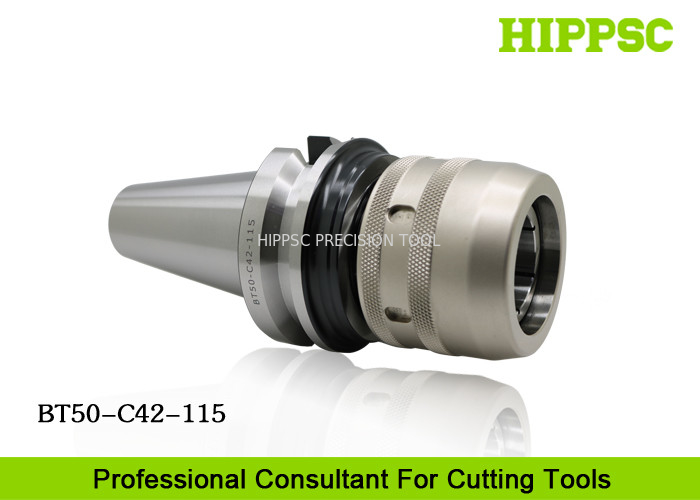

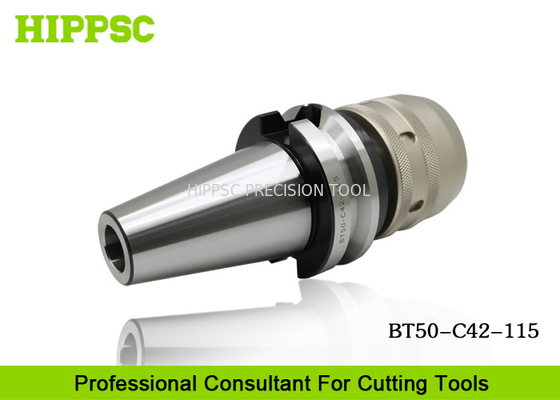

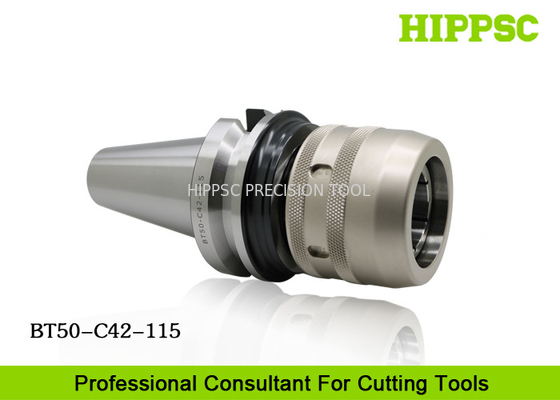

CNC Cutting Power Tool Holder High Precesion BT50 - C42 - 115
Ⅰ. Features And Advantages
1. Internal oil groove improves tool holder's rigidity well.
2. More quill rollers than other products, and higher Gripping force, stop cutter from dropping.
3. Super subzero treatment to clear austenite vestigital, no deformation happens.
4. Suitable for heavy duty maching, rough machining.
5. With straight shank collet, hook wrench as accessory.
Ⅱ. Technical Parametes
|
Product Name |
Power Tool Holder |
|
Spindle Type |
BT50 |
|
Clamping Range |
/6/8/10/12/16/20/25/32mm, 1/4, 5/16, 3/8,1/2,5/8,3/4,1'', 1-1/4''. |
|
Runout |
0.003mm |
|
Processing Type |
Rough and semi-rough machining |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
Price List
|
Model number |
D |
D1 |
L1 |
Collet |
Spanner |
Weight |
|
BT30-C20-75 |
20 |
53 |
75 |
C20 |
HS-C20 |
1.80 |
|
BT30-C25-80 |
25 |
62 |
80 |
C25 |
HS-C25 |
1.95 |
|
BT30-C32-100 |
32 |
70 |
100 |
C32 |
HS-C32 |
2.15 |
|
BT40-C20-80 |
20 |
53 |
80 |
C20 |
HS-C20 |
2.40 |
|
BT40-C25-80 |
25 |
62 |
80 |
C25 |
HS-C25 |
2.55 |
|
BT40-C32-105 |
32 |
70 |
105 |
C32 |
HS-C32 |
2.50 |
|
BT40-C32-135 |
135 |
2.80 |
||||
|
BT40-C32-165 |
165 |
3.50 |
||||
|
BT50-C20-105 |
20 |
53 |
105 |
C20 |
HS-C20 |
4.50 |
|
BT50-C25-105 |
25 |
62 |
105 |
C25 |
HS-C25 |
4.60 |
|
BT50-C32-105 |
32 |
70 |
105 |
C32 |
HS-C32 |
4.60 |
|
BT50-C32-135 |
135 |
5.60 |
||||
|
BT50-C32-165 |
165 |
6.40 |
||||
|
BT50-C42-115 |
45 |
92 |
115 |
C42 |
HS-C42 |
6.00 |
|
BT50-C42-135 |
135 |
7.20 |
||||
|
BT50-C42-165 |
165 |
8.60 |
Collets
| Model No. | Size | D | L | ||||
| C20 | C20-6,8,10,12,16 | 26 | 55.1 | ||||
| C25 | C25-6,8,10,12,16,20 | 30 | 63 | ||||
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 | ||||
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 | ||||
Ⅳ. Overview for HIPPSC Products
1. BT50 Power Tool Holder with C type Collet.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Pull type/Side Lock Tool Holders/Arbors/Shanks.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bits.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bits.
18. Cutter head/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Inserts.
