High Precision Cutting Tools ER CNC Collet For Clamping Milling Cutter And Drill

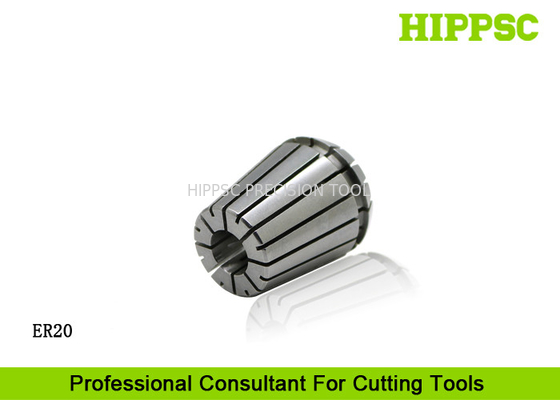

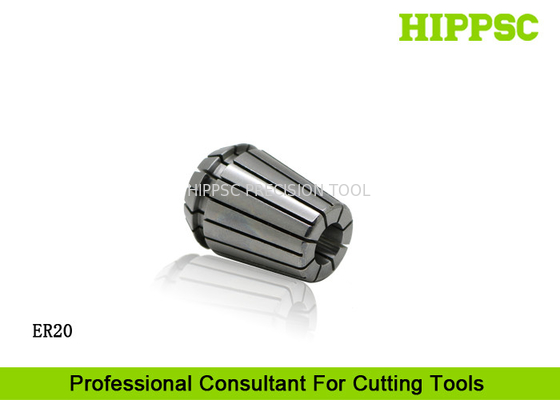

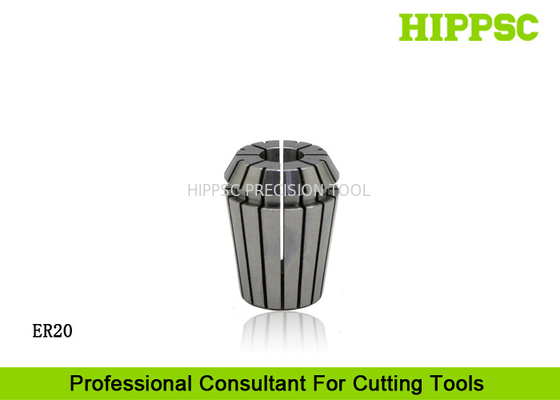

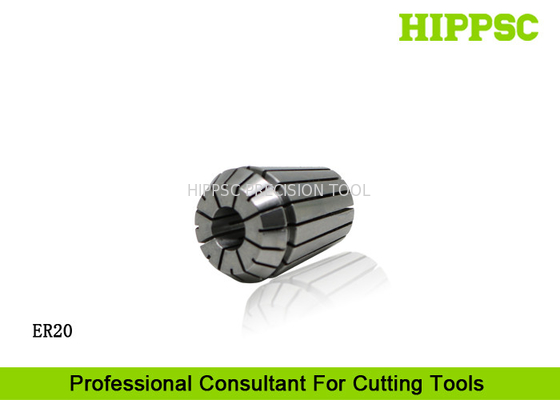

Large Image : High Precision Cutting Tools ER CNC Collet For Clamping Milling Cutter And Drill

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	ER20 - 8N

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	50000 pcs Per Month

Contact Now

Detailed Product Description

Material:	65 Spring Steel	Angle:	Sigle Side 8 Dgree
Shrink Range:	1mm	Precesion:	0.008mm
Highlight:	milling machine collets , hydraulic collet chuck

Material:

65 Spring Steel

Angle:

Sigle Side 8 Dgree

Shrink Range:

1mm

Precesion:

0.008mm

Highlight:

milling machine collets

hydraulic collet chuck

High Precision Cutting Tools ER CNC Collet For Clamping Milling Cutter And Drill

Ⅰ. Features And Advantages

Runout:≦0.005mm.
Carbon depth:0.8~1.0mm.
Roundness:<0.8μm.
Surface finish quality:Ra0.4μ.
Elastic shrinkage by 0.5mm when bore diameter <30mm.
Elastic shrinkage by 0.5mm when bore diameter >30mm.
Can clamp drilling, tapping, Milling cutter and reamer.
Tolerance of Clamped cutting tools within h7.

Ⅱ. Technical Parametes

Product Name	CNC ER Collet
Spindle Type	ER20
Clamping Range	3~12 mm
Runout	0.005mm
Clamping tools	Drilling, tapping, milling cutter, reamer
Product Material	65Mn
Hardness	HRC42°~44°
Taper Type	Unilateral 8°

Ⅲ. Product Introduction

High Precision Cutting Tools ER CNC Collet For Clamping Milling Cutter And Drill

Available Items

Item Name	Model No.	Chucking Dia
ER11	ER11-2	1.5-2.0
	-2.5	2.0-2.5
	-3	2.5-3.0
	-3.5	3.0-3.5
	-4	3.5-4.0
	-4.5	4.0-4.5
	-5	4.5-5.0
	-5.5	5.0-5.5
	-6	5.5-6.0
	-6.5	6.0-6.5
	-7	6.5-7.0
ER16	ER16-3	2.0-3.0
	-4	3.0-4.0
	-5	4.0-5.0
	-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
ER20	ER20-2	1.0-2.0
	-3	2.0-3.0
	-4	3.0-4.0
	-5	4.0-5.0
	-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
	-11	10.0-11.0
	-12	11.0-12.0
	-13	12.0-13.0

ER25	ER25-3	2.0-3.0
	-4	3.0-4.0
	-5	4.0-5.0
	-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
	-11	10.0-11.0
	-12	11.0-12.0
	-13	12.0-13.0
	-14	13.0-14.0
	-15	14.0-15.0
	-16	15.0-16.0
ER32	ER32-3	2.0-3.0
	-4	3.0-4.0
	-5	4.0-5.0
	-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
	-11	10.0-11.0
	-12	11.0-12.0
	-13	12.0-13.0
	-14	13.0-14.0
	-15	14.0-15.0
	-16	15.0-16.0
	-17	16.0-17.0
	-18	17.0-18.0
	-19	18.0-19.0
	-20	19.0-20.0

ER40	ER40-6	5.0-6.0
	-7	6.0-7.0
	-8	7.0-8.0
	-9	8.0-9.0
	-10	9.0-10.0
	-11	10.0-11.0
	-12	11.0-12.0
	-13	12.0-13.0
	-14	13.0-14.0
	-15	14.0-15.0
	-16	15.0-16.0
	-17	16.0-17.0
	-18	17.0-18.0
	-19	18.0-19.0
	-20	19.0-20.0
	-21	20.0-21.0
	-22	21.0-22.0
	-23	22.0-23.0
	-24	23.0-24.0
	-25	24.0-25.0
	-26	25.0-26.0

Ⅳ. Overview for HIPPSC Products

CNC ER Collet For BT/SK/HSK/CAT/NT/NBT/BBT/ISO Abors.

High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

Back Lock/Side Lock Tool Holders/Arbors/Shanks.

Tool Holders/Arbors/Shanks for Mirror Finishing.

Morse Taper/Tapering Tool Holders/Shanks.

Face Milling Adapters/Tool Holders/Arbors/Shanks.

Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

Torque Floating Tap/Tapping Chuck and Collet.

ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.

ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

Edge finder/Tool Holder Tightening Fixture/Table.

Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

Cutterhead/ Cutter heard/bar, face milling cutter.

BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

Manufacturing with Professional and Precise Equipments Under Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
