Product Details:
Payment & Shipping Terms:
|
| Type: | SK16-4 | Applicaiton: | Tool Holder Of BT, SK, HSK, Morse Tap, CAT, NBT, NT |
|---|---|---|---|
| Product Type: | SK Spring Collet | Runout: | ≦0.005mm At 4X D |
| Material: | Special Steel | ||
| Highlight: | milling machine collets,hydraulic collet chuck |
||

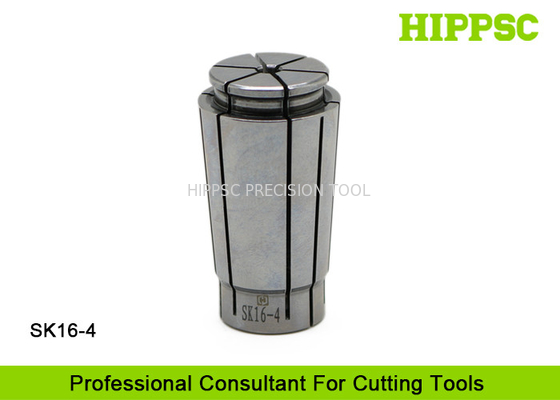

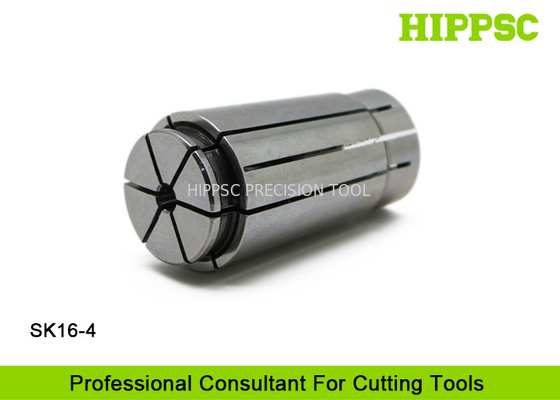

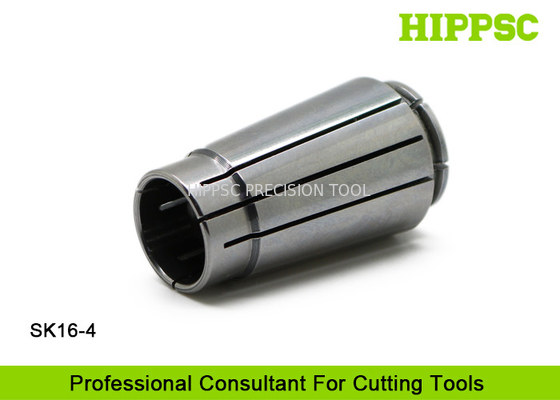

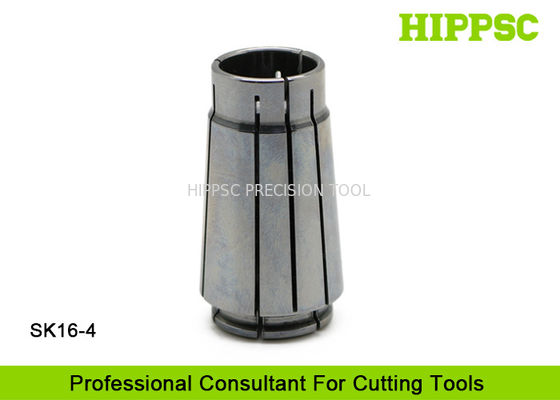

SK16 High Accuracy CNC Quality SK Collet For Clamping Straight Shank Cutting Tools
Ⅰ. Features And Advantages
Ⅱ. Technical Parametes
|
Product Name |
SK Collet |
|
Spindle Type |
SK16-4 |
|
Runout |
0.005mm |
|
Clamping tools |
Drilling, tapping, milling cutter, reamer |
|
Product Material |
65Mn |
|
Hardness |
HRC42°~44° |
| Taper Type | Unilateral 4° |
Ⅲ. Product Introduction
SK16 Collet
| Item Name | Model Number | Diameter |
|
SK16
Collet |
SK16-3 | 2.75-3.0 |
| -3.5 | 3.0-3.5 | |
| -4 | 3.5-4.0 | |
| -4.5 | 4.0-4.5 | |
| -5 | 4.5-5.0 | |
| -5.5 | 5.0-5.5 | |
| -6 | 5.5-6.0 | |
| -6.5 | 6.0-6.5 | |
| -7 | 6.5-7.0 | |
| -7.5 | 7.0-7.5 | |
| -8 | 7.5-8.0 | |
| -8.5 | 8.0-8.5 | |
| -9 | 8.5-9.0 | |
| -9.5 | 9.0-9.5 | |
| -10 | 9.5-10.0 | |
| -10.5 | 10.0-10.5 | |
| -11 | 10.5-11.0 | |
| -11.5 | 11.0-11.5 | |
| -12 | 11.5-12.0 | |
| -12.5 | 12.0-12.5 | |
| -13 | 12.5-13.0 | |
| -13.5 | 13.0-13.5 | |
| -14 | 13.5-14.0 | |
| -14.5 | 14.0-14.5 | |
| -15 | 14.5-15.0 | |
| -15.5 | 15.0-15.5 | |
| -16 | 15.5-16.0 |
Ⅳ. Overview for HIPPSC Products
CNC SK Collet For BT/SK/HSK/CAT/NT/NBT/BBT/ISO Tool Abor.
High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.
