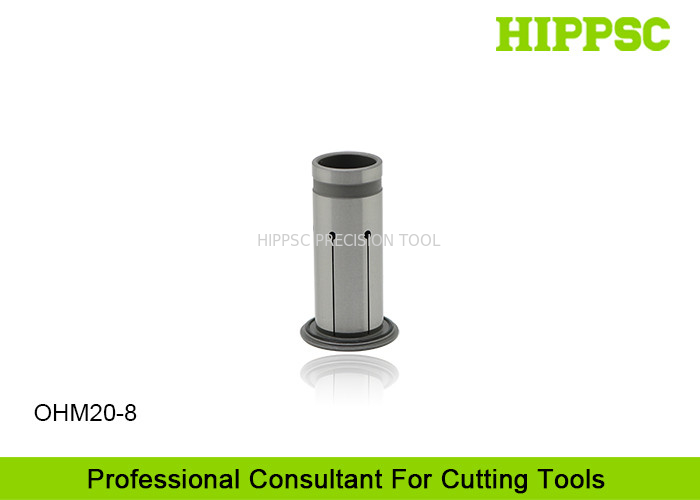

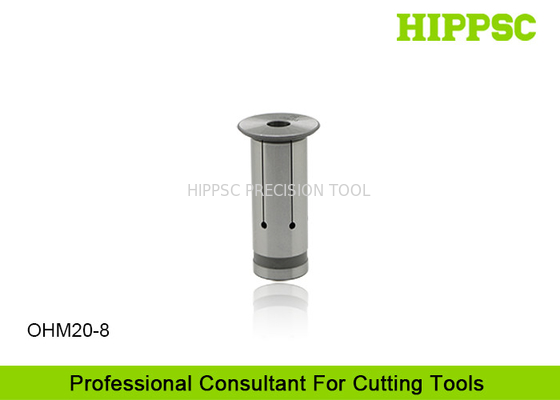

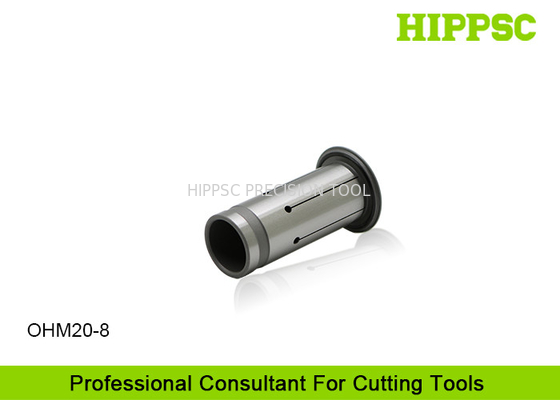

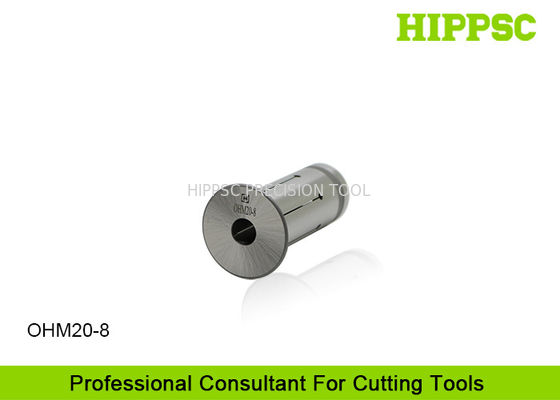

OHM20 - 8 Straght Shank CNC Collet Central Through Water For Hydraulic Holder

Large Image : OHM20 - 8 Straght Shank CNC Collet Central Through Water For Hydraulic Holder

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	OHM20-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	50000 pcs Per Month

Contact Now

Detailed Product Description

Applicaiton:	Hydraulic Chucks With Central Through Water	Product Type:	Hydraulic Expansion Collet
Runout:	< 0.003mm	Material:	Special Steel
Highlight:	er collet chuck , hydraulic collet chuck

Applicaiton:

Hydraulic Chucks With Central Through Water

Product Type:

Hydraulic Expansion Collet

Runout:

< 0.003mm

Material:

Special Steel

Highlight:

er collet chuck

hydraulic collet chuck

OHM20 - 8 Straght Shank CNC Collet Central Through Water For Hydraulic Holder

Ⅰ. Features And Advantages

Maximum running accuracy 3μm at 4x d when assembled.
Hydraulic system provides Superior clamping force.
Straight shank design, small deviation.
Milling and precision machining.
With Central Through Water Available.

Ⅱ. Technical Parametes

Product Name	OHM Hydraulic Collet
Spindle Type	OHM20-8
Runout	0.003mm
Clamping tools	Milling and precision machining
Product Material	65Mn
Hardness	HRC42°~44°
Taper Type	Straight Shank

Ⅲ. Product Introduction

OHM20 - 8 Straght Shank CNC Collet Central Through Water For Hydraulic Holder

OHM Hydraulic Expansion CNC Collet

Part No.	D1	D2	L1	L2	d
OHM12-3	12	19	45	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
OHM20-3	20	29	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
-17					17
-18					18
OHM32-8	32	39	60.5	3	8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

CNC Collet OHM20-8 Hydraulic Expansion Type With Central Through Water.
High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

Manufacturing with Professional and Precise Equipments Under Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
