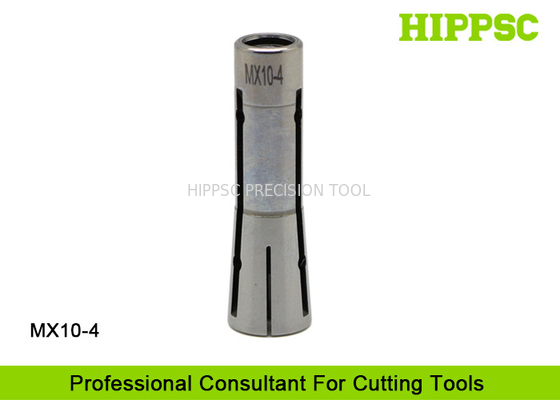

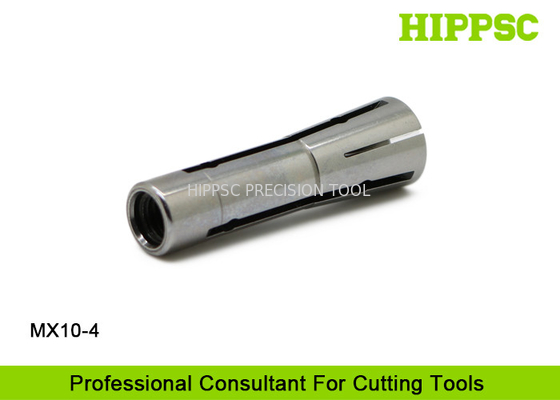

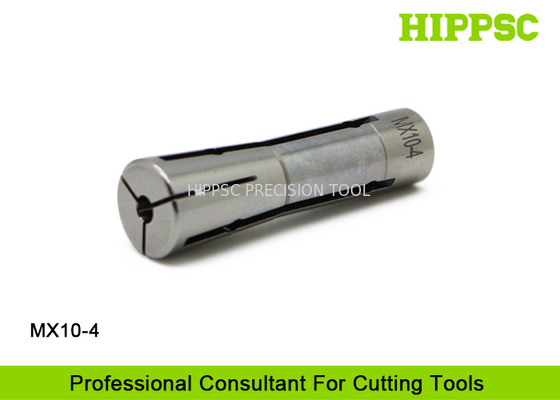

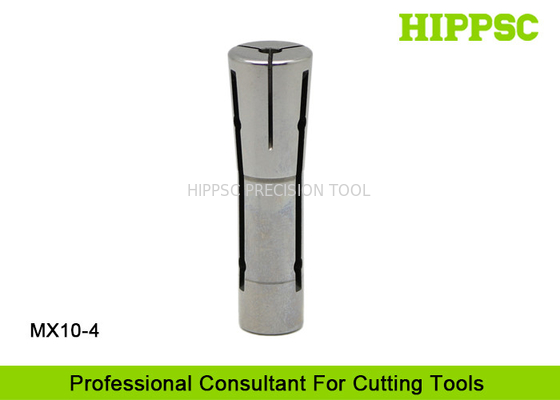

MX10 - 4 Slim Collet For CNC Pull Collet Chuck Tool Holder Clamp Endmill

Large Image : MX10 - 4 Slim Collet For CNC Pull Collet Chuck Tool Holder Clamp Endmill

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	MX10-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	50000 pcs Per Month

Contact Now

Detailed Product Description

Applicaiton:	Slim Tool Holder Clamping Endmill	Product Type:	MX Slim Type Collet
Runout:	< 0.003mm	Material:	Special Steel
Highlight:	er collet chuck , hydraulic collet chuck

Applicaiton:

Slim Tool Holder Clamping Endmill

Product Type:

MX Slim Type Collet

Runout:

< 0.003mm

Material:

Special Steel

Highlight:

er collet chuck

hydraulic collet chuck

MX10 - 4 Slim Collet For CNC Pull Collet Chuck Tool Holder Clamp Endmill

Ⅰ. Features And Advantages

Maximum Run-out 3μm at 4x d.
Work on endmill, High clamping force.
Giving better performance if use torque wrench to fasten.
Tolerance of Clamped cutting tools is within h7.
High regidity and stabililty by without screw nuts.

Ⅱ. Technical Parametes

Product Name	MX Slim Type Collet
Spindle Type	MX10-4
Runout	0.003mm
Clamping tools	Drilling, tapping, milling cutter, reamer
Product Material	65Mn
Hardness	HRC42°~44°
Taper Type	Slim

Ⅲ. Product Introduction

MX10 - 4 Slim Collet For CNC Pull Collet Chuck Tool Holder Clamp Endmill

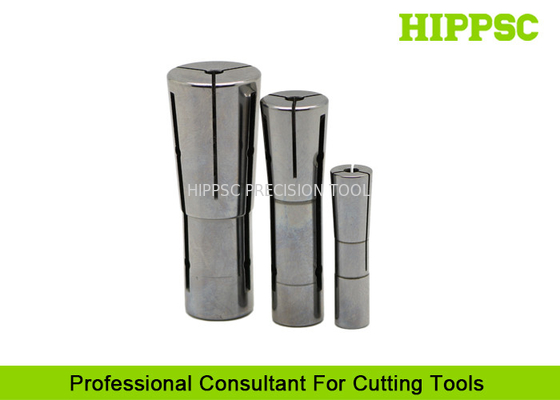

Slim Type MX6 Collet

Item Name	Part No.	STANDARD	Run-out	D	L
MX6	MX6-2/3/4/5/6/3.175	0.005	0.003	9.6	36
MX8	MX8-3/4/5/6/8	0.005	0.003	15	45
MX10	MX10-3/4/5/6/8/10	0.005	0.003	16	52
MX12	MX12-3/4/5/6/8/10/12	0.005	0.003	22	57

Ⅳ. Overview for HIPPSC Products

CNC Slim Type MX10-4 Collet.

High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

Back Lock/Side Lock Tool Holders/Arbors/Shanks.

Tool Holders/Arbors/Shanks for Mirror Finishing.

Morse Taper/Tapering Tool Holders/Shanks.

Face Milling Adapters/Tool Holders/Arbors/Shanks.

Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

Torque Floating Tap/Tapping Chuck and Collet.

ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.

ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

Edge finder/Tool Holder Tightening Fixture/Table.

Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

Cutterhead/ Cutter heard/bar, face milling cutter.

BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

Manufacturing with Professional and Precise Equipments Under Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
