Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | BT, SK, HSK, Morse Tap, CAT, NT | Product Type: | Straight Power Collet |
|---|---|---|---|
| Runout: | < 0.005mm | Material: | SKD61 |
| Highlight: | er collet chuck,hydraulic collet chuck |
||

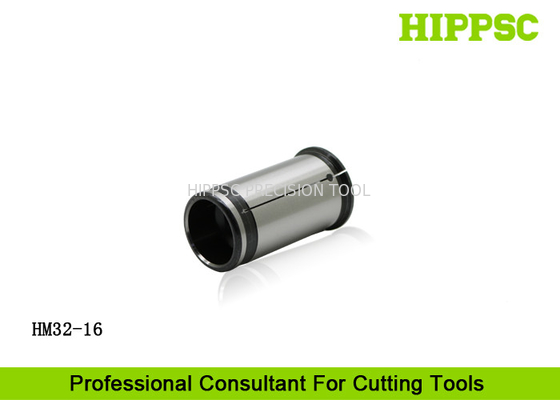

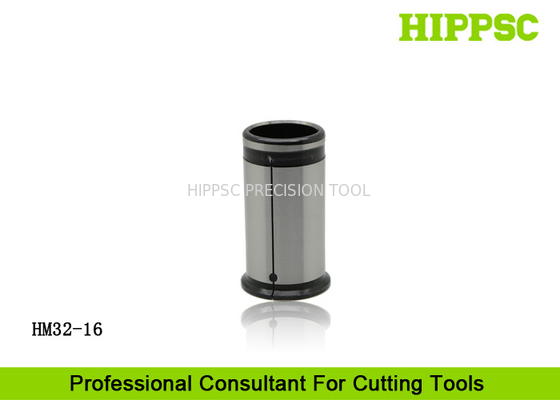

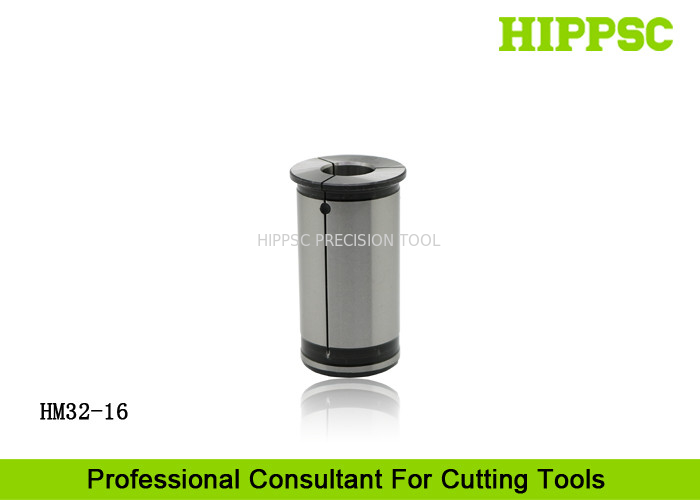

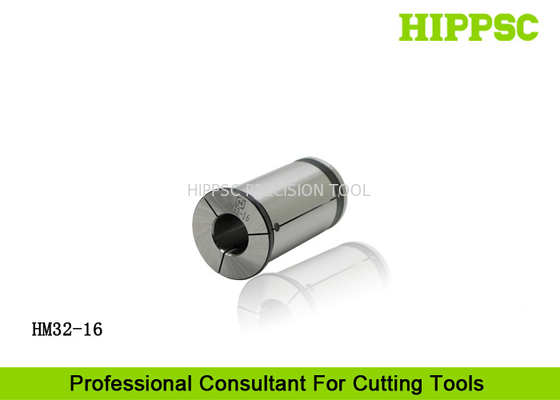

HM32 16mm Diameter CNC Hydraulic Collet Rustproof Available 0.005mm Accuracy
Ⅰ. Features And Advantages
Ⅱ. Technical Parametes
|
Product Name |
Straight shank Power Collet |
|
Clamping Range |
16mm |
|
Runout |
< 0.005mm |
|
Clamping Tools |
Drilling, tapping, milling cutter, reamer. |
|
Product Material |
SKD61 |
|
Hardness |
HRC42°~45° |
| Taper Type | Straight |
Ⅲ. Product Introduction
Order Available Items
|
Part Number |
D1 |
D2 |
L1 |
L2 |
d |
|
HM-12-3 |
12 |
16 |
44.5 |
2 |
3 |
|
-4 |
4 |
||||
|
-5 |
5 |
||||
|
-6 |
6 |
||||
|
-7 |
7 |
||||
|
-8 |
8 |
||||
|
HM20-3 |
20 |
24 |
50.5 |
2 |
3 |
|
-4 |
4 |
||||
|
-5 |
5 |
||||
|
-6 |
6 |
||||
|
-7 |
7 |
||||
|
-8 |
8 |
||||
|
-9 |
9 |
||||
|
-10 |
10 |
||||
|
-11 |
11 |
||||
|
-12 |
12 |
||||
|
-13 |
13 |
||||
|
-14 |
14 |
||||
|
-15 |
15 |
||||
|
-16 |
16 |
||||
|
HM32-6 |
32 |
36 |
60.5 |
3 |
6 |
|
-8 |
8 |
||||
|
-10 |
10 |
||||
|
-12 |
12 |
||||
|
-14 |
14 |
||||
|
-16 |
16 |
||||
|
-18 |
18 |
||||
|
-20 |
20 |
||||
|
-25 |
25 |
